Features
Install like any other light bulb. Easy to setup and enjoy the extended Wi-Fi
signal coverage evenly.
Supports two Wi-Fi network mode: Access Point (AP) / Repeater
Two build-in antennas for high throughput data exchange rate of maximum
300Mbps
Compatible with most smart phones, tablets and computers that support Wi-Fi
IEEE 802.11b/g/n standard at 2.4GHz.
Remote LED lights ON/OFF and dimming control individually or by group
Download the free Boost Android or iOS App to explore even greater
functionality
Box Contents
One A01-A60 Bulb
User Manual
Limited Written Express Warranty
Product Specifications
Power Supply: 100~230V AC, 50/60Hz
Lamp Socket: E26/E27/B22
Power Consumption: 7.4W (LED + Wi-Fi Repeater), Peak 9W
Operating Temperature: -20° C ~ +40° C
Store Temperature: -40° C ~ +70° C

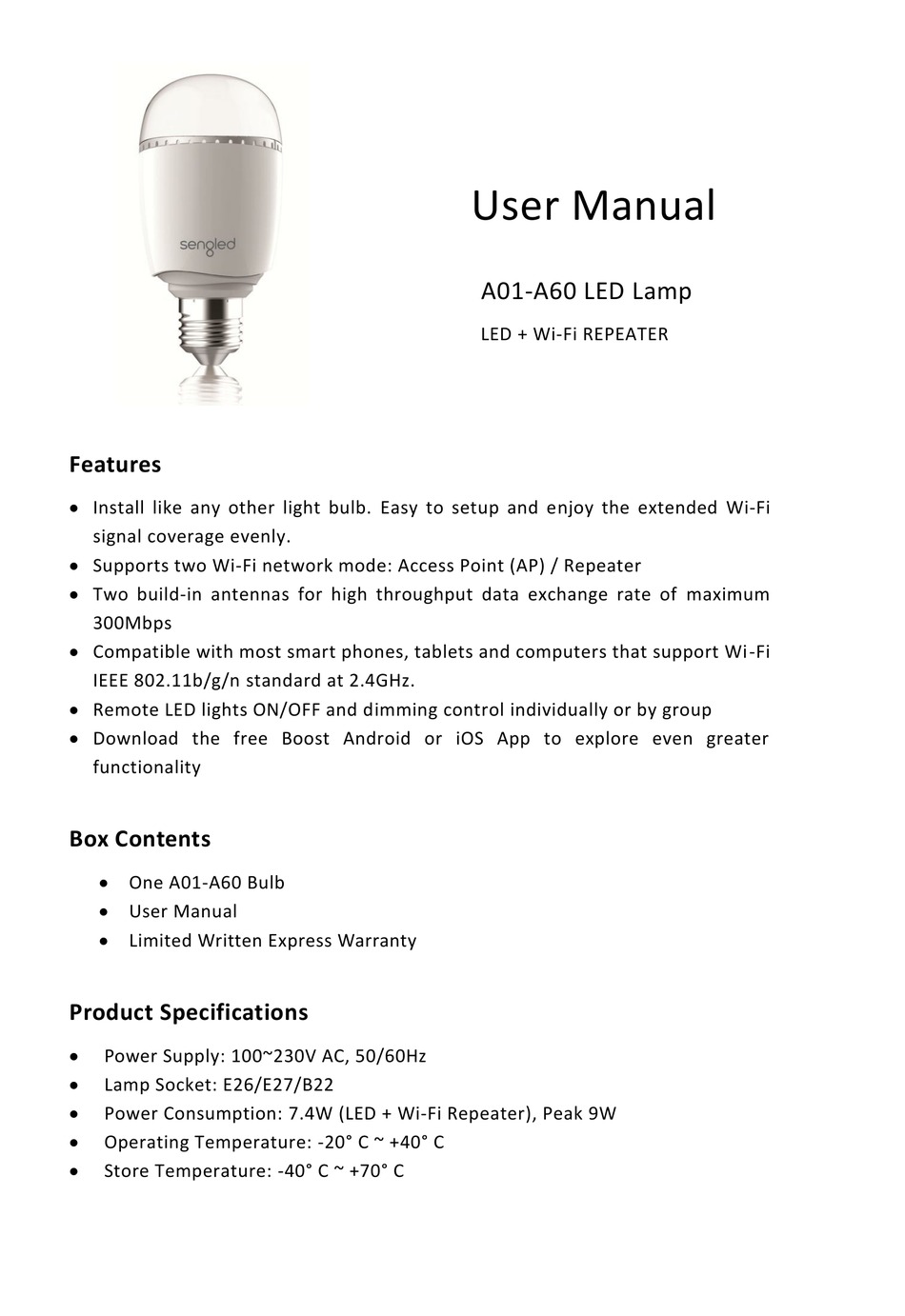

User Manual
A01-A60 LED Lamp
LED + Wi-Fi REPEATER
Advertisement
Summary of Contents for Sengled A01-A60
-
Page 1: User Manual
Remote LED lights ON/OFF and dimming control individually or by group Download the free Boost Android or iOS App to explore even greater functionality Box Contents One A01-A60 Bulb User Manual Limited Written Express Warranty Product Specifications ... - Page 2 Operating Humidity: 10% ≤ RH ≤ 95%, Non condensation Atmospheric Pressure: 86kPa ~ 106kPa Colour: Neutral White Dimensions: 120mm (H) x Φ 60mm (Dia.) Weight: 290g (approx.) Spécifications de produit (par ampoule) • Alimentation: 100 ~ 230V AC, 50/60 Hz •...
-
Page 3: Installation Instructions
@ 802.11g: -81dBm @ 802.11n: -71dBm Distance Range between Router and A01-A60 Bulb: 115 feet (near line of sight) © 2014 SENGLED, Incorporated. All rights reserved. Sengled pulse is a trademark of SENGLED, Incorporated, registered in the United States and other countries. Specifications are subject to change without notice. - Page 4 5. Launch the boost by Sengled application, and a 'Welcome' page appears. At the beginning, press the "network" tab to initialize boost A01-A60 bulb's configuration. After that, click the “START” button to enter the configuration and control interface of the bulb/s.
- Page 5 If there is no any equipment, please check if the lamp is powered on, and click the refresh button to try again. 8. The App will also search and list out nearby available boost A01-A60 bulb/s. The default SSID of the bulb is “SENGLED_AP”. (ATTENTION: Figure shows below, SSID Name of "LL_AP_00_**"...
- Page 6 bulbs, the interface shows a Main Control Page. This can be used to control the overall LED light dimming and ON/OFF. 11. To control the LED bulb individually, pull up the bulb list at the bottom, each bulb can be dimmed separately. Click the arrow on the right, and it goes to the bulb wireless network configuration page.
- Page 7 (such as MAC address). User can change bulb's SSID (listed on the WLAN table, visible name to public), or Name (listed on the boost by Sengled App) to a more meaningful name, such as "Living Room AP" or "Living Room Wi-Fi". Press "Apply"...
- Page 8 13. If re-configuration of the wireless network is needed, press the Setting Menu button on the Main Control Page and click the "Network" tab. Re-initialize all bulbs on the network and start setup wizard again. 14. If the bulb cannot be detected by the portable smart devices or App in any ways, user can press the physical RESET button to reset the configuration of the bulb (in the middle of the LED lens), as shown below.
-
Page 9: Important Safety Instructions
• Heed all warnings contained within these instructions. • Please follow all user manual instructions when installing the product. • Clean SENGLED product only with a dry towel. • This Product is intended for indoor use only. • Do NOT use this product outdoors. - Page 10 4) the product has been exposed to rain or moisture, 5) the product does not operate normally, or has been dropped. • Repairs must be performed by a qualified SENGLED technician. • For bulb with a weight significantly higher than that of the bulbs for which they...
- Page 11 Warranty Information Warranty statement For this product, the manufacturer grants a warranty of 2 years for workmanship and material. Warranty repairs may be performed exclusively by an authorised customer service. The original sales receipt has to be enclosed as proof. Excluded from this warranty are: normal wear and tear, alterations, rework, damage as a result of carelessness, outside influence, areas of application for which the product is not intended, or products that have been dismantled completely or partially.
- Page 12 FCC STATEMENT FOR USERS This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 13 co-located or operated in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions to satisfy RF exposure compliance.
- Page 14 IC Radiation Exposure Statement for Canada This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence.
-
Page 15: Important Note
Le présent émetteur radio (identifier le dispositif par son numéro de certification ou son numéro de modèle s'il fait partie du matériel de catégorie I) a été approuvé par Industrie Canada pour fonctionner avec les types d'antenne énumérés ci-dessous et ayant un gain admissible maximal et l'impédance requise pour chaque type d'antenne.
