FABER S.p.A. ZOOM Instruction Manual

Hide thumbs

Advertisement

Quick Links

Instructions Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the ZOOM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for FABER S.p.A. ZOOM

Summary of Contents for FABER S.p.A. ZOOM

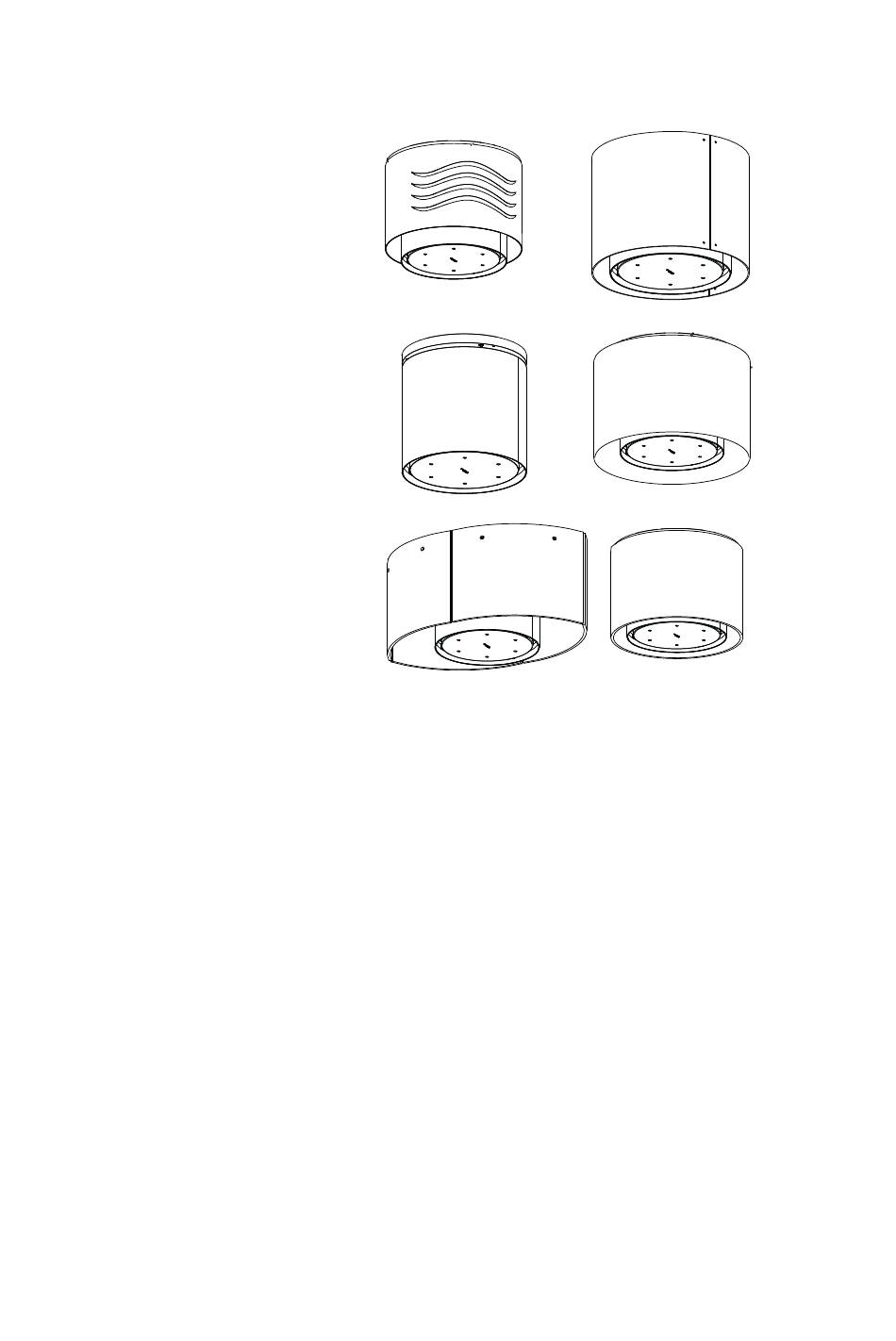

  • Page 1 Instructions Manual...

  • Page 2: Table Of Contents

    INDEX SAFETY INFORMATION................................. 3 CHARACTERISTICS ................................6 INSTALLATION..................................20 USE ...................................... 30 CARE AND CLEANING................................. 32...

  • Page 3: Safety Information

    SAFETY INFORMATION For your safety and correct operation of the appliance, read this manual carefully before installation and use. Always keep these instructions with the appliance even if you move or sell it. Users must fully know the operation and safety features of the appliance. The wire connection has to be done by specialized technician.
  • Page 4  If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.
  • Page 5  The appliance is not to be used by persons (including children) with re- duced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction. Accessible parts may become hot when used with cooking appliances. ...

  • Page 6: Characteristics

    CHARACTERISTICS Components (Zoom model) Ref. Q.ty Product Components Hood Canopy complete with: Controls, Light, Filters, Motor. Hood support plate. Cable raceway Pawl Ref. Q.ty Installation Components Wall plugs ø 10 Screws M5 x 70 Screws for pawl Q.ty Documentation Instruction Manual...
  • Page 7 ZOOM (15 Kg)
  • Page 8 Components (Chic-Vanilla models) Ref. Q.ty Product Components Hood Canopy complete with: Controls, Light, Filters, Motor. Hood support Plate (with lamp holder). Cable raceway Glass Glass fixing plates Pawl Ref. Q.ty Installation Components Wall plugs ø 10 Screws M5 x 70 Screws M4 x 20 Screws M4 x 10 Screws for pawl...
  • Page 9 CHIC / VANILLA (30 Kg)
  • Page 10 Components (Nest models) Ref. Q.ty Product Components Hood Canopy complete with: Controls, Light, Filters, Motor. Hood support Plate (with lamp holder) Hood support plate extension Cable raceway Glass (Glass products manually) Pawl Ref. Q.ty Installation Components Glass fixing brackets with bush Wall plugs ø...
  • Page 11 NEST (39 Kg)
  • Page 12 Components (Vertigo model) Ref. Q.ty Product Components Hood Canopy complete with: Controls, Light, Filters, Motor. Hood support Plate (with lamp holder) Cable raceway Glass or Panels the other material Pawl Ref. Q.ty Installation Components Wall plugs ø 10 Screws M5 x 70 Chrome plated glass fixing Pin/Screw Screw for pawl Q.ty Documentation...
  • Page 13 VERTIGO (20 Kg)
  • Page 14 Components (Kaleidos model) Ref. Q.ty Product Components Hood Canopy complete with: Controls, Light, Filters, Motor. Hood support Plate (with lamp holder) Cable raceway Glass or Panels the other material Pawl Ref. Q.ty Installation Components Wall plugs ø 10 Screws M5 x 70 Chrome plated glass fixing Pin/Screw Screws for pawl Q.ty Documentation...
  • Page 15 KALEIDOS (18 Kg)
  • Page 16 Components (Luxia model) Ref. Q.ty Product Components Hood Canopy complete with: Controls, Light, Filters, Motor. Hood support Plate (with lamp holder) Power supply cable lock Glass Pawl Ref. Q.ty Installation Components Wall plugs ø 10 Screws M5 x 70 Chrome plated glass fixing Pin/Screw Screw for pawl Q.ty Documentation Instruction Manual...
  • Page 17 LUXIA (30 Kg)
  • Page 18 Dimensions...

  • Page 20: Installation

    The F-Light hood is a system comprising hood + lamp, so that two separate electrical wiring systems must be provided, one for the hood and one for the lamp. The Zoom model is not fitted with a lamp. Sequence of operations - Installation •...
  • Page 21 Warning: there will be two lines to be connected: a direct electric line for the hood power supply and another line with a switch for the lamp. This does not apply to Zoom model. • Air Outlet (Ducting Version): according to the diameter of the connection to the external ducting pipe.
  • Page 22 FIXING THE PLATE • Lift up the fixing plate, taking care to ensure that the limit pawl is positioned frontally. • Fit the slots onto the two screws previously inserted in the ceiling, and turn until they are at the centre of the adjustment slot.
  • Page 23 CONNECTING HOOD-PLATE CABLES N.B. Before continuing with installation it is necessary to move the hood to a height of at least 650 mm from the cooker hob, using a support or the assistance of an- other person. This is essential, as the hood cables must necessarily be connected to the plate fitted to the ceiling without the weight of the hood bearing on the structure.
  • Page 24 • Attention to the direction of the plate fixed to the ceiling (the limit pawl on the plate fastened to the ceiling has a corresponding hole on the plate cover and on the hood canopy). • Insert the cables into the safety knobs (c) with the thread at the top.
  • Page 25 • Pass the cables through the slots in the threaded pawls (a) and screw the cable locking screws (b) to the pawls them- selves. • When the operation has been completed the result must be as shown in the figure for all 4 ca- bles.
  • Page 26 LEVELLING THE HOOD • The hood mobile unit must be levelled to allow the movement to operate properly. • The hood is levelled by adjusting the safety pawls. • Rest a spirit level on the hood. • When the safety knobs are pressed upwards, movement of the hood is “unlocked”.
  • Page 27 Connections AIR OUTLET - DUCTING VERSION To install the hood in the ducting version, please refer to the instructions provided in the ducting kit specific to the hood. AIR OUTLET – RECIRCULATION VERSION • Open the lighting unit by pulling on the notch provided. •...
  • Page 28 FIXING THE POWER SUPPLY CABLE • Tighten the power supply cable and fix it to the Bracket on the ceiling mounted Plate, using the tongue already mounted and 2 screws. • Slot the rubber cable raceway already threaded onto the power cable into the slot to prevent future damage.
  • Page 29 FITTING THE GLASS – CHIC-VANILLA MODELS • Take the lamps and insert them in the lamp holders. • They do not have to be screwed in, but simply inserted all the way. • Fix the glass 5 to the plate using the screws 12d and washers 22 in the top part.

  • Page 30: Use

    Control panel Button Function Display Turns the lights On/Off. Hood Down On/Off Press for 2 seconds to raise the Hood. Press briefly to turn the Motor On/Off. Hood Up Off/Off Press once: The Hood lowers. Press a second time: The Hood Stops. When the movement has been completed the motor turns on at Speed two.
  • Page 31 REMOTE CONTROL This appliance can be commanded using a remote control, powered by a CR2032 type 3 V battery (not supplied). • Do not place the remote control near heat sources. • Do not discard the batteries with normal waste, they must be put into the specific containers.

  • Page 32: Care And Cleaning

    CARE AND CLEANING Grease filter The filter must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher. CLEANING METAL SELF- SUPPORTING GREASE FILTER • Open the lighting unit by pulling on the nocth. •...
  • Page 33 Lighting unit • For replacement contact technical support ("To purchase contact technical support"). Lighting Unit Lamps Chic G9 -- Energy Saving 9W Vanilla G9 -- Energy Saving 9W Luxia G9 -- High Power 40W Kaleidos G9 -- Energy Saving 9W Nest G9 -- High Power 40W Vertigo...
  • Page 34 Additional information for the installation technician • Open the lighting unit by pulling on the notch provided. • Apply the label, indicated the type of lighting, on the Hood as indicated in the figure (Rif.A). Procedure to be used in case of malfunction on the movement •...
  • Page 36 991.0557.382_ver1 - 180802 - D005008_00...

This manual is also suitable for:

ChicVanillaNestVertigoKaleidosLuxia
