Repair instructions
H-2000-4042-03-A
OMM and OMME
Fitting a new printed circuit board to a
Renishaw Optical Module Machine

Advertisement

loading
Need help?

Need help?

Do you have a question about the OMM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Renishaw OMM

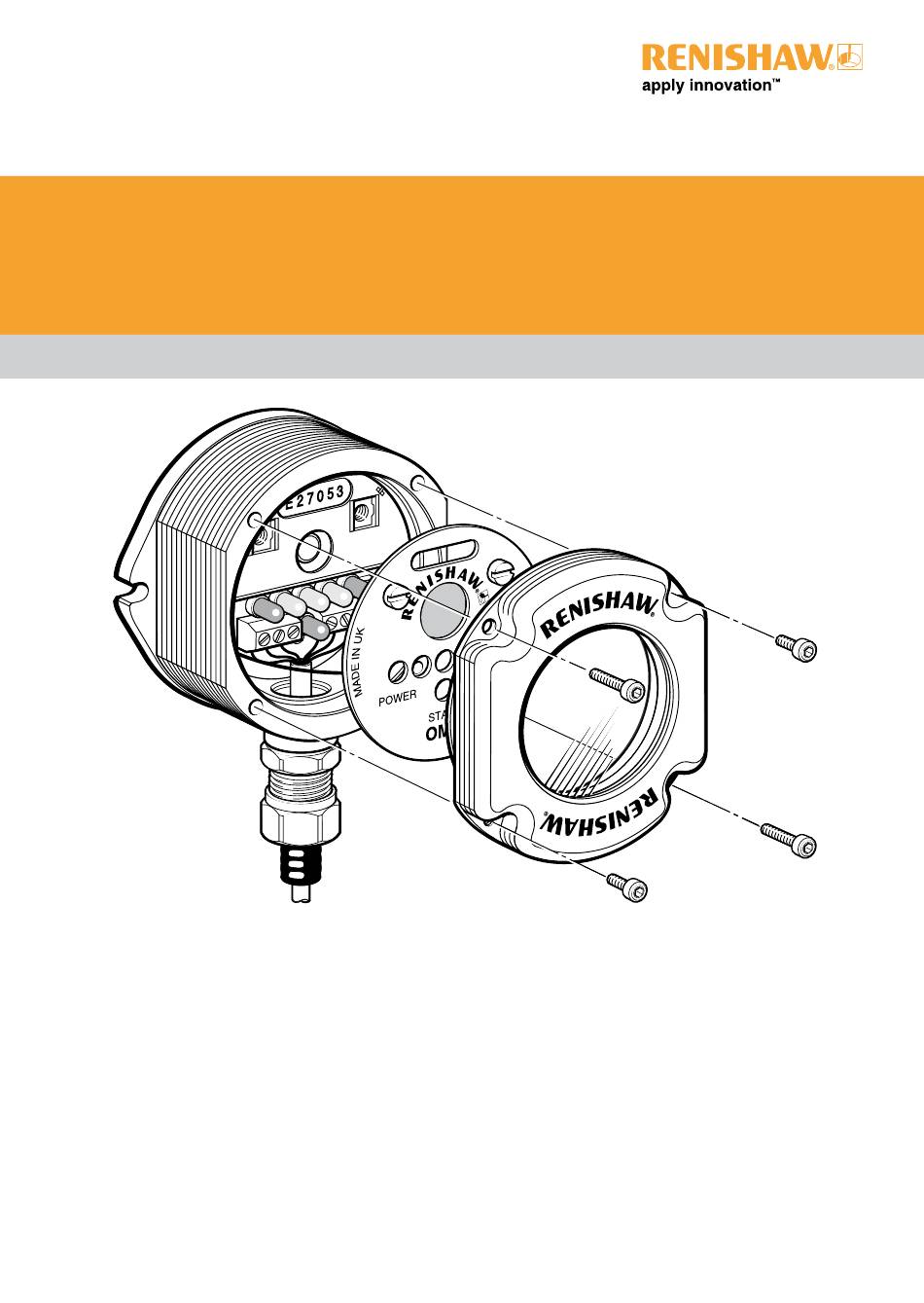

  • Page 1 Repair instructions H-2000-4042-03-A OMM and OMME Fitting a new printed circuit board to a Renishaw Optical Module Machine...
  • Page 2 HOWSOEVER ARISING, FOR ANY INACCURACIES IN THIS DOCUMENT. Trademarks RENISHAW® and the probe emblem used in the RENISHAW logo are registered trademarks of Renishaw plc in the UK and other countries. apply innovation is a trademark of Renishaw plc. All other brand names and product names used in this document are trade names, service marks, trademarks, or registered trademarks of their respective owners.
  • Page 3 Introduction The repair instructions contained within this publication provide detailed, step-by-step instructions for replacing a defective printed circuit board (PCB) contained within the following range of Renishaw Optical Module Machines: Product description Part number A-2033-0576 OMME A-2033-7268 Prior to carrying out the instructions contained within this publication,...
  • Page 4: Replacing The Defective Pcb

    OMM body. Never remove the window by twisting or rotating by hand. Always use the jacking screws provided. To remove the window and label from the OMM, carry out the following (see Figure 1): Using a 2.5 mm AF allen key, release and remove the two short screws [1] and the two long screws [2] securing the window [3] to the OMM body [4].
  • Page 5 Screw (short) (2 off) Screw (long) (2 off) Window OMM body Quick release screw (2 off) Label Figure 1 – Removal of the OMM window and label...
  • Page 6 Replacing the defective PCB within the OMM body To replace the defective PCB within the OMM body, carry out the following (see Figures 2 and 3): Disconnect the wires from the terminal block. Pull gently on the wire handle attached to the PCB and carefully remove the PCB from the OMM body.
  • Page 7 Green Grey Brown White Screen Yellow Green/yellow Wire handle support Figure 2 – Replacing the OMM printed circuit board Figure 3 – OMM range selection switch...
  • Page 8: Replacing The Omm Label And Window

    OMM body. Tighten the screws [7] in turn, to pull the window [4] evenly into the body of the OMM. Finally tighten the screws to 0.9 Nm to 1.1 Nm (0.66 lbf.ft to 0.81 lbf.ft).
  • Page 9 ‘O’ ring are clean and undamaged Inspect the ‘O’ ring location groove for damage Label Retaining screw (2 off) OMM body Window ‘O’ ring Screw (short) (2 off) Screw (long) (2 off) Figure 4 – Replacing the OMM label and window...
  • Page 11 Renishaw plc +44 (0)1453 524524 +44 (0)1453 524901 New Mills, Wotton-under-Edge, uk@renishaw.com Gloucestershire, GL12 8JR United Kingdom www.renishaw.com For worldwide contact details, please visit our main website at www.renishaw.com/contact *H-2000-4042-03*...
