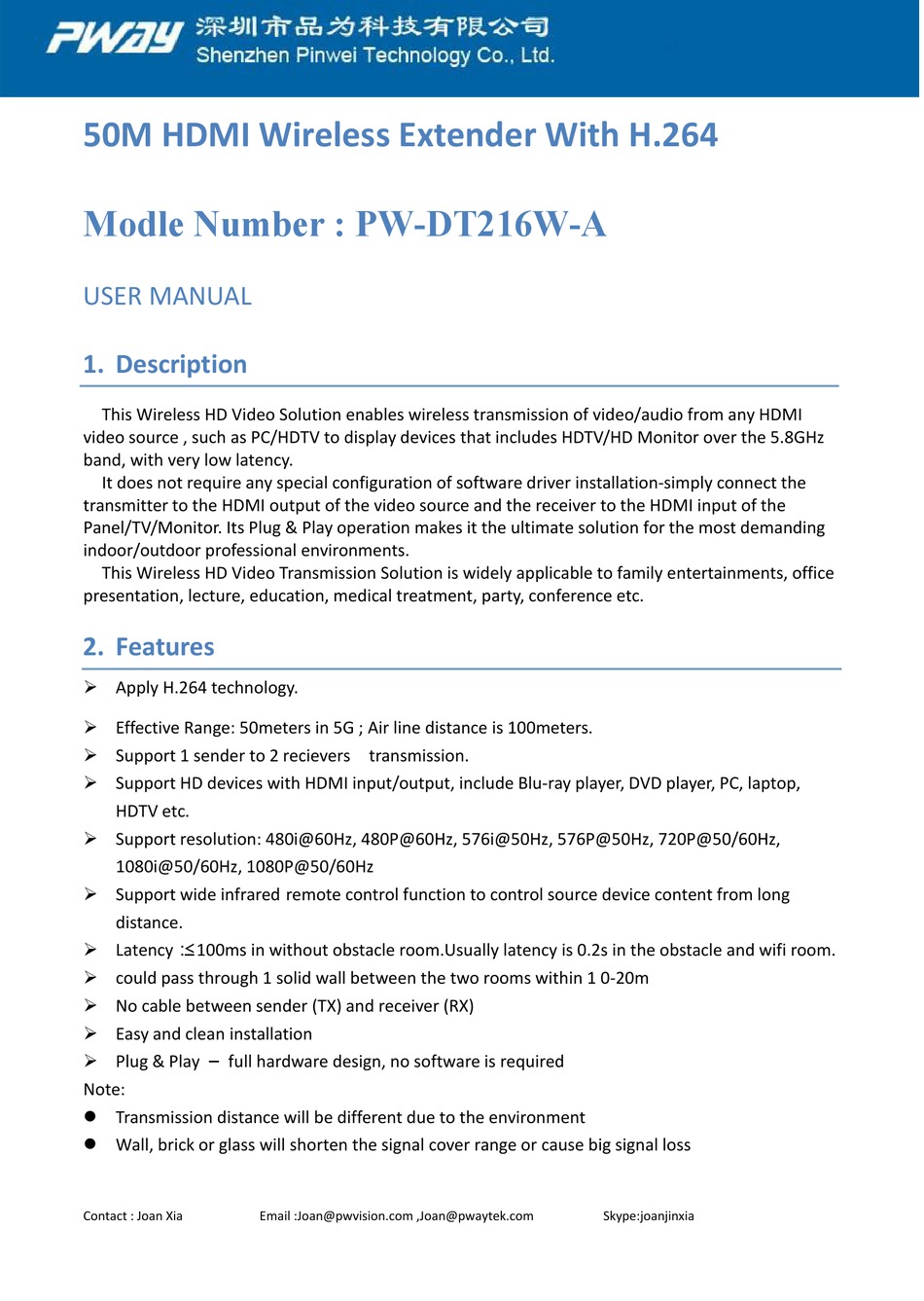

PWAY PW-DT216W-A User Manual

50M HDMI Wireless Extender With H.264
Modle Number : PW-DT216W-A

USER MANUAL

1. Description
This Wireless HD Video Solution enables wireless transmission of video/audio from any HDMI
video source , such as PC/HDTV to display devices that includes HDTV/HD Monitor over the 5.8GHz
band, with very low latency.
It does not require any special configuration of software driver installation-simply connect the
transmitter to the HDMI output of the video source and the receiver to the HDMI input of the
Panel/TV/Monitor. Its Plug & Play operation makes it the ultimate solution for the most demanding
indoor/outdoor professional environments.
This Wireless HD Video Transmission Solution is widely applicable to family entertainments, office
presentation, lecture, education, medical treatment, party, conference etc.
2. Features
 Apply H.264 technology.
 Effective Range: 50meters in 5G ; Air line distance is 100meters.
 Support 1 sender to 2 recievers transmission.
 Support HD devices with HDMI input/output, include Blu-ray player, DVD player, PC, laptop,
HDTV etc.
 Support resolution: 480i@60Hz, 480P@60Hz, 576i@50Hz, 576P@50Hz, 720P@50/60Hz,
1080i@50/60Hz, 1080P@50/60Hz
 Support wide infrared remote control function to control source device content from long
distance.
 Latency： ≤100ms in without obstacle room.Usually latency is 0.2s in the obstacle and wifi room.
 could pass through 1 solid wall between the two rooms within 1 0-20m
 No cable between sender (TX) and receiver (RX)
 Easy and clean installation
 Plug & Play – full hardware design, no software is required
Note:
 Transmission distance will be different due to the environment
 Wall, brick or glass will shorten the signal cover range or cause big signal loss
