Summary of Contents for Kobastar K1

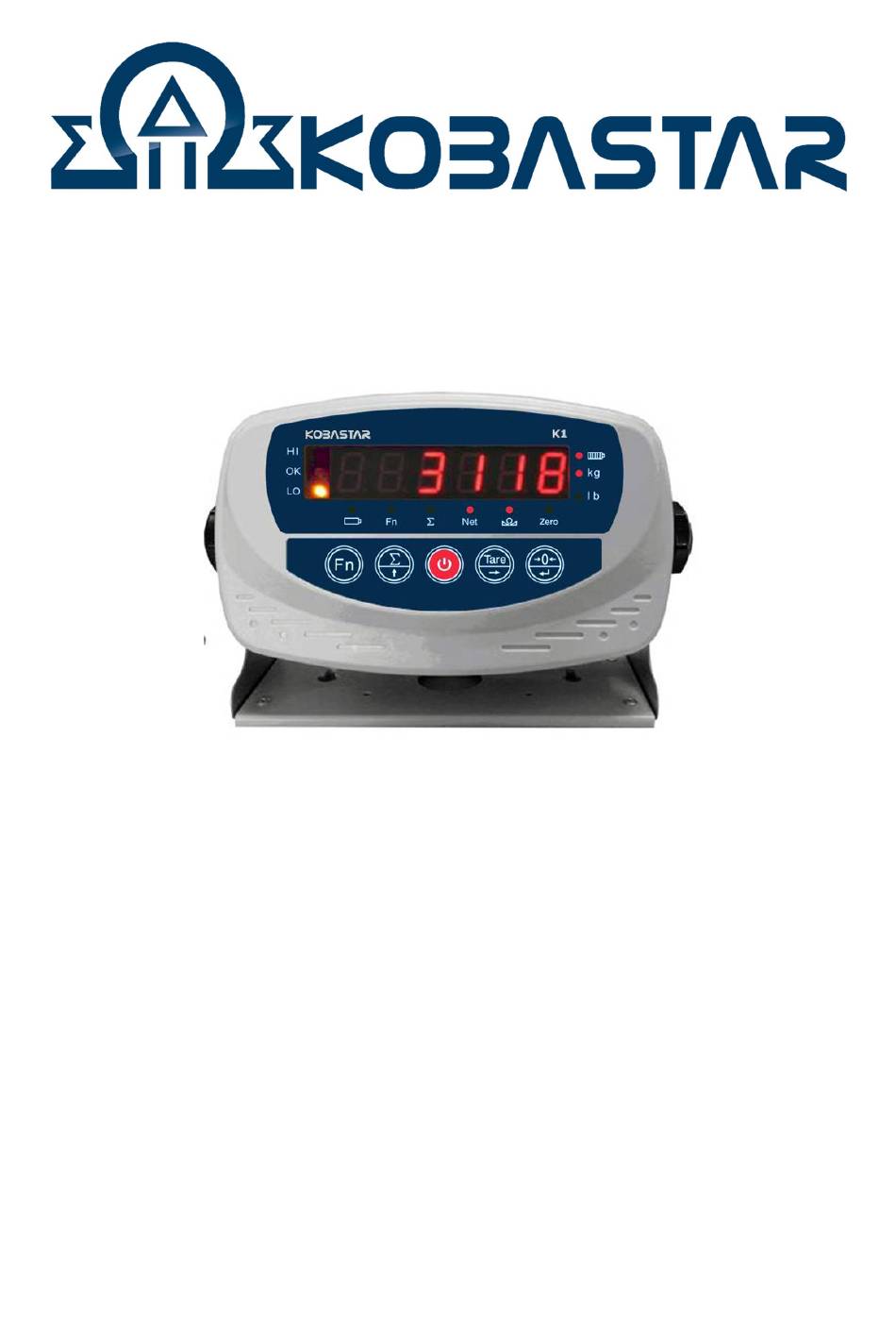

  • Page 1 KOBASTAR K1 USER MANUAL...

  • Page 2: Table Of Contents

    TABLE OF CONTENT 1.0 BRIEF INTRODUCTION………………..…………………………………………..………………...……………………………….3 1.1 TECHNICAL PARAMETERS……………….………………….….…………………………………3 2.0 INSTALLATION………….…….………………………………………………………….…………….………..………………………3 2.1 INDICATOR INTERFACE………….………………..…………………………………………..……3 2.1.1 K1 BACKSIDE……..…..…………………………………………………………..…………3 2.1.2 Loadcell with connection…..……..………………….…………………………….…4 2.1.3 Serial Communication Wire Connection..…….………………………………..4 3.0 OPERATION………………..…………………………………………………………………………………………………………….4 3.1 AUTO ZERO WHEN TURN ON AND OFF…………………………………………………………4 3.2 MANUALLY ZERO...……………………………………………………………………………………….4 3.3 TARE………….………………………………………………………………………………………………….5 3.4 OPERATION FOR TOTAL DISPLAY AND FUNCTION……………………..……………..…5...

  • Page 3: Brief Introduction

    Display: 6 bits LED, 10 indicating signs;  Specialized adapter power supply: AC 110-220V, 50Hz-60Hz(special adapter)  6V/4AH built-in maintaince free Lead-Acid battery  Working temperature 0-+40 °C , Humidity=85%(RH)  Storage temperature: -20~+60°C, Humidity=95%(RH)  2.0 INSTALLATION 2.1 INDICATOR INTERFACE 2.2 K1 BACK SIDE...

  • Page 4: Loadcell With Connection

    2.1.2 Loadcell with Connection Specification ① - Excitation ② - Feedback ⑥ + Excitation ⑦ + Feedback ⑧ - Signal ⑨ + Signal ⑤ Shield ! Connection between load cell and indicator must be reliable, shield wire must be connected to ground reliably.
  • Page 5 3.0 OPERASYON 3.1 CİHAZ AÇMA/KAPATMA VE OTOMATİK SIFIRLAMA The indicator power can be controlled by the on-off key on the front faceplate . The indicator will perform self-check after turned on. If the scale was found departure from the calibrate zero however still within the range of turn on auto zero then the indicator will display “0”...

  • Page 6: Operation

    OPERATION DIAGRAM  Keep Pressing Display Total Press ” ” to see  Press ” ” to exit “Total” Value the adding times   Press “ ” to Press “ ” to celar total value confirm clear Press “FUNCTION” to cancel 4.0 CALIBRATION After self checking of turn on, it will enter normal weighing display, warm up for 15-30...

  • Page 7: Other Parameter Setting And Function

    5.0 OTHER PARAMETER SETTING AND FUNCTION Steps Operations Display Note Keep Pressing “Functıon” Setting: “FUNCTION” to Enter [ Lb]: One key switch (kg/lb), (Not available under net weighing status)  [ANL]: Animal Scale, One key total and lock display. “ “...
  • Page 8  “ ”to Power on auto set zero range（Auto Set Zero） switch 【At **】 ：  “ ”to 0，2，4，10，20，100 % of full capacity； confirm Filter set（Filter）： 【Stb】：stable algorithm（Stable)；  “ ”to 【SEn】：sensitive algorithm（Sensitive）； switch 【FL ***】 【 3】：strong vibration resistance ...
  • Page 9 Load Calibratin Error. Too low load or Calibration code too small or AD everse Err 09 Data read verify Error, Data Memory Damaged Err 10 Boot verift Error, SCM damaged K1 INBOX Name Indicator Adapter Communication Plug (9 Pin) Manual...
  • Page 10 KOBASTAR CENTER OFFICE Adress : Fevzi Çakmak Mah. Ayyıldız Cad. No:16/F Karatay/Konya / TURKEY Phone : +90 332 249 38 15 +90 332 249 38 16 Fax :+90 332 249 38 17 E-mail : bilgi@kobastarloadcell.com...

This manual is also suitable for:

Xk3118t1
