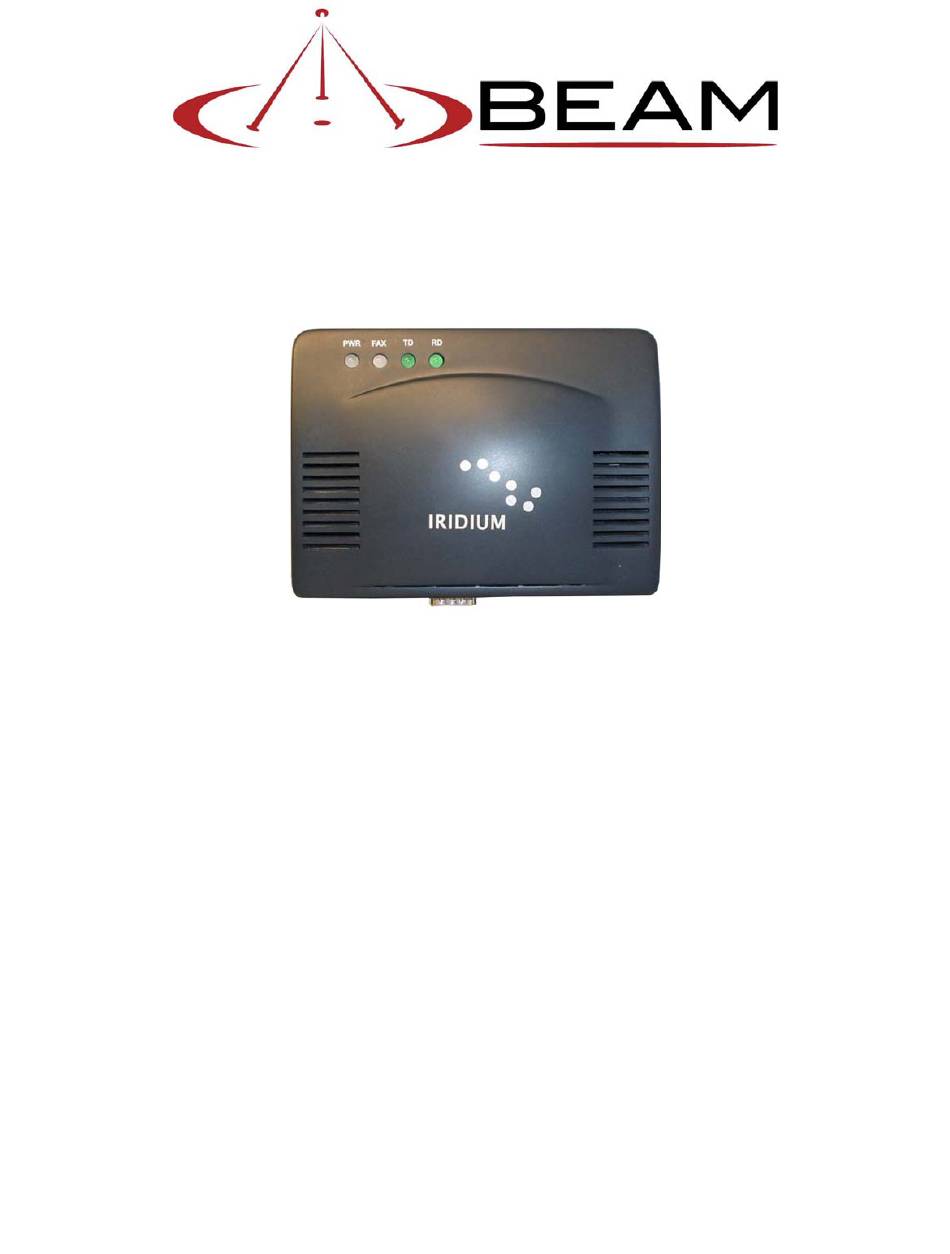

- Page 1 FX2600 Fax Adapter User Guide...
- Page 2 Information furnished by Beam Communications Pty Ltd (Beam) is believed to be accurate and reliable. However, no responsibility is assumed by Beam for its use, or for any infringement of patents or other rights of third parties, which may result from its use. No license is granted by implication or otherwise under any patent or patent rights of Beam. Beam reserves the right to change specifications at any time without notice.
-
Page 3: Table Of Contents
SETUP – ENTERING THE SETUP STRING ................... 11 COUNTRY SUPPORT ........................12 FIRMWARE UPDATES ........................13 LED STATUS INDICATORS ......................15 BEAM PRODUCT COMPATIBILITY LIST ..................16 SENDING / RECEIVING FAXES......................17 CONNECTING THE FAX ADAPTER ..................... RST100 R SAT ........................ -
Page 4: Introduction
Mobile Originated (MO) Fax to PSTN A fax is sent from a fax machine connected to the Fax Adapter, and sent via the Beam device over the Iridium Satellite Network to the Iridium Fax Server at the Iridium Gateway and then sent to the other parties fax machine over PSTN. -
Page 5: Fax Adapter Package Contents
9. User Guide – including Warranty Statement Setup & Configuration Before you can use your Fax Adapter with your Beam device, there are a couple of settings that need to be made first. Make sure you have the following available before you proceed: •... -
Page 6: Connecting To The Fax Adapter With Hyperterminal
3. Once Hyperterminal is open, type in a name for the new Connection as per the illustration below: Click OK on this screen. 4. Select the COM port you have the Fax Adapter connected to on the following screen. FX2600 FAX ADAPTER USER GUIDE... - Page 7 Click OK on this screen. 5. Set the Communication Port properties to 19200, 8, None, 1, None as per the illustration below: Click OK. 6. Now apply power to the Fax Adapter FX2600 FAX ADAPTER USER GUIDE...
-
Page 8: Power Up Sequence
Refer to the Fax Adapter User’s Guide on how to upgrade the firmware. Powering up sequence It is important that the Fax Adapter is not powered up until the Beam device it is connected to is switched on and Registered on the Iridium Network first. -
Page 9: Setup - Country Code
Once at the command prompt in Hyepterminal, type in AT and then hit ENTER. The Fax Adapter should respond with “OK”. Type ATCxyz (where xyz is your 3-digit country code). Type AT\S to verify that the Fax Adapter has stored the country code correctly. FX2600 FAX ADAPTER USER GUIDE... -
Page 10: Setup - Polling Interval
2. Set polling interval The polling interval is the interval at which the Fax Adapter will check the Beam device to see if there are any new faxes waiting to be received from the Iridium Fax Server. Note that if you are in a voice / data call when the device is due to poll for new messages that the call will not be interrupted and will wait until the next polling interval after the call is terminated to check for new messages. -
Page 11: Setup - Entering The Setup String
For example assuming your MSISDN was 881631401234 and you had a Postpaid SIM, you would enter: #881631401234#1#1* <SEND> If you have completed all the above 3 steps, your Fax Adapter is now ready to be connected to your beam device. FX2600 FAX ADAPTER USER GUIDE... -
Page 12: Country Support
Fax machines are configured to work correctly in the country in which they are sold. The Fax Adapter, by default, is configured to work correctly with North American fax machines. The Fax Adapter configuration can be changed to support fax machines from the following countries: FX2600 FAX ADAPTER USER GUIDE... -
Page 13: Firmware Updates
The Fax Adapter will reboot it’s self and you will be presented with an output similar to that of when you first connected. Make sure you note the firmware version displayed to ensure that your firmware upgrade was successful, as per the following screen: FX2600 FAX ADAPTER USER GUIDE... - Page 14 ⇒ Insert the RJ11 Emergency Plug into the RJ11 jack. ⇒ Apply Power to the Fax Adapter. Fax Adapter should respond with “UPLOAD PROGRAM NOW”. ⇒ Select Transfer -> Send Text File from the Hyperterminal menu and re-upload the firmware. FX2600 FAX ADAPTER USER GUIDE...
-
Page 15: Led Status Indicators
SMS notification (Mobile Originated Fax Failure, Mobile Terminated Fax, and Over the Air Firmware Update) is received. PWR LED lights GREEN when power is applied. TD/RD LED’s flash while communicating with the Beam device. FX2600 FAX ADAPTER USER GUIDE... -
Page 16: Beam Product Compatibility List
Beam Product Compatibility List The below table is a list of Beam Terminals that can currently be used with the Fax Adapter. The following pages explain how to connect the Fax Adapter & Group 3 fax machine to each of the below Beam units. -
Page 17: Sending / Receiving Faxes
“,”. Check your fax machine documentation for further information). Example (assuming you are sending a fax to 881631401234): 14803454340,,,,881631401234 Mobile Terminated FAX (ISU to ISU) At the Fax Machine, enter: <MSISDN><∗><SEND> Example (assuming you are sending a fax to 881631401234): 881631401234*<SEND> FX2600 FAX ADAPTER USER GUIDE... -
Page 18: Connecting The Fax Adapter - Rst100 Remotesat
The supplied Serial Data Cable connects from the 9-pin serial connection on the back of the Fax Adapter to the COMM Port on the rear of the Beam RST100 RemoteSAT. DO NOT use the Null Modem adapter in this setup! Before applying power to the Fax Adapter, make sure the RST100 is first powered on and registered on Iridium Network. -
Page 19: Rst310 Intelli Dock
The supplied Serial Data Cable connects from the 9-pin serial connection on the back of the Fax Adapter to the COMM Port on the rear of the Beam RST310 IntelliDOCK. DO NOT use the Null Modem adapter in this setup! Before applying power to the Fax Adapter, make sure the RST310 is first powered on and registered on Iridium Network. -
Page 20: Rst978 Hands -Free Kit
The supplied Serial Data Cable connects from the 9-pin serial connection on the back of the Fax Adapter to the 9-pin Data Port on the side of the Beam Hands Free Interface (HFI). DO NOT use the Null Modem adapter in this setup! Before applying power to the Fax Adapter, make sure the HFI is first powered on and the handset is registered on Iridium Network. -
Page 21: Rst620 Tran Sat
The supplied Serial Data Cable connects from the 9-pin serial connection on the back of the Fax Adapter to the 9-pin Data Port on the side of the Beam Hands Free Interface (HFI). DO NOT use the Null Modem adapter in this setup! Before applying power to the Fax Adapter, make sure the HFI is first powered on and that the Intelligent Handset displays that it is registered on Iridium Network. -
Page 22: Rst600 Data Modem
Adapter to the 9-pin plug on the RST600 Data Cable. DO NOT use the Null Modem adapter in this setup! Before applying power to the Fax Adapter, make sure the RST620 is first powered on and given time to register on Iridium Network. FX2600 FAX ADAPTER USER GUIDE... -
Page 23: Rst075 Basic Cradle
Adapter to the 9-pin Data Port on the back of the Cradle. DO NOT use the Null Modem adapter in this setup! Before applying power to the Fax Adapter, make sure the handset is first powered on and registered on Iridium Network. FX2600 FAX ADAPTER USER GUIDE... -
Page 24: Rst625 Rapid Sat
Adapter to the RS232 Data port on the inside of the RapidSAT pelican case. DO NOT use the Null Modem adapter in this setup! Before applying power to the Fax Adapter, make sure the RapidSAT terminal is first powered on and registered on Iridium Network. FX2600 FAX ADAPTER USER GUIDE... - Page 25 Adapter to the Data port on the inside of the SatRADIO pelican case. DO NOT use the Null Modem adapter in this setup! Before applying power to the Fax Adapter, make sure the HFI SatRADIO is first powered on and registered on Iridium Network. FX2600 FAX ADAPTER USER GUIDE...
-
Page 26: Rst820 Sat Radio Fixed
The supplied Serial Data Cable connects from the 9-pin serial connection on the back of the Fax Adapter to the COMM Port on the rear of the Beam RST820 terminal. DO NOT use the Null Modem adapter in this setup! Before applying power to the Fax Adapter, make sure the RST820 is first powered on and registered on Iridium Network. -
Page 27: Rst805 / Rst810 Secure Plus
Connecting the Fax Adapter – RST805 / RST810 SecurePLUS Due to the complexity of the RST805 / RST810, advanced setup configuration is required to integrate your Fax Adapter. Please contact Beam for more information. FX2600 FAX ADAPTER USER GUIDE... -
Page 28: Usb -> Adapter
Careful consideration of this should be noted when using a USB to Serial adapter with the Fax Adapter. Beam’s USB to Serial adapter has been tested and certified to work with the Fax Adapter, should such a scenario require. -
Page 29: Frequently Asked Questions
AT08/15/2007-002 IRIDIUM-V.010R+++ATH Note: You must be running V.010R or later to use the fax adapter with a Beam device. Q. How many pages can I send / receive? A. The fax adapter has the ability store up to 10 letterhead pages (less for A4), or 1MB of scanned images. - Page 30 Adapter is lost, and subsequently needs to be re-sent once power is re-established. If power is lost to the Beam device only during transmission, the Fax Adapter will attempt to retry sending the fax to the Iridium Fax Server every 30 seconds, and therefore will reconnect and begin transmitting the fax at the page where the interruption occurred, as once the Beam device is powered back on and Registered on the Iridium Network.
