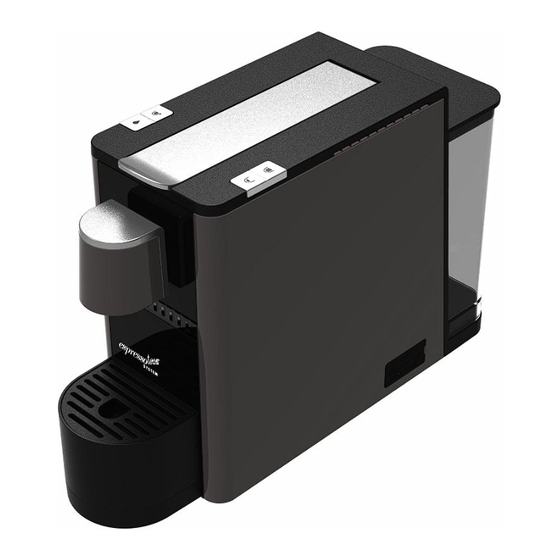

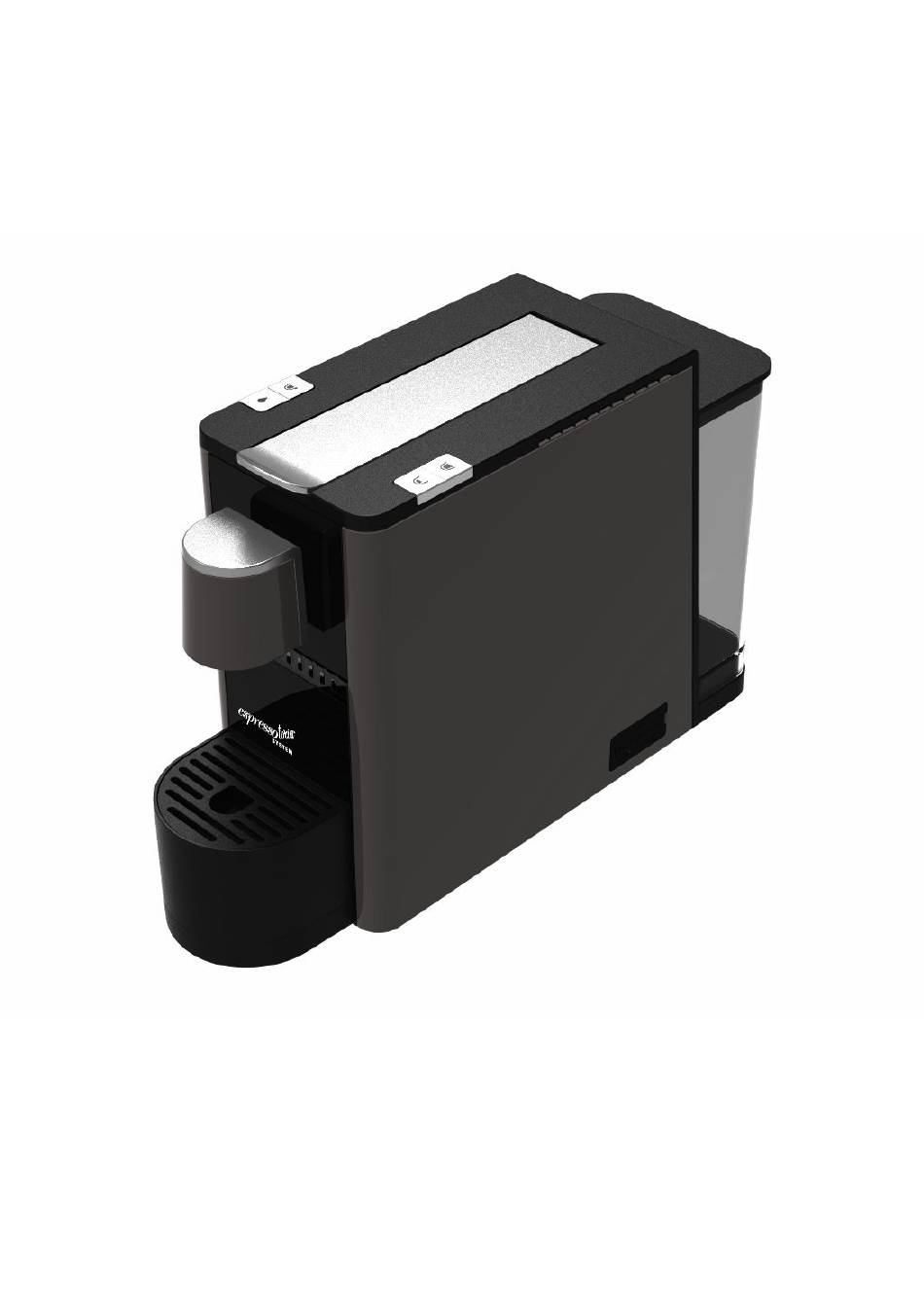

- Page 1 ® _____________________________Espressotoria System Automatic coffee capsule machine Instruction manual ™ Espressotoria Barista...
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS When using electrical appliances, in order to reduce the risk of fire, electric shock and/or injury, these basic safety precautions should always be followed: Read all instructions. Do not touch hot surfaces. Use handles or knobs. ... - Page 3 This appliance is intended to be used in household and similar applications only. Other than this application is not recommended, such as commercial use in restaurant and bar etc. This appliance is household use ONLY. Do not open the handle when the appliance is working. Scalding may occur if the handle is opened during the brewing cycles.
- Page 4 NOTE: A short power-supply cord (or detachable power-supply cord) is to be provided to reduce risks resulting from becoming entangled in or tripping over a longer cord. Longer detachable power-supply cords or extension cords are available and may be used if care is exercised in their use. ...
-
Page 5: Safety Instructions
50cm to hot surfaces or open flames. The appliance with power outlet (max. 4.5A 120V~) on the right housing of coffee machine, it is only for collect with the ESPRESSOTORIA® MILK FROTHER for making hot Intended utilization milk or milk froth. -
Page 6: Before Use
Before use Congratulations! Before using your new machine, please read this automatic espresso This Espressotoria Barista™ 2.0 operating manual carefully, keep it safe and pass it on and americano capsule machine to the next user. For further information please is a first-class product, manufactured with the greatest care. - Page 7 Overview 1. Water tank lid 2. Water tank 3. Power switch 4. Operating lever to load the capsules 5. Dispensing button small cup, coffee(Espresso) 6. Dispensing button large cup, coffee(Lungo) 7. Dispensing button for hot water only 8. Dispensing button for coffee + hot water (Americano) 9.
- Page 8 Starting up Filling the water tank Starting up / Preheating Filling without removing the tank Connecting the appliance ‧ Turn off the machine. ‧ Connect the machine to a ‧ Remove the water tank lid. grounded power point by ‧ Fill the tank up to the MAX plugging in the power plug.
-
Page 9: Making Coffee
Making coffee Making Espresso, Americano & dispensing hot water Hot water +coffee: Making coffee with this machine is 120ml / 4 fl. oz hot water only possible with capsules flow + 30ml / 1 fl. oz designed for this system. Use one coffee flow capsule per cup. -
Page 10: Energy Saving Mode
Energy saving mode / Programming the amount of water Programming the amount of water & coffee Energy saving mode ® With the ESPRESSOTORIA If the machine is not being Barista™ 2.0 Automatic used, after 5 minutes the capsule machine you can... - Page 11 Programmable quantity For button For button & ‧ Hold down the button small cup (min.30ml / 1 fl. oz to max.220ml / 7.4 fl. oz) until it starts to flash large cup (min. 30ml / 1 fl. oz to max.220ml / 7.4 fl. oz) blue rapidly (around 3 seconds).
-
Page 12: Maintenance
Maintenance Flushing out the machine and internal piping Before using for first time, or ‧ Hold the drip after long pauses (for example tray firmly and pull it out by holidays), the machine must be lifting gently. flushed out. This short ‧... - Page 13 ‧ Clean the machine with a Cleaning mode damp cloth and allow to dispensers with HOT dry afterwards. water. ‧ Never use abrasive cleaning Press dispensing buttons agents or materials. & for 3 Seconds, then both buttons glow blue, and release them until button Water tank glows blue.
- Page 14 Descale Storage / Final disposal Descale ‧ If the machine will not be Regularly descale the machine is used for some time, switch highly recommended to prevent it off and pull out limestone block the piping which the power plug. ‧...
- Page 15 1. Recommendations: purchase commercially available descaler (decalcifying liquid), and dilute according to the manufacturer‘s instructions; pour the mixture into the water tank. 2. Make sure the capsule container is empty. 3. Place a large bowl under the dispensing head to collect the decalcification liquid and limestone residues.
-
Page 16: Troubleshooting
In case of unprofessional repairs, no liability will be accepted for resultant damage and the guarantee is invalidated. If this troubleshooting guide does not help you solve your problem, please contact your Espressotoria® System Customer service on 1800 610 5512. - Page 17 Dispensing button machine is exposed to cold temperature for switch off machine, wait until it fast flashes Green prolonged time, the heating function is reaches room temperature and disabled for safety reasons restart. If the problem persists, contact the service center Dispensing button electronic malfunctioning let the machine cool down first, it will...
- Page 18 Simply purchase the ESPRESSOTORIA SYSTEM ® compatible MILK FROTHER, connect with your Espressotoria Barista™ 2.0 coffee capsule machine to make milk-based coffees. ESPRESSOTORIA ® SYSTEM compatible MILK FROTHER...
- Page 19 Vittoria Food & Beverage Corp. 3121 S La Cienega Blvd, Los Angeles CA 90016 United States...
