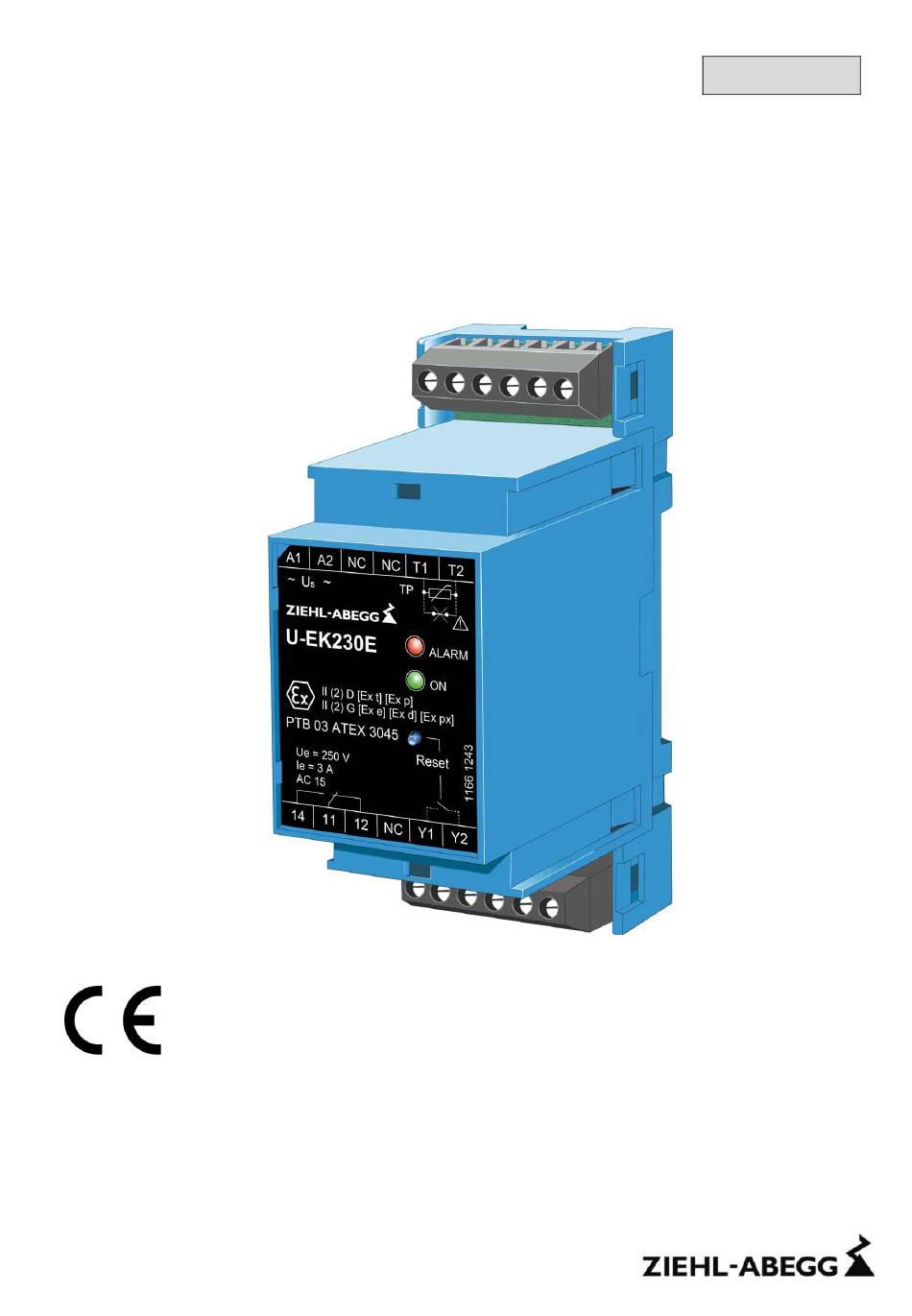

- Page 1 Operating Instructions English Type U-EK230E Part.-No. 382008 Motor protection- and releasing unit with thermistors “TP” (PTC thermistor relay) 0102 L-BAL-E185-GB 1902 Index 004 ZNo. 11660-0711-02 1/12...
-
Page 2: Table Of Contents
Contents Contents ............................ 2 General Notes ........................3 Application ......................... 3 Approvals .......................... 3 Features ..........................3 Connection proposal ......................4 Display- and control elements ................... 4 Detailed description ......................5 Function diagram ....................... 5 Installation / commissioning ....................5 10. -
Page 3: General Notes
2. Application Ziehl-Abegg PTC thermistor relays protect motors, transformers, machines and equipment against thermal overload. These are according to EN 60947-8 and are thus exchangeable. Used in conjunction with respective PTC thermistors they provide a reliable temperature protection in the temperature range 60 °C up to 180 °C. -
Page 4: Connection Proposal
5. Connection proposal Us = supply voltage H1 = indicator lamp fault S1 = off-switch F1-F4 = fuses S2 = push-button on K1 = contactor S3 = push-button external reset TP = PTC thermistor 6. Display- and control elements 1 = LED red „ALARM“ 2 = LED green „Power ON“... -
Page 5: Detailed Description
7. Detailed description A current monitors continuously the resistance of the PTC thermistors. In cold state, the resistance is ≤ 250 Ω per thermistor (thermistor circuit ≤ 1.5 kΩ). The relay has picked up and contacts 11/14 are closed. The resistance of the thermistor rises rapidly at detector operating temperature TNF. -
Page 6: Trouble-Shooting And Remedies
Danger! Hazardous voltage! Will cause death or serious injury. Turn off and lock out all power supplying this device before working on this device. • The device can be mounted on 35 mm rail EN 60715 or with screws M4 (Option) •... -
Page 7: Technical Data
11. Technical data Power supply Rated supply voltage Us AC 220-240 V Tolerance voltage Us 0.9 Us - 1.1 Us Frequency (AC) 50 / 60 Hz Tolerance frequency 45 Hz - 65 Hz Power consumption < 2 VA Thermistor connection PTC thermistor according DIN 44081/DIN 44082 1…6 thermistors in series Number... -
Page 8: Enclosure V2
Enclosure Form V2 Dimensions (H x W x D) mm 90 x 35 x 58 (AWG 22 – 14) Line connection solid wire 1 x 0.5 ... 2.5 mm Stranded wire with insulated ferrules 1 x 0.14 mm up to 1.5 mm Insulation strip length min. -
Page 9: Safety Instructions And References For Putting Into Operation
Safety Integrity Level (EN 61508) and safety related parameters Operating mode Hardware architecture HFT Safety Integrity Level low demand mode 1001 SIL 1 Type MTBF U-EK230E 52 years 4.26E-07 55 % 4.52E-07 6.10E-08 4.26E-07 Type Proof test 1year 3 years 5 years 10 years... - Page 10 Category and Performance-Level (EN ISO 13849-1) The devices fulfil the requirements of category 1 and PL = c. MTTF = 268 years. The data of the functional safety stated above are valid for an ambient temperature of 40 °C. Data for additional ambient temperatures can be obtained on request. Application of the safety device used with equipment category (EN 50495/VDE 0171-18) This standard describes the minimum requirements of safety integrity level and fault tolerance of a safety device in the application together with the category of the Equipment Ander Control...
-
Page 11: Proof Testing Of The Safety Functions
The manual resetting may be only possible, if all safety functions and protection device are effective. • Trip devices types U-EK230E have an interlock function. The stop instruction remains, until pressing the push-button „Reset“ a reset is made. A start-up is only possible, if no case of failure occurs and the motor is cooled down to a sufficient value of temperature. -
Page 12: Maintenance And Repair
17. Manufacturer reference Our products are manufactured in accordance with the relevant international regulations. If you have any questions concerning the use of our products or plan special uses, please contact: ZIEHL-ABEGG SE Heinz-Ziehl-Straße 74653 Künzelsau Telephone: +49 (0) 7940 16-0 info@ziehl-abegg.de...
