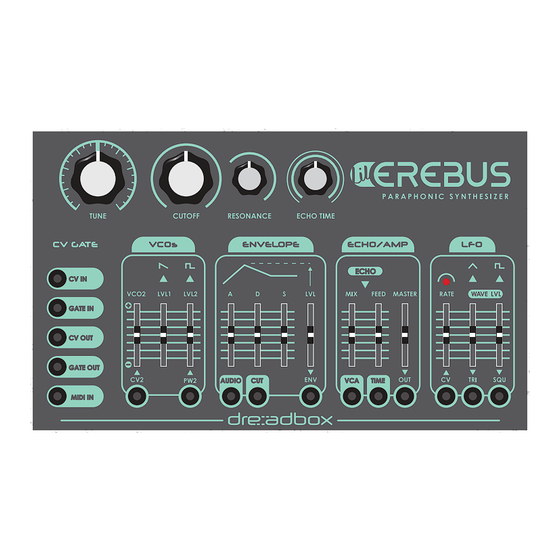

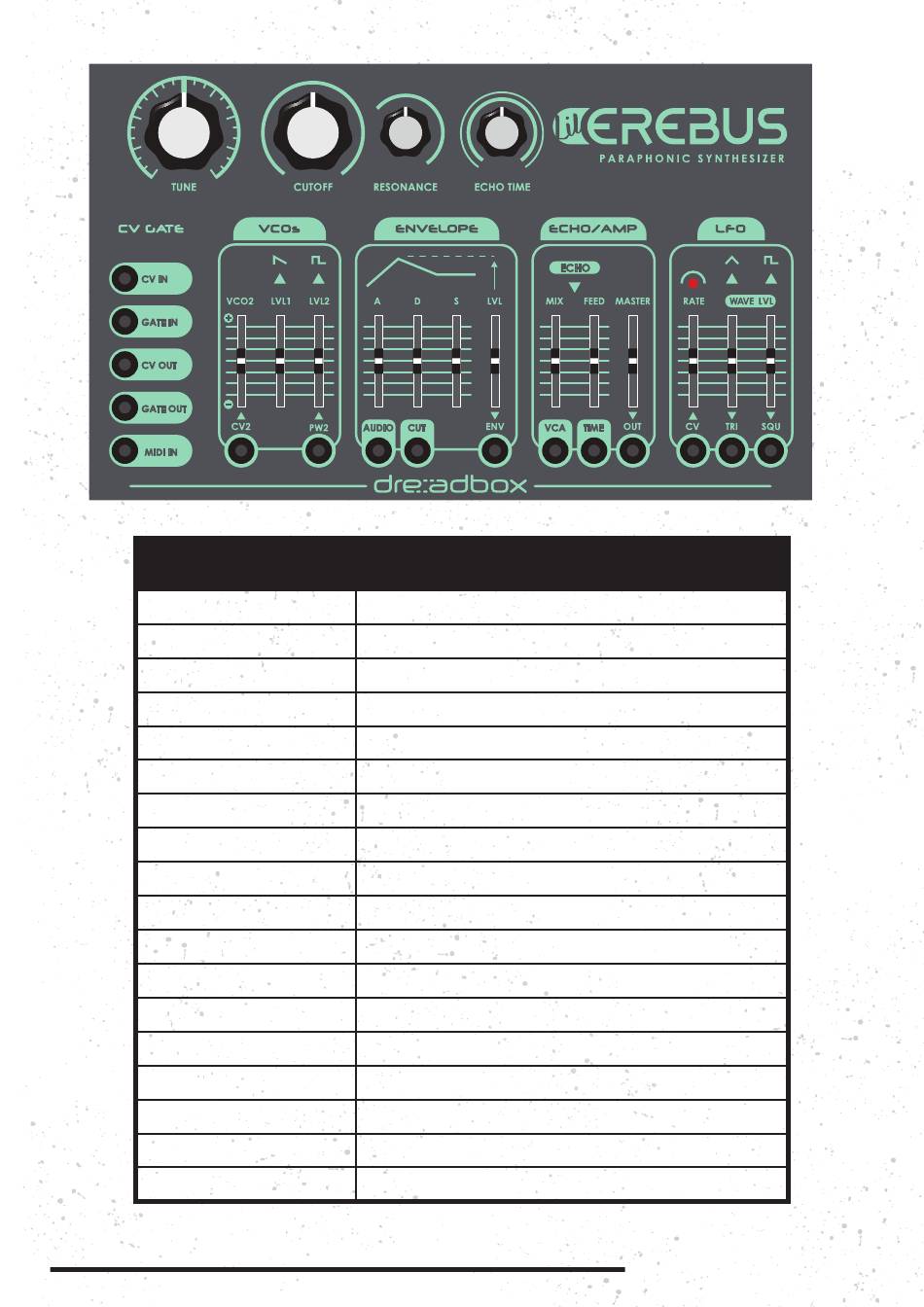

POTENTIOMETERS / SLIDERS
NAME
TUNE
CUT OFF
RESONANCE
ECHO TIME
VCO2 (VCO'S)
LVL1 (VCO'S)
LVL2 (VCO'S)
A (ENVELOPE)
D (ENVELOPE)
S (ENVELOPE)
LVL (ENVELOPE)
MIX (ECHO/AMP)
FEED (ECHO/AMP)
MASTER (ECHO/AMP)
RATE (LFO)
TRIANGLE (LFO)
SQUARE (LFO)
FUNCTION
PITCH CONTROL FOR BOTH VCO
FILTER CUT OFF FREQUENCY
FILTER FEEDBACK CONTROL
ECHO TIME. ABOVE 50% DELAY GETS DIRTY
VCO2 TUNING
VCO1 LEVEL
VCO2 LEVEL
ENVELOPE ATTACK TIME
ENVELOPE DECAY AND RELEASE TIME
ENVELOPE SUSTAIN LEVEL
ENVELOPE LEVEL (HARD-WIRED WITH CUT OFF)
BLEND BETWEEN CLEAN SOUND AND DELAYED
NUMBER OF ECHO REPEATS
MASTER LEVEL OF THE SYNTH
LFO RATE ( 2SEC UP TO ABOUT 8 HZ)
LFO SQUARE WAVE OUT
LFO SQUARE WAVE OUT
USER'S MANUAL
