REO REOVIB 506 Operating Instructions

Operating Instructions
REOVIB 506
Thyristor control unit for use with vibratory feeder units
The REOVIB 506 range of control units are suitable for powering vibratory feeders which have a mechanical vibrating frequency
which is the same as, or double that of mains frequency. The adjustment of feeder throughput is achieved by using a triac with
phase angle control. The setpoint for the feeder throughput can be derived from a potentiometer. The set point range can be
adjusted to suit the feeder unit by using trimmers (see "effects of trimmers Umin/Umax").
The units can operate with feeders which have a mechanical vibrating frequency 50 Hz or 100 Hz, ie 3000/6000 vibs/min (for 60 Hz
mains supply this would be 60 Hz or 100 Hz, ie 3600/7200 vibs/min). The vibrating frequency is determined internally. An enable
input is provided on terminals 1 and 2 for power free switching of the output (eg from a PLC).
To prevent surges when the unit is switched on, a soft starter is provided. This sof starter becomes effectif with all switchings
(mains "ON", enable "ON") and with set point adjustment. The semiconductors are protected against short -circuit current by an
internal short-circuit fuse.
The output voltage of the unit is fed back internally and compared with the adjusted set point in a regulating device. Deviations
which may be caused by mains variations or load changes are adjusted correspondingly.
The unit is supplied in a simple to install modular housing which is suitable for DIN rail mounting (EN 50022-35). The terminals have
safety covers, according to VBG 4 standards.

Technical data

Type REOVIB 506
Supply voltage
Output voltage
Output current
Frequency
Set point source
Enable input
Ambient operating temperature
Dimensions (h x w x d)
Protection
Other standards

Specified Use

The units described herein are electrical controllers for installation in industrial plant.
They are designed for power adjustment to resistive and inductive loads.

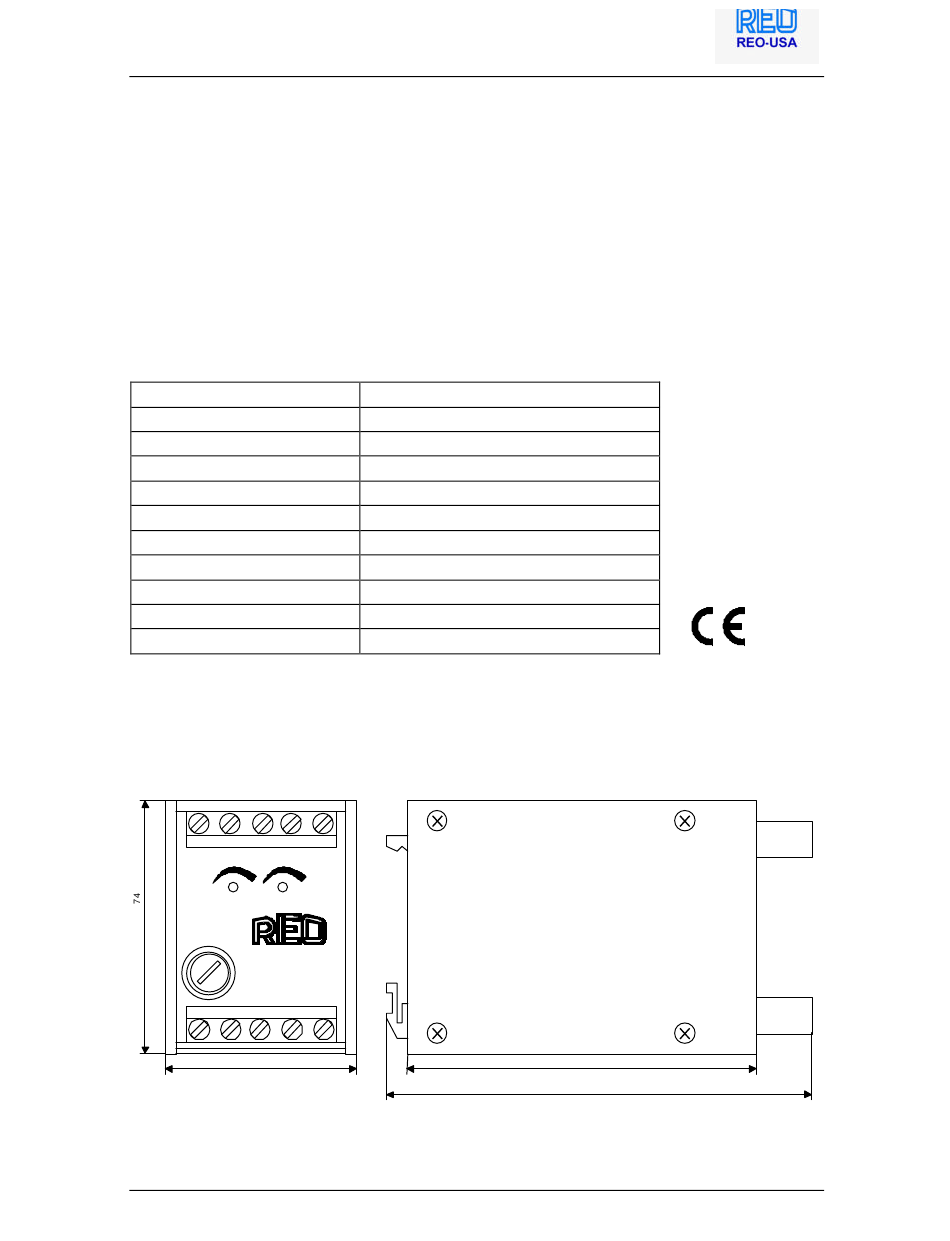

Dimensions drawing

1 3 4
2
Umax
Umin
ELEKTRONIK
REOVIB 506
8 9
45
Ordering code: REOVIB 506
REO-USA, Inc.
ID Nr. 50606
50606
230 V, + 6 % / - 10 %, 50/60 Hz
0 ... 220 V
0,5 ... 2 A
3000/6000 vibs./min (switchable)
Potentiometer 10 kΩ
Contact / 12...24 V, DC signal voltage Ri 10 kΩ
0...45 °C
74 x 45 x 125 mm
IP 00
IEC 801-2, IEC 801-4, EN 50081-1, VBG 4
5
10
ID-No. 50606
100
125
Publication No. 50606GB.Anl
04.98
