Introduction
Congratulations on your purchase of the CORNERED Ci speaker systems.
The Ci series is a feature packed range of loudspeakers designed for commercial in-
stallations. Emphasis is placed on discreet modern design, ease of installation, wide
and uniform coverage and excellent sound quality without the use of electronic signal
processing.

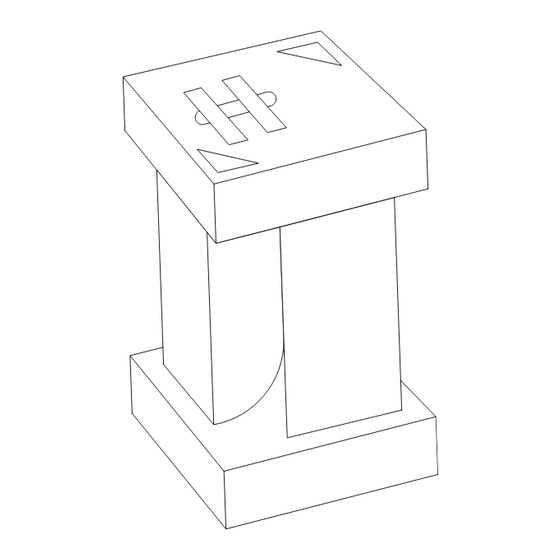

The triangular cabinet profile allows for discreet installation in corners or on walls and
ceilings. Cabinets can be coupled together to expand coverage and installation is fast
and simple with the integrated mounting points.
Please read the manual to ensure best possible performance from your CORNERED
loudspeaker.
Included in the box
Two speakers:
Ci4 and Ci5: 8 ohm
Ci4-V and Ci5-V: 8 ohm or 70/100V mode
Two sliders
Mounting screws
Mounting template
Manual
Advertisement
Table of Contents
Summary of Contents for Cornered Audio Ci series
- Page 1 Introduction Congratulations on your purchase of the CORNERED Ci speaker systems. The Ci series is a feature packed range of loudspeakers designed for commercial in- stallations. Emphasis is placed on discreet modern design, ease of installation, wide and uniform coverage and excellent sound quality without the use of electronic signal processing.
-
Page 2: Getting Started
Getting started Connections The Ci models are fitted with spring loaded terminals on the front baffle. Contacts will accept up to 2,5 sq. mm wire with an outside diameter of up to 10mm. Important: Always connect the red amplifier output (+) to the red speaker terminal in- put and the black amplifier output (-) to the black speaker input. - Page 3 Installation The Ci series can be mounted either in corners, on wall and ceilings with the integrat- ed mounting points or the slider bars. They can also be coupled together to extend coverage. CORNERED top-boxes are very light, but please make sure that the wall or ceiling is solid and can support the weight of the speaker before installing.
- Page 4 If the wall or ceiling is soft, or if you wish to mount the speakers away from the corner. Slide the speaker onto the sliders. • Mount the sliders to wall or ceiling by shading through the template. *Note that the arrow on the slider shall point towards the front of the speaker.
- Page 5 Cables Speaker cables present the amplifier with different loads. Cables with high capaci- tance, high inductance and high impedance have a strong negative influence on sound quality as well as amplifier reliability. In order to get the most out of the speaker sys- tem, avoid using thin speaker cables.
- Page 6 OFF. Outdoor mounting The Ci series is IP54 rated, so they can be placed outside. If installed outdoors, the insulation of the cabling should be resistant to water as well as the effects of tempera- ture and ultraviolet radiation from the sun.
- Page 7 Recommended amplifier CORNERED speakers have high minimum impedance, making them an easy load for amplifiers. Typical pro amplifiers will run three speakers per channel without problems. We recommend amplifiers with a minimum output on level with the highest recom- mended amplifier output in the specifications. As with all loudspeaker systems, power handling depends on the quality and size of the amplifier.
-
Page 8: Specifications
Specifications Power handling, IEC268: 30 watt Power handling, peak: 120 watt Sensitivity, 2,83V/1m: 84 dB Maximum SPL, long term: 99 dB Maximum SPL, peak: 105 dB Frequency response: 140-20.000 Hz Nominal impedance: 8 ohm Dispersion: 100x100 degrees Measurements: (HxWxD) 181x135x102mm Weight: 0,75 kg Colour:...
