Summary of Contents for AMS Furniture Strata Electric

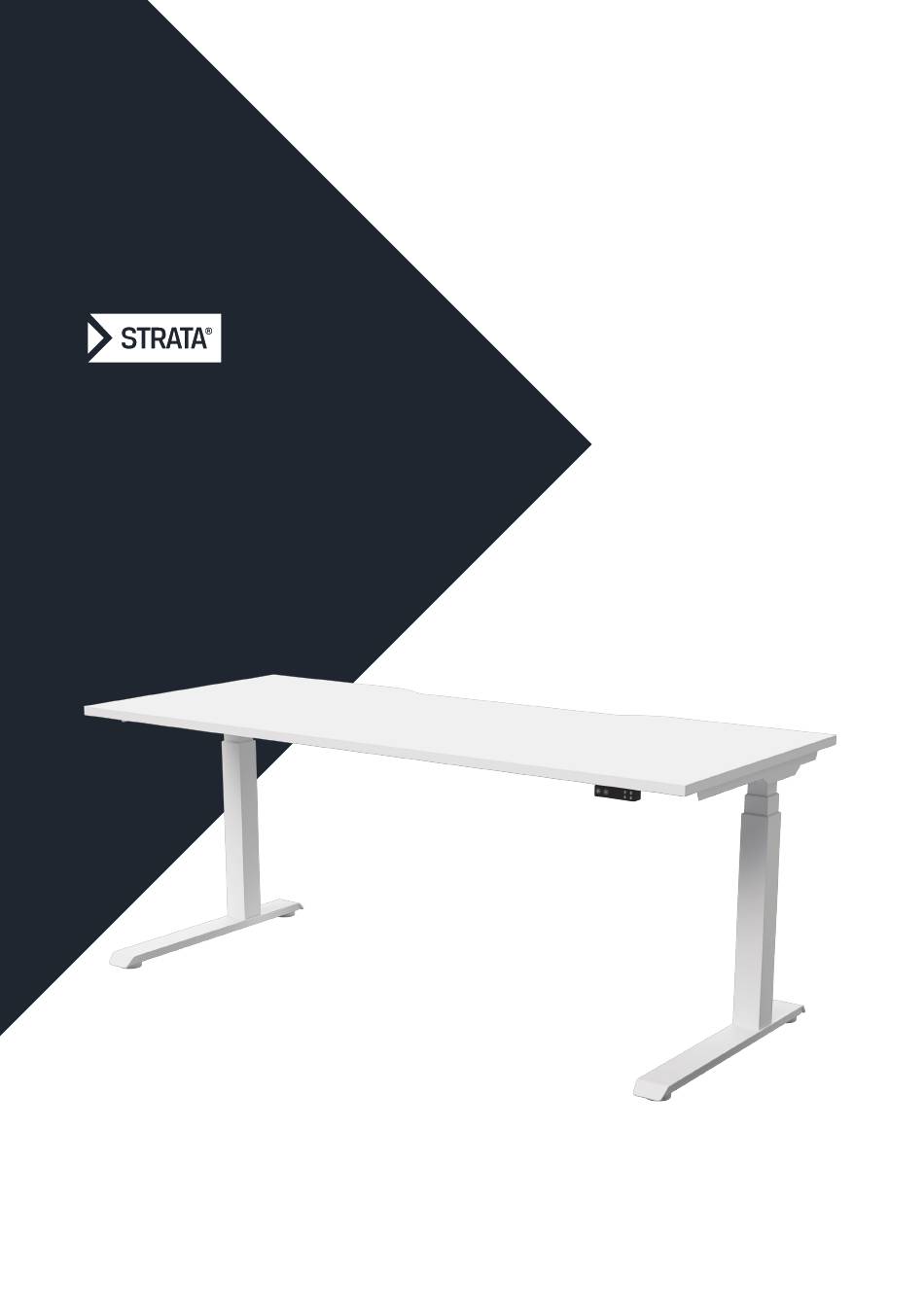

- Page 1 Straight Workstation Assembly Instructions Flexible Options. Consistent Style. Enduring Quality.
- Page 2 Screws Image Screw Description Tool M6 x 15 5mm Allen Wrench Phillips Screw Driver 4 x 25 or Cordless Drill Phillips Screw Driver 5 x 20 or Cordless Drill M10 x 35 5mm Allen Wrench Leveler Hand STRATA ELECTRIC...
- Page 3 Step 1 Take the main frame out of the box. Step 2 Put the main frame on the back side of the wood top. Straight Workstation Assembly Instructions...
- Page 4 Step 3 Install the top side frame to the main frame. Step 4 Set the columns straight. STRATA ELECTRIC...
- Page 5 Step 5 Attach 2 of the Inner Frame (F) to the Mid Post Frame Left (I). Step 6 Adjust the width to fit the wood top. Straight Workstation Assembly Instructions...
- Page 6 Install the handset with 2 x Screw B, then install 18 x Screw C to secure the worktop. Step 8 Tie up the tailstock screws (4) at the inner side of the main frame. Tighten the 4 screws on the telescopic frame to firmly secure it at the right length. STRATA ELECTRIC...
-
Page 7: Straight Workstation Assembly Instructions
Step 9 Install the feet with 19 x Screw D, then install the glides. Step 10 Flip over the table. Straight Workstation Assembly Instructions... - Page 8 Press and hold - and + at the same time for 5 seconds. The desk buzzer will buzz once the desk has finished reverting back to the preset height. 3 Memory Position Buttons 22.5mm 22.5mm 100mm Height Adjust Buttons Memory Setting Button STRATA ELECTRIC...
- Page 9 Finished Straight Workstation Assembly Instructions...
- Page 10 Flexible Options. Consistent Style. Enduring Quality.
