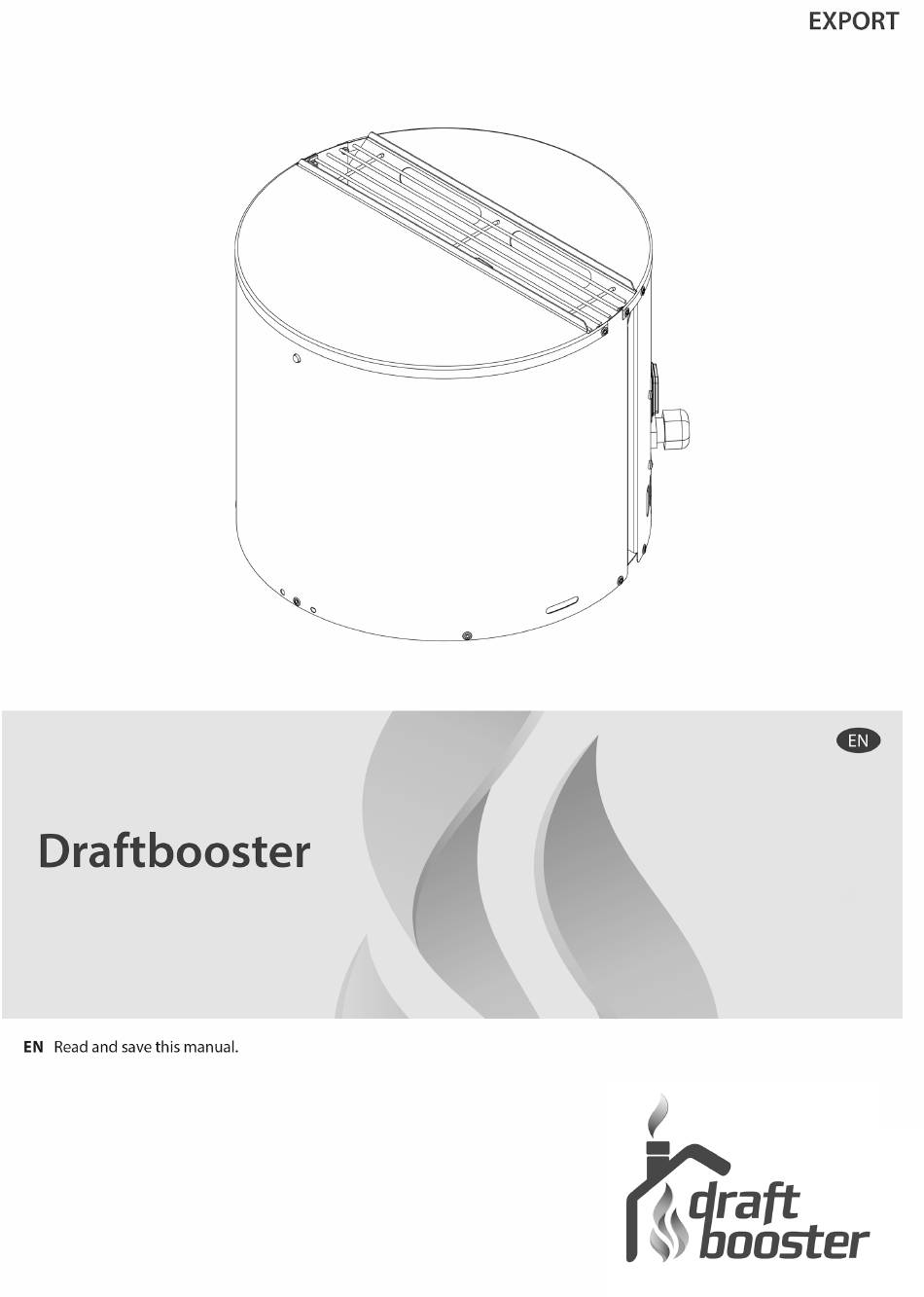

Draftbooster DB7*0 Series Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DB7*0 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Draftbooster DB7*0 Series

  • Page 3: Package Contents

    Function Scope The Draftbooster is a fan for mounting on top of the chimney. The Draftbooster is designed to facilitate ignition and refueling. It is designed for wood burning stoves or closed inserts with a nominal effect of maximum 8 kW. The Draftbooster comes with a flexible flange, a 5-meter cord prepared with plug, and an integrated isolation switch.

  • Page 4: Warranty

    The product is covered by national guarantee and warranty rules from the date of purchase. Replacement or repair of the Draftbooster is handled at the exclusive discretion of the manufacturer, if a factory inspection detects a defect in materials or manufacturing.

  • Page 5: Installation

    • UK 3120034-DB7-DK-SE-NO-UK-DE Installation 4.5.1 Assembly parts Be aware of sharp and pointy parts.
  • Page 6 UK • 3120034-DB7-DK-SE-NO-UK-DE 4.5.2 Assembling the bottom flange 4.5.3 Adjusting the flexible flange After assembling the bottom flange, adjust the flange legs to fitting the inner diameter of your chimney and fix the legs in this position. The example below shows the setting for an inside chimney diameter of ø150 mm. The legs must be fastened permanently in the adequate position with the 4 self-tapping screws.
  • Page 7 • UK 3120034-DB7-DK-SE-NO-UK-DE 4.5.4 Installing the bottom flange and wire on the Draftbooster...
  • Page 8 Wrap the wire around the chimney and through the wire lock.Tighten the wire in a downward direction and tighten the wire lock. The wire must be tight to secure that the Draftbooster stays on the chimney, but not so tight that it makes the Draftbooster tilt.
  • Page 9 Begin by attaching the wire bracket to the chimney, tighten the loop, and clamp down the wire lock. The wire is tightend in a downward direction - enough to secure that the Draftbooster stays on the chimney, but not so tight that it makes the Draftbooster tilt.

  • Page 10: Electrical Wiring

    - If defects are detected, these must be repaired before using the Draftbooster and the stove again. */** NOTE: If the Draftbooster does not draw the smoke from the match towards the top of the stove, or if you cannot hear the Draftbooster running, do not light the fire.

  • Page 11: Maintenance And Troubleshooting

    3120034-DB7-DK-SE-NO-UK-DE Maintenance and troubleshooting The Draftbooster must be inspected at least once a year in connection with inspection of the chimney. Soot and other deposits must be removed from the rotor blades and from the bottom of the motor housing.

  • Page 12: Declaration Of Conformity

    Declaration of Conformity DK: EU-Overensstemmelseserklæring NL: EU-Conformiteits verklaring GB: Declaration of Conformity SE: EU-Överensstämmelsedeklaration DE: EU-Konformitätserklärung EU-Vaatimustenmukaisuusvakuutus FR: Déclaration de conformité de l’Union Européenne ESS-Samræmisstaðfesting NO: EU-Samsvarserklæring Dichiarazione di Conformità Unione Europea PL: EU Deklaracja zgodności exodraft a/s DANMARK erklærer på eget ansvar, at følgende produkter: veklaart dat onderstaande producten: hereby declares that the following products: deklarerar på...
  • Page 13 www.draft-booster.com...
