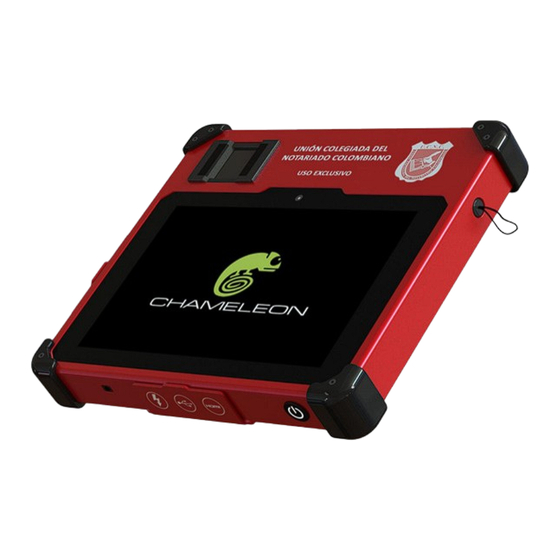

- Page 1 Chameleon 8 01 User Manual Chameleon™ . All rights reserved . 2017...
- Page 2 ™ Chameleon™ . All rights reserved . 2017...
- Page 3 NOTICE: This catalog provides a summary of the basic product specifications and features. Before using each product, please thoroughly read this user manual. Because of our continuous research for improvements, the contents in this catalog may be changed without prior notice. Since the image of each product is printed, the color of the photo may be different from that of the real product.
-
Page 4: Table Of Contents
1.10 Insert SIM………………………………………………………………………………………………….. 1.11 Insert SD……………………………………………………………………………………………………….. 1.12 Insert Headphones ………………………………………………………………………………… 1.13 Tablet Lock………………………………………………………………………………………………. 1.14 Stylus (Digital Signature Pen)…………………………………………………….. 1.15 Fingerprint Capture………………………………………………………………………. 1.16 General Notes…………………………………………………………………………… 2. Troubleshooting……………………………………………………………………………………………. 17-19 3. Product Specifications……………………………………………………………………………………. 4. Health and Safety Information……………………………………………………………………….. Chameleon™ . All rights reserved . 2017... -
Page 5: Hardware
Weight: 1.4kg Tracking & Security Label Tamper Evident Seal • Each Chameleon device is neatly foam-packaged inside a clearly marked carton box. • Each box is sealed with a tamper evident seal to ensure quality and authenticity. • Check to ensure that the ‘Tracking & Security Label’ on the side of box is an exact copy of the ‘Tracking &... -
Page 6: Contents
1.2 Contents 1 x Chameleon Biometric Tablet (with Stylus) 1 x DC Charger 1 x User Manual 1 x AAA Spare Stylus Battery 1 x Screen Cleaning Cloth Chameleon™ . All rights reserved . 2017... -
Page 7: Tablet Details
1.3 Tablet Details Optical Fingerprint Scanner Front Camera 8” Touch Screen Rugged Corners ON/OFF Switch HDMI Port Lock Slot USB Port USB Port DC Charge Input SIM Port TF Port Headphones Microphone (micro SD) Chameleon™ . All rights reserved . 2017... - Page 8 1.3 Tablet Details Speaker Tracking & Security Label Tamper Proof Seal Back Camera & Flash Stylus Pen Chameleon™ . All rights reserved . 2017...
-
Page 9: Tablet Details
1.3 Tablet Details DIMENSIONS: 227mm x 197mm x 35mm WEIGHT: 990g Chameleon™ . All rights reserved . 2017... -
Page 10: Device Labeling And Security
1.4 Device Labeling and Security Tracking and Security Tamper Evident Labels (Located on the back of device) DO NOT REMOVE!!!! 30mm Unique Serial-Number 45mm QR-Code Unique Serial-Number Unique IMEI- Number Certifications Chameleon™ . All rights reserved . 2017... -
Page 11: Charger Details
LED light on power button turns off. • If system can’t shut down via OS, press and hold the power button for 20 seconds to initiate a complete system reset. Chameleon™ . All rights reserved . 2017... -
Page 12: Charge Device
The blue power button LED light will turn on OS will indicate when device is charging. for 3 seconds. • This is the indication that the device is receiving power and charging the battery. Chameleon™ . All rights reserved . 2017... -
Page 13: Insert Usb
1.8 Insert USB Insert USB into any of the 2 x available USB2.0 slots 1.9 Insert HDMI Insert Micro HDMI into the one available Micro HDMI slot Chameleon™ . All rights reserved . 2017... -
Page 14: Insert Sim
Make sure SIM orientation is correct as per illustration. 1.11 Insert SD Insert TF (Micro SD) card into FT card slot. Make sure that the card orientation is correct as per illustration. Chameleon™ . All rights reserved . 2017... -
Page 15: Insert Headphones
1.12 Insert Headphones 3.5mm Jack Insert 3.5mm Headphone Jack into Audio Socket. 1.13 Tablet Lock Protected by Kensington® lock compatibility Chameleon™ . All rights reserved . 2017... -
Page 16: Stylus (Digital Signature Pen)
Primary Button Eraser Button String • • Click to select and hold Hold down button to Attachment down to activate sub- erase digital lines. windows. Removable End Cap Replacing the Stylus Battery: Chameleon™ . All rights reserved . 2017... -
Page 17: Fingerprint Capture
• Do not try to force fit any card or cable into the device ports. • DO NOT OPEN THE DEVICE! Only manufacturer trained and approved technicians are allowed to open the device. Chameleon™ . All rights reserved . 2017... -
Page 18: Troubleshooting
4.A: Note that sim cards are not hot-swappable! Tablet must be shut down (not only restarted) before replacing sim cards. If problem persists, check if modem in detected in device manager and confirm that latest drivers are installed. Contact technical support should problem persist. Chameleon™ . All rights reserved . 2017... - Page 19 Wi-Fi Connectivity 802.11 b/g/n Bluetooth Connectivity Bluetooth 4.0 Camera Back: Integrated 8.0 mega pixels, auto focus and LED flash Front : 2.0 Mega Pixels Integrated Monolithic GPS and GLONASS Receiver Sensor 3Axis Sensor Chameleon™ . All rights reserved . 2017...
- Page 20 1 x DC Charge Port 1 X Audio Port (Supports 3.5mm Headphone Jack) Protective Casing Rugged IP65 Protective Housing Anti-impact ABS-PC Shell Rubberized Corners MIL-STD-810G 1.5m Drop Tested Water Resistant, Dust Proof and Shock Resistant Chameleon™ . All rights reserved . 2017...
- Page 21 Active Force between 20g and 500g Win 10 Certified Dimensions 227mm x 197mm x 35mm Weight 990g Environmental conditions: Operating conditions: Storage Temperature C ~ +50 C ~ +60 Humidity 10%<RH<90% 5%<RH<95% (non-condensing) Chameleon™ . All rights reserved . 2017...
-
Page 22: Health And Safety Information
Although your mobile device is quite sturdy, it is a complex piece of equipment and can be broken. Avoid dropping, hitting, bending, or sitting on it. Keep your Chameleon device away from liquids of any kind. Precipitation, humidity, and liquids contain minerals that will corrode electronic circuits. -
Page 23: Chameleon™ . All Rights Reserved
Chameleon™ . All rights reserved . 2017... - Page 24 FCC RF EXPOSURE INFORMATION: WARNING!! Read this information before using your Tablet In August 1986 the Federal Communications Commission (FCC) of the United States with its action in Report and Outer FCC 96-326 adopted an updated safety standard for human exposure to radio frequency (RF) electromagnetic energy emitted by FCC regulated transmitters.
- Page 25 (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment.
