Summary of Contents for Jabra Evolve 75e
- Page 1 Jabra Evolve 75e User manual...
- Page 2 ® © 2017 GN Audio A /S. All rights reserved. Jabra is a ® trademark of GN Audio A/S. The Bluetooth word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by GN Audio A/S is under license.
- Page 3 1. Welcome .........5 2. Jabra Evolve 75e overview ..6 2.1 Included accessories 3. How to wear ........7 3.1 Getting the correct fit 3.2 Attaching the EarWings 3.3 Using the magnetic earbuds 4. How to charge ......11 4.1 What the LEDs mean 5.
- Page 4 6.9 Vibrate alert 6.10 How to reset 6.11 Firmware update 7. Support ........28 7.1 FAQ 7.2 How to care for your earbuds...
- Page 5 1. Welcome Thank you for using the Jabra Evolve 75e. We hope you will enjoy it! Jabra Evolve 75e features • UC certified microphone technology • Active Noise Cancellation (ANC) to eliminate disturbances • Integrated Busylight to prevent interruptions • Power battery to fuel all-day use (up to 12 hours on a 2 hour charge) •...
-
Page 6: Included Accessories

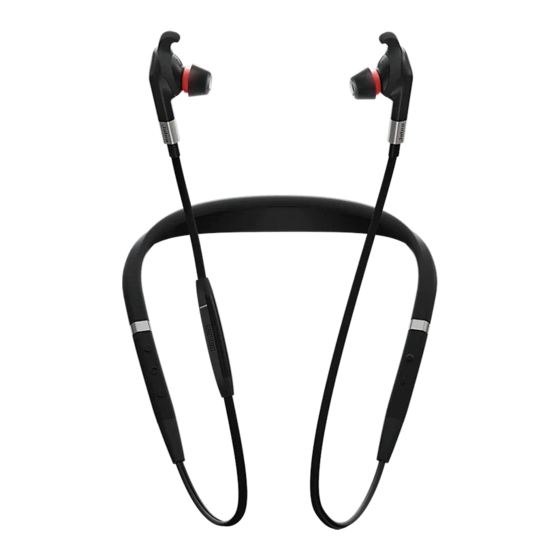

2. Jabra Evolve 75e overview Vibrating neckband USB charging Magnetic zone Volume up Busylight Next track (hold) Battery/ Audio mode LED Bluetooth LED Cycle between Power on/off (hold) ANC and Hear- Answer/end call Through modes Play/pause music Listen-in (hold) Volume down... -
Page 7: How To Wear
3. How to wear Jabra Evolve 75e is designed to be worn around the neck. For the optimal call experience, position the microphone as close to your mouth as possible. -
Page 8: Getting The Correct Fit
3.1 Getting the correct fit The earbuds are supplied with three EarGel and EarWing sizes: large, medium and small. Small Small Medium Medium Large Large It is highly recommended to mix and match the different EarGel and EarWing sizes to find the best combination for your ear. - Page 9 3.2 Attaching the EarWings To properly attach the EarWing, align the indent on the EarWing (as illustrated) with the ridge on the earbud, and stretch the EarWing over the earbud. It will fit perfectly in the groove when properly attached.
-
Page 10: Using The Magnetic Earbuds
3.3 Using the magnetic earbuds The earbuds are magnetic, and connect together for convenient cable and power management. When earbuds connected, your music will be paused or your call will be ended. Go to section 6.1. for more information. -
Page 11: How To Charge
To charge the earbuds, connect a USB charging cable to the USB charging port on the neckband. It is recommended to charge the earbuds using the supplied Jabra charging cable, however it is possible to charge the earbuds using your smartphone charger. -
Page 12: What The Leds Mean
4.1 What the LEDs mean ANC/Listen-in Battery LED Full Medium ANC on Listen-in on Very low Pairing mode Resetting Busylight LED Busy Incoming call... -
Page 13: How To Connect
5. How to connect 5.1 Power on/off On: Hold the Multi-function button for 1 second. The LED will flash green, and the neckband will vibrate. Off: Hold the Multi-function button for 3 seconds. The LED will flash red, and the neckband will vibrate. -
Page 14: Connecting To A Computer
5.2 Connecting to a computer (Bluetooth adapter) 1. Insert the Bluetooth adapter (Jabra Link 370) into your computer. 2. Hold (1 sec) the Multi-function button on the earbuds to power them on. The earbuds and the Bluetooth adapter are pre-paired and will automatically connect. -
Page 15: Pairing With A Smartphone
5.3 Connecting to a computer (USB cable) 1. Ensure the earbuds are powered on. 2. Plug the earbuds into a USB port on your computer using the supplied USB cable. 5.4 Pairing with a smartphone 1. Ensure the earbuds are powered off, and then hold (3 secs) the Multi-function button until the LED flashes blue and you hear an announcement in the earbuds. -
Page 16: How To Use
6. How to use Magnetic zone Volume up Busylight button Audio mode Multi-function Audio mode button button Volume down Mute/Voice button button 6.1 Calls & music Calls & music Hold (1 sec) the Power on Multi-function button Hold (3 sec) the Power off Multi-function button Hold (1 sec) the... - Page 17 Answer/end Detach/attach the call or play/ magnetic earbuds pause music Press the Volume up or Volume down button, Adjust volume when listening to music or on a call Hold (1 sec) the Volume up Next track button (smartphone only) Hold (1 sec) the Previous track Volume down button (smartphone only)
- Page 18 6.2 Active Noise Cancellation (ANC) The earbuds use Active Noise Cancellation (ANC) eliminate outside disturbance, allowing you to fully focus. Press the Audio mode button to cycle through the available options. 2 sec...
- Page 19 6.3 HearThrough HearThrough enables you to hear your surroundings without needing to remove the earbuds. Your music will not be muted. Press the Audio mode button to cycle through the available options.
- Page 20 6.4 Listen-in Listen-in enables you to engage in conversations without needing to remove the earbuds. Your music will be muted. Hold (2 secs) the Audio mode button to activate Listen-in. 2 sec...
-
Page 21: Voice Guidance
6.5 Voice guidance Voice guidance are announcements intended to guide you or give earbud status updates (e.g. connection and battery status). How to turn voice guidance On/Off Voice guidance is enabled by default. Voice Guidance On: Ensure the earbuds are powered on, and then hold the Mute/Voice button for 5 seconds. -
Page 22: Siri Or Google Now
6.6 Siri or Google Now Phone voice commands enable you to speak to Siri or Google Now on your smartphone using your earbuds. For more information on using Siri or Google Now, please refer to your smartphone’s user manual. Phone voice commands Activate Siri Press the Mute/Voice or Google... -
Page 23: Multiple Call Handling
6.7 Multiple call handling The earbuds can answer or reject calls when you are already on a call. Multiple call handling Press the End current call and Multi-function answer incoming call button Put current call on Hold (1 secs) the hold and answer Multi-function incoming call button... - Page 24 6.8 Busylight The Busylight lets others know when you are busy or on a call. Busylight Press both the Volume up and Volume down Busylight buttons simultaneously on/off to turn the Busylight on/off To disable (or re-enable) the Busylight function, hold both the Volume up and Volume down buttons simultaneously for 3 seconds.
-
Page 25: Vibrate Alert
6.9 Vibrate alert The earbuds will vibrate whenever they are powered on/off, connected to your smartphone or computer, or whenever there is an incoming call. -
Page 26: How To Reset
After resetting, it is necessary to re-pair the earbuds to your smartphone or to your Bluetooth adapter (Jabra Link 370). Please note that Jabra Direct is required to re-pair the earbuds to the Bluetooth adapter. Reset Ensure the earbuds are powered on and you are not on a call. -
Page 27: Firmware Update
1. Connect the Jabra Evolve 75e to a computer using the USB cable or Jabra Link 370. 2. Install Jabra Direct on your computer, or Suite for Mac on your Mac. 3. Use Jabra Direct or Suite for Mac to check for the latest firmware updates. - Page 28 7. Support 7.1 FAQ View the FAQs on Jabra.com/Evolve75e 7.2 How to care for your earbuds • Always store the earbuds with the power off and safely protected. • Avoid storage at extreme temperatures (above 50°C/122°F or below -10°C/14°F). This can shorten battery life and may affect the earbuds.
- Page 29 jabra.com/evolve75e...
