Oticon Radio Model - Quick Installation Guide
Radio Model Name:
Fusion 2 BTE13PP
The Fusion 2 BTE13PP radio model is a low power, short range, inductive radio transceiver working at 3.84 MHz. It can be seen below:
The most important parts of the radio module are a Digital-Signal-Processor (DSP), a radio Front-End (FE), an EEPROM memory, a telecoil and an antenna coil –
all mounted on the same main flex PCB. On the top side besides the radio Front-End, EEPROM and telecoil, also switches for user inter action (e.g. volume
control), two microphones, a programming plug and pads for connecting the battery can be seen. The radio model is intended to be installed in Oticon, Bernafon,
Sonic and affiliated wireless hearing aid devices of the BTE (Behind-The-Ear) PP (Power Plus) wearing styles.
Oticon A/S
Main +45 39 17 71 00

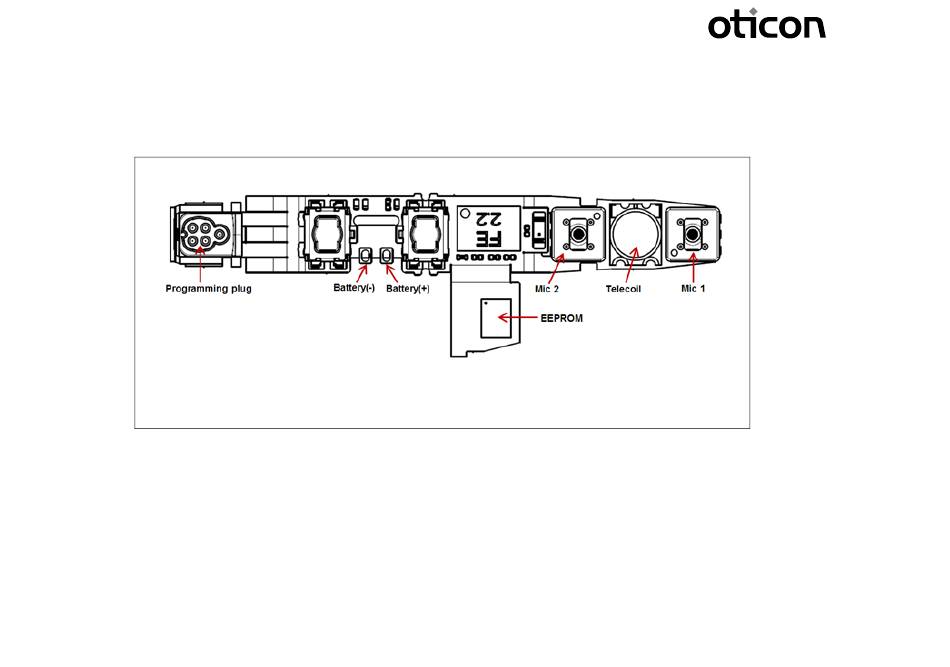

Fusion 2 BTE13PP Radio Model – Top Side
Kongebakken 9
Fax +45 39 27 79 00
DK-2765 Smørum
Denmark
PEOPLE FIRST
www.oticon.com
CVR-no. 42334219
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for oticon Fusion 2 BTE13PP
Summary of Contents for oticon Fusion 2 BTE13PP
- Page 1 PCB. On the top side besides the radio Front-End, EEPROM and telecoil, also switches for user inter action (e.g. volume control), two microphones, a programming plug and pads for connecting the battery can be seen. The radio model is intended to be installed in Oticon, Bernafon, Sonic and affiliated wireless hearing aid devices of the BTE (Behind-The-Ear) PP (Power Plus) wearing styles.
- Page 2 The DSP is the main processor controlling the functionality of the amplifier and the FE is a complete radio transceiver, including both transmitter, receiver and buffered data programming inputs local oscillators. The Fusion 2 BTE13PP radio module also includes all voltage regulators inside the DSP and FE and (PC_DATA and PC_CLOCK) on board Fusion 2 BTE13PP Radio Model –...
- Page 3 Changes or modifications made to this equipment not expressly approved by Oticon A/S may void the FCC authorization to operate this equipment. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence.
