Hirschmann BAT-C User Manual

Industrial wireless lan client
Hide thumbs Also See for BAT-C:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
User Manual
Installation
Industrial Wireless LAN Client
BAT-C
BAT-C
Release 05 11/2017
https://hirschmann-support.belden.eu.com
Technical Support

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BAT-C and is the answer not in the manual?

Questions and answers

Related Manuals for Hirschmann BAT-C

Summary of Contents for Hirschmann BAT-C

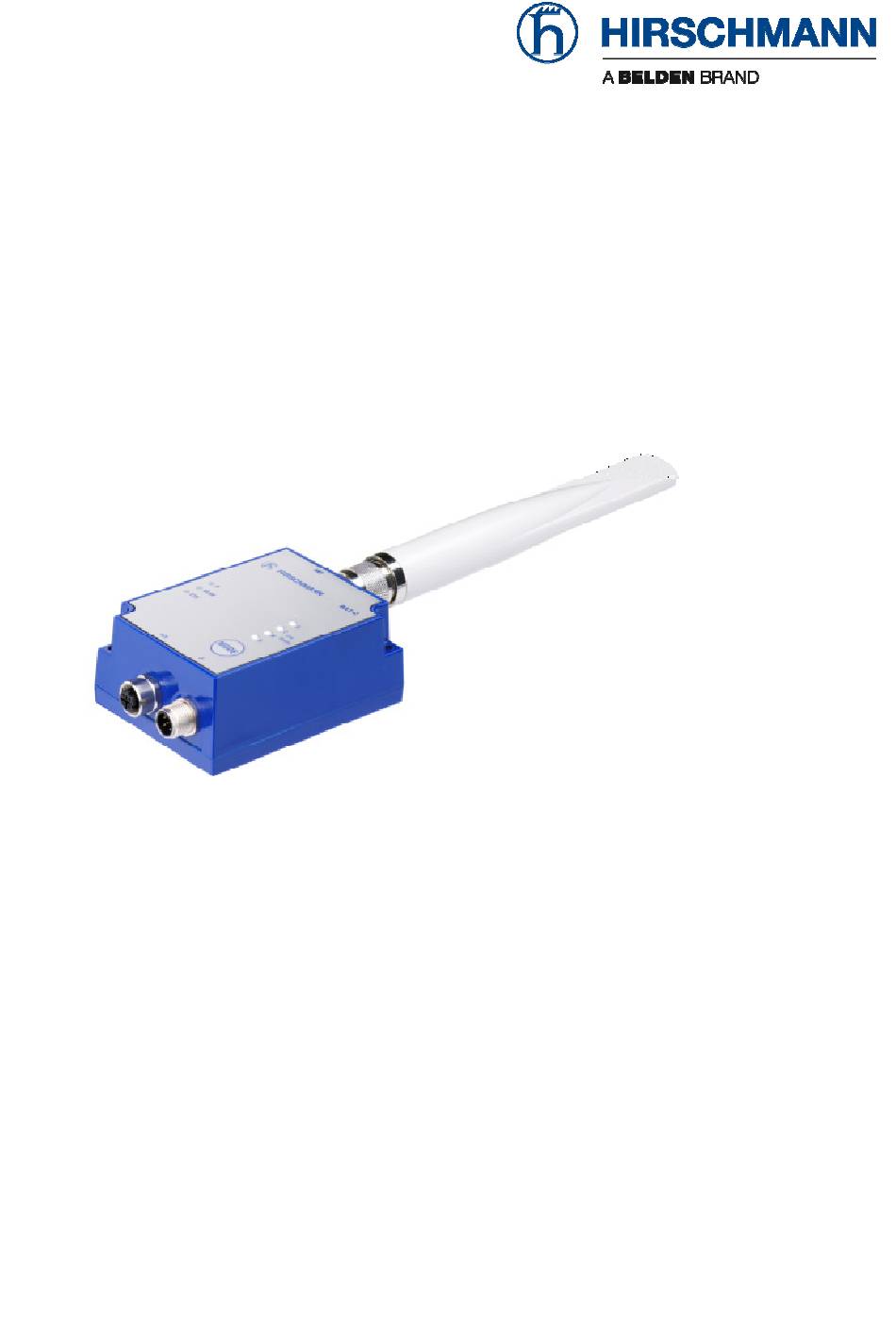

  • Page 1 User Manual Installation Industrial Wireless LAN Client BAT-C Technical Support BAT-C https://hirschmann-support.belden.eu.com Release 05 11/2017...
  • Page 2 In addition, we refer to the conditions of use specified in the license contract. You can get the latest version of this manual on the Internet at the Hirschmann product site (www.hirschmann.com).

  • Page 3: Table Of Contents

    Ethernet interface Status indicators Configuration Using the WEB configuration Two BAT-Cs Connected in Client mode 2.2.1 How to setup this example? Flash Loader and Firmware upgrade Advanced Mode Flash Modes Limitations Technical data A Further Support BAT-C Release 05 11/2017...

  • Page 4: Safety Instructions

    Note: Contains important information on the product, on how to manage the product, or on the respective section of the documentation to which your special attention is being drawn. BAT-C Release 05 11/2017...
  • Page 5 Failure to follow these instructions can result in death, serious injury, or equipment damage. BAT-C Release 05 11/2017...
  • Page 6 Note: Set up the antenna close to the device. Use the shortest antenna cable possible to minimize attenuation. Note: Connectors are subject to corrosion in outdoor WLAN installations which can result in higher attenuation. Seal the outdoor connectors with water and weather resistant tape. BAT-C Release 05 11/2017...
  • Page 7 (see on page 26 “Accessories”). Installing this lightening protection element between an antenna and a BAT-C does not alone provide sufficient protection against a lightening strike. The BAT Protector lightening protection element only works as part of a comprehensive lightening protection concept. If you have any questions relating to this, contact a qualified dealer.
  • Page 8 2014/53/EU (RED) Directive of the European Parliament and of the council on the harmonization of the laws of the Member States relating to the makingavailable on the market of radio equipment. BAT-C Release 05 11/2017...
  • Page 9 In accordance with the above-named EU directive(s), the EU conformity declaration will be at the disposal of the relevant authorities at the following address: Hirschmann Automation and Control GmbH Stuttgarter Str. 45-51 72654 Neckartenzlingen Germany This product can be used in living areas, place of business, small business and in industrial areas.
  • Page 10 CAUTION Any changes or modifications NOT explicitly APPROVED by Hirschmann Automation and Control GmbH could cause the module to cease to comply with FCC rules part 15, and thus void the user's authority to operate the equipment. ■ IC Compliance Operation is subject to the following two conditions: 1.
  • Page 11 Maintenance ■ When designing this device, Hirschmann was largely able to forego □ using parts that are subject to wear and tear. The parts subject to wear are designed to last longer than the lifetime of the product when it is operated properly.

  • Page 12: About This Manual

    ■ Related Documents BAT-C User Manual Configuration and Administration. This is a quick setup guide to be able to setup the BAT-C for the simplest out-of- the-box applications. BAT-C CLI-Reference. This is a detailed specification/reference for the supported AT commands.

  • Page 13: Installation

    Installation BAT-C Release 05 11/2017...

  • Page 14: Ethernet Interface

    An established WLAN connection detected. WLAN Blue/Purple/Red Flashing This display indicates Blue WLAN data activity. WLAN Blue/Purple/Red Purple This display indicates an attempt to establish a connection to another WLAN device. WLAN Blue/Purple/Red Indicates a detected Error. BAT-C Release 05 11/2017...
  • Page 15 Description Color Status Meaning WLAN Blue/Purple/Red No WLAN activity. Yellow Ethernet link is present. Yellow Flashing Ethernet data activity. Yellow No Ethernet connection. BAT-C Release 05 11/2017...

  • Page 16: Configuration

    Configuration Using the WEB configuration By default, the BAT-C is a DHCP Client and Relay, which has an IP address: 172.23.56.99, subnet mask: 255.255.255.0 and default gateway: 172.23.56.99. To access the BAT-C by the Web based configuration interface the computer is set up in the same network, i.e.
  • Page 17 BAT-C Release 05 11/2017...

  • Page 18: Two Bat-Cs Connected In Client Mode

    This example is using two BAT-Cs connected in Client mode. This example supports one Ethernet device connected to each of the BAT- Cs. Connect the BAT-C to a WLAN Access Point that allows you to access the Managed (Infrastructure) mode resulting in a higher performance.
  • Page 19 Choose the SSID of the Access Point. WLAN Address Enter the MAC address of the device to which the BAT-C is to connect or use SMART to assign the MAC address (see next bullet). Note: Use the SMART mode 11 as an alternate for entering the MAC address manually.

  • Page 20: Flash Loader And Firmware Upgrade

    Ethernet Port Adapter. To upgrade the firmware, follow these steps: 1. The BAT-C Flash Loader is a C# project, and it requires .NET 2.0 to be able to run. 2. Transfer, unzip and install BAT-C Flash Loader.

  • Page 21: Advanced Mode

    Note: It is also possible to select a single bin-file. 6. Select a static "Host IP Address", typically 172.23.56.1. 7. The BAT-C IP Address should be the Address that the BAT-C is using, typically 172.23.56.99. 8. Press Flash and the firmware upgrade will begin.
  • Page 22 Plug the Ethernet Cable into the PC before starting the BAT-C Flash ► Loader. Start the BAT-C Flash Loader then select the correct "Host IP address:" in the tool. BAT-C Release 05 11/2017...

  • Page 23: Technical Data

    : under UL installation conditions the maximum operating temperature is +65 °C. ■ EMC and immunity EMC interference immunity EN 61000-4-2 Electrostatic discharge Contact discharge: test level 3 6 kV Air discharge: test level 3 8 kV BAT-C Release 05 11/2017...
  • Page 24 (ERM) - bandwidth transfer systems - data transmission equipment operating in 2.4 GHz ISM band and using spread spectrum modulation technology EN 301 893 Broadband radio access networks (BRAN) - 5 GHz high- performance Remote Local Area Network (RLAN) BAT-C Release 05 11/2017...
  • Page 25 2.4 W 8.2 Btu (IT)/h 24 V 100 mA 2.4 W 8.2 Btu (IT)/h ■ Scope of delivery BAT-C device ► Stub antenna, 3 dBi ► CD ROM ► Adapter M12 connector A-coded Female 5-poles for 24V interface ► Adapter M12 connector D-coded Male 4-poles for Ethernet interface ►...
  • Page 26 The device has a certification based on a specific standard only if the certification indicator appears on the housing. However, with the exception of Germanischer Lloyd, ship certifications are only included in the product information under www.hirschmann.com. BAT-C Release 05 11/2017...

  • Page 27: A Further Support

    A Further Support Technical Questions ■ For technical questions, please contact any Hirschmann dealer in your area or Hirschmann directly. You will find the addresses of our partners on the Internet at http://www.hirschmann.com A list of local telephone numbers and email addresses for technical support directly from Hirschmann is available at https://hirschmann-support.belden.eu.com...
  • Page 28 BAT-C Release 05 11/2017...
