ORATOR PA101 User Manual

Troubleshooting:

A. Speaker:
1. No function light & no sound.
Ensure the power button is turned on.
Ensure the power adapter is properly connected to wall power & plug
properly inserted to speaker.
Ensure the battery is charged.
2. Function light is on but no sound.
Make sure the cable inputs are properly connected into correct sockets.
Make sure you have selected the correct input/mode.
Check that output device is operating OK if external device.
B. Wireless Microphone
1 .The Receiver is turned on but the indicator light is not lit?
Make sure if the DC power cable is properly fiitted into the power socket &
the DC cable is firmly fitted into the Receiver.
2. When you turn on both the Receiver & Microphone, the RF light does not
come on.
The RF light should come on when both transmitter & receiver are
on & the frequencies are matched. Check the power indicator light is
on in the Receiver & the Transmitter is not showing "Low Battery". If
OK, then check that the frequency is matched & reset if necessary.
3. When you speak into the Microphone, no sound is heard from the Amplifier/
Speaker.
Make sure the volume on the Receiver is turned up, and check that
the audio (6.3mm) cable is properly installed.
4 .The audio output signal is not very good.
Check that you have installed the antennae.
Check that the Transmitter battery is not too low..
Check that the Receiver is within range & not obstructed by too
many solid objects.
Perhaps there is a strong interference in your area & you need to
change frequency.
5. The quality of the sound is not good.
Check that the Transmitter battery is not too low..
Perhaps there is a strong interference in your area & you need to
change frequency.
Supplied By: Audio Visual Engineering Pty Ltd
PO Box 7119, Wilberforce NSW 2756
Phone: (02) 8207 3141 Mobile: 0438 676 558
Email: info@audiovisualengineering.com.au

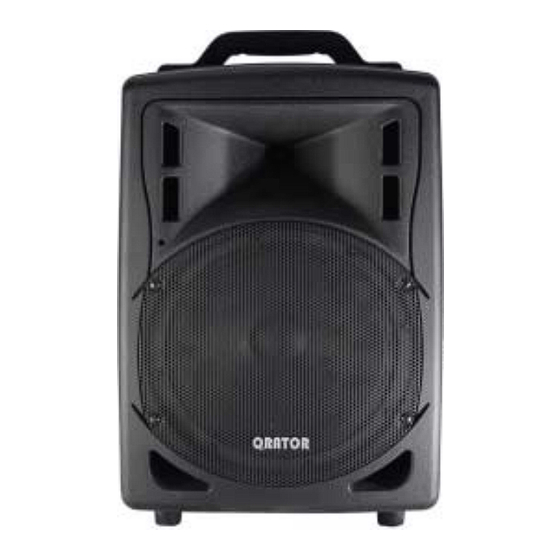

ORATOR
Portable PA
Speaker
PA101
Read this manual carefully to ensure safe operation and
to get excellent acoustics from the speaker.
