Summary of Contents for meyland-smith Meywalk 4

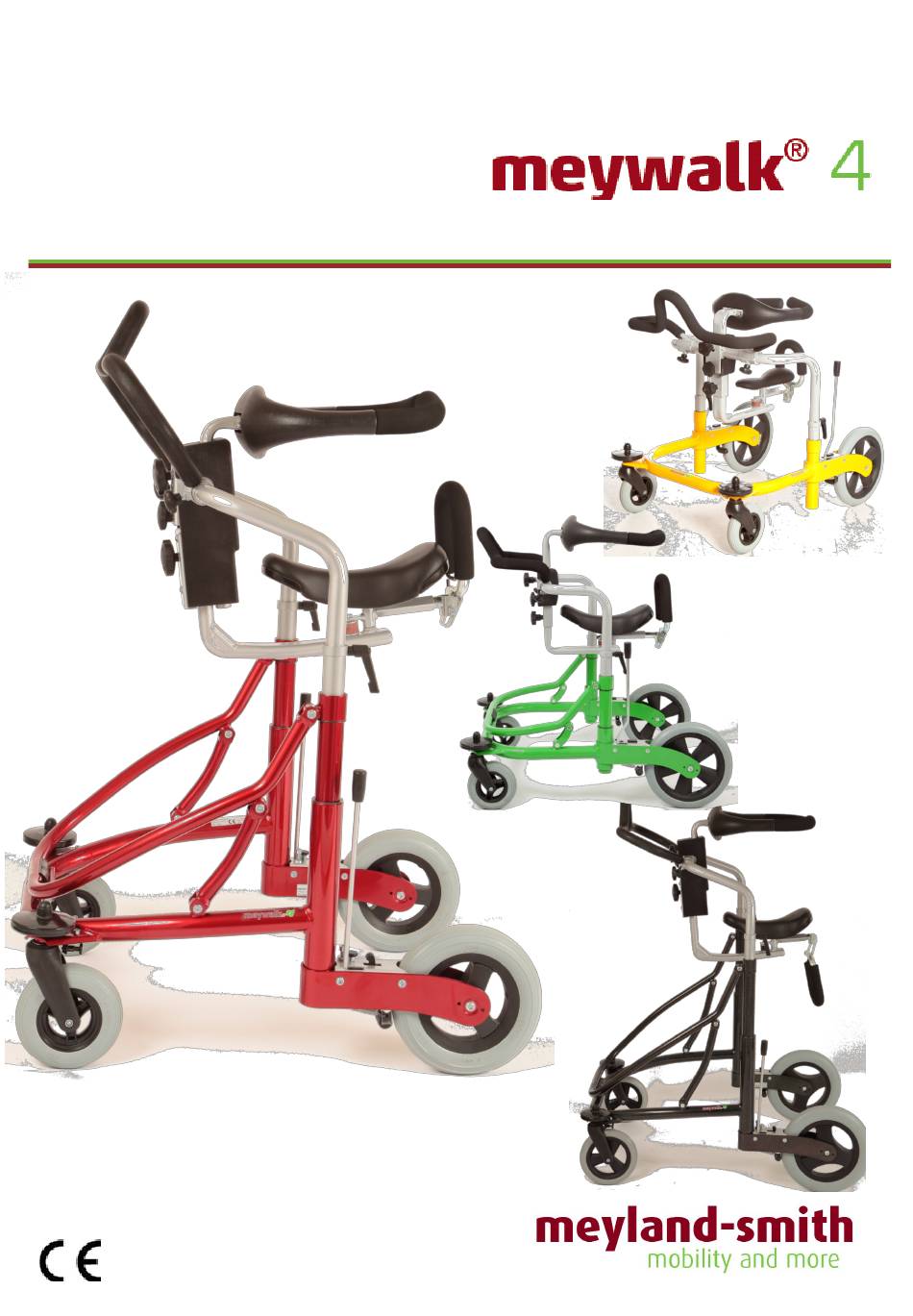

- Page 1 User manual Model Mini, Small, Medium and Large...
-
Page 2: Table Of Contents
Contents Introduction………………………………………………………………………………..3 CE marking and labels…………………………………………………………………...3 Safety precautions………………………………………………………………………..3 Prior to first use……………………………………………………………………………4 Meywalk® 4 parts………………………………………………………………………...4 Joining the top part and bottom frame………………………………………………….5 Spring loading……………………………………………………………………………..5 Adjustment / step by step ………………………………………………………………..6 Tubes………………………………………………………………………………..6 Handlebar…………………………………………………………………………..6 Seat………………………………………………………………………………….7 Trunk support height…………………………………………………………...….7 Trunk support replacement……………………………………………………….7 Tilt function…………………………………………….…..……………………….8 Getting in and out…………………………………………...…………………………….8 Rear stop……………………………………………………………..….…………………8 Trunk support…………………………………………………………..………………….9... -
Page 3: Introduction
Introduction The Meywalk® 4 is CE marked. This accessories are designed to avoid Meywalk® 4 Mini, Small, Medium primarily designed for walking Large are guarantees that the Meywalk® 4 is in open ends! If a situation with open tube -disabled children, youths and adults compliance with all relevant safety ends should nevertheless arise, it is who have difficulty standing up without... -
Page 4: Prior To First Use
Prior to first use Meywalk® 4 is supplied almost fully assem- bled. Check that the package contains the following parts: Bottom frame with wheels and brakes. Top part with seat and trunk support. A set of springs according to the user’s body weight. -
Page 5: Joining The Top Part And Bottom Frame
The springs can easily be Joining the top part interchanged. Grab and open the and bottom frame: swing bar so that the frame is Place the top part in the tubes on the lowered. The tube ends are closed bottom frame. Remember to position with a lid - open the lids to remove the top part so that the handlebar the springs. -
Page 6: Adjustment / Step By Step
Adjustments — step by step Handlebar It is always a good idea to consult The angle of the handlebar can be one of our professionals before adjusted in three steps. Loosen the adjustment of Meywalk® 4. two thumb screws and turn the handlebar to the desired position. -
Page 7: Seat
Seat Warning! Do not carry out this adjustment while a user is placed in Meywalk® 4. Adjust the seat height according to the length of the user’s legs. Turn the lower thumb screw located at the front of Meywalk® 4. The thumb screw features a “child lock”... -
Page 8: Tilt Function
Tilt function Rear stop Warning! Do not carry out this The rear stop should always be Getting in and out adjustment while a user is placed in closed in the upright position when Featuring a unique lifting and Meywalk® 4. there is a user in Meywalk®... -
Page 9: Trunk Support
Trunk support: Drag brakes: Non-reverse brakes: To open the trunk support push the The drag brakes work by the roller at The non-reverse brake works by the two padded tube pieces inwards and the back pressing against the tire. grooved side pressing against the turn down. -
Page 10: Accessories
Accessories Anti-tip support Leg guides Anti-tip supports are mounted on The leg guides are mounted on each side by first removing the the inside of the wheel frame on bolts fixing the wheels. Use a 6 either side. They are fastened at mm Allen key. -
Page 11: Hip Pads
Hip pads Cleaning, disinfection and The hip-/side pads are to be maintenance mounted on the uprights. Fit the Meywalk® 4 can be washed in two pipe sections around the warm water with detergent but stanchion, tighten them together take care not to wash the foam using the two screws. -
Page 12: Warranty
Soft solid rubber tyres on plastic rims with service-free ball bearings *Heights are measured with half compression of springs. Dealer: Manufacturer: Meyland-Smith A/S ٠ Mads Clausens Vej 1 ٠ 9800 Hjørring Phone: +45 98 96 19 85 ٠ Fax.: +45 98 96 19 86 www.meyland-smith.dk ٠ E-mail: info@meyland-smith.dk...
