Ember EM35x Quick Start Manual

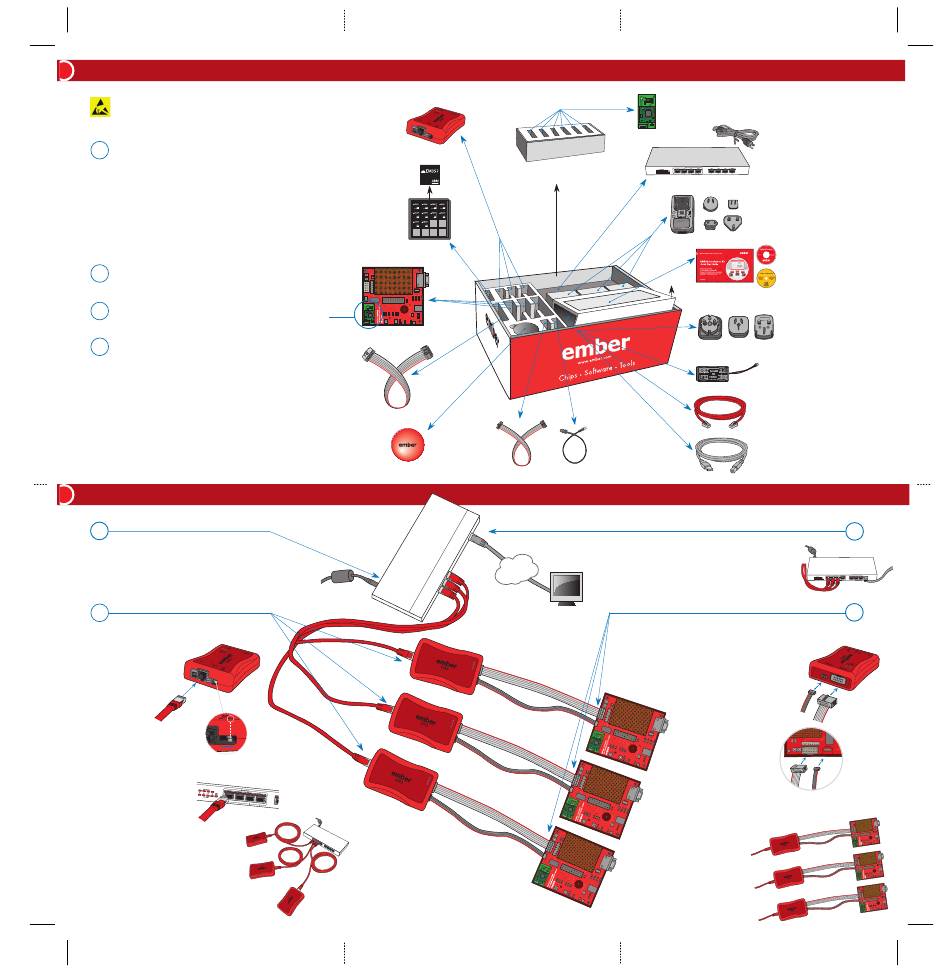

1. Unpacking the Contents
ATTENTION: Observe precautions for handling
electrostatic sensitive devices.
A
Remove visible components from their packaging:
InSight Adapters (ISA3s)
™
•
EM357 Sample Chips
•
EM35x Breakout Boards
•
EM35x Modules
•
Data Emulation Interface (DEI) Cables
•
Ember Happy Fun Ball
•
InSight Port (ISP) Cables
•
Radio Frequency Cable
•
Place all components on a clean, dry surface.
B
Remove seal on EM35x Module Box. Count six
EM35x Modules. Set EM35x Module Box aside.
C
Remove USB Power Supplies with Adapters
and PoE Switch.
D
Remove Quick Start Guide, InSight Dekstop (ISD)
CD, IAR Embedded Workbench CD,
US-to-multinational AC Plug Power Adapter Kit,
AAA Battery Packs, Ethernet Cables, and USB
Cables. Set them aside.
2. Connecting the Hardware
Power over Ethernet (PoE) Switch
A
1. Remove PoE Switch from box.
2.
Connect AC Power Supply and insert it into
a wall outlet. If needed, use an AC Plug
Power Adapter.
InSight Adapters (ISA3s)
B
1. Insert one end of Ethernet Cable (red)
into Ethernet port of InSight Adapter (ISA3).
2. Confirm the toggle switch
is set to 'INT' position.
3. Insert other end of Ethernet Cable into
Port 1 of PoE Switch.
4. Repeat steps 1–3 for the two other
ISA3s and PoE Ports 2 and 3. This
completes the ISA3-to-PoE Switch setup.
x 3
InSight Adapter (ISA3)
x10
EM357 Sample Chip
x 3
EM35x Breakout Board
x 3
EM35x Module
x 3
Data Emulation Interface
(DEI) Cable
x 1
Ember Happy Fun Ball InSight Port (ISP) Cable
PoE Switch
Power Supply
EM35x Module Box
x 1
x 3
Radio Frequency Cable
Ethernet Cable
(not included)
Corporate
Network
Ethernet Cables
PC
DEI Cable
ISP Cable
x 6
EM35x Module
x 1
3
PoE Switch with Power Supply
x 3
USB Power Supply with Adapters
x 1
Quick Start Guide
InSight Desktop (ISD) CD
IAR Embedded Workbench CD
x 1
US-to-multinational
AC Plug Power Adapter Kit
x 3
AAA Battery Pack
(batteries not included)
x 3
Ethernet Cable
x 3
USB Cable
Corporate Network
Connect customer-supplied Ethernet
Cable to PoE Port 8 of PoE Switch and
either a corporate network (using static
or DHCP addresses) or to a developer's
PC (must use static IP addresses).
EM35x Breakout Boards
One InSight Port (ISP) Cable and one Data Emulation
Interface (DEI) Cable are used to connect one ISA3
to one EM35x Breakout Board. One ISA3 is powering
one EM35x Breakout Board.
1.
Insert one end of ISP Cable
into InSight Port of ISA3.
2.
Insert one end of DEI Cable into
DEI Port of ISA3.
3.
Attach other end of ISP Cable
to InSight Port on EM35x
Breakout Board.
4. Attach other end of DEI Cable
to DEI Port on EM35x
Breakout Board.
5. Repeat steps 1–4 for the two other ISA3s
and two EM35x Breakout Boards. This completes
the ISA3-to-EM35x Breakout Board setup.
C
D
