Summary of Contents for HighPoint RocketStor 6661A

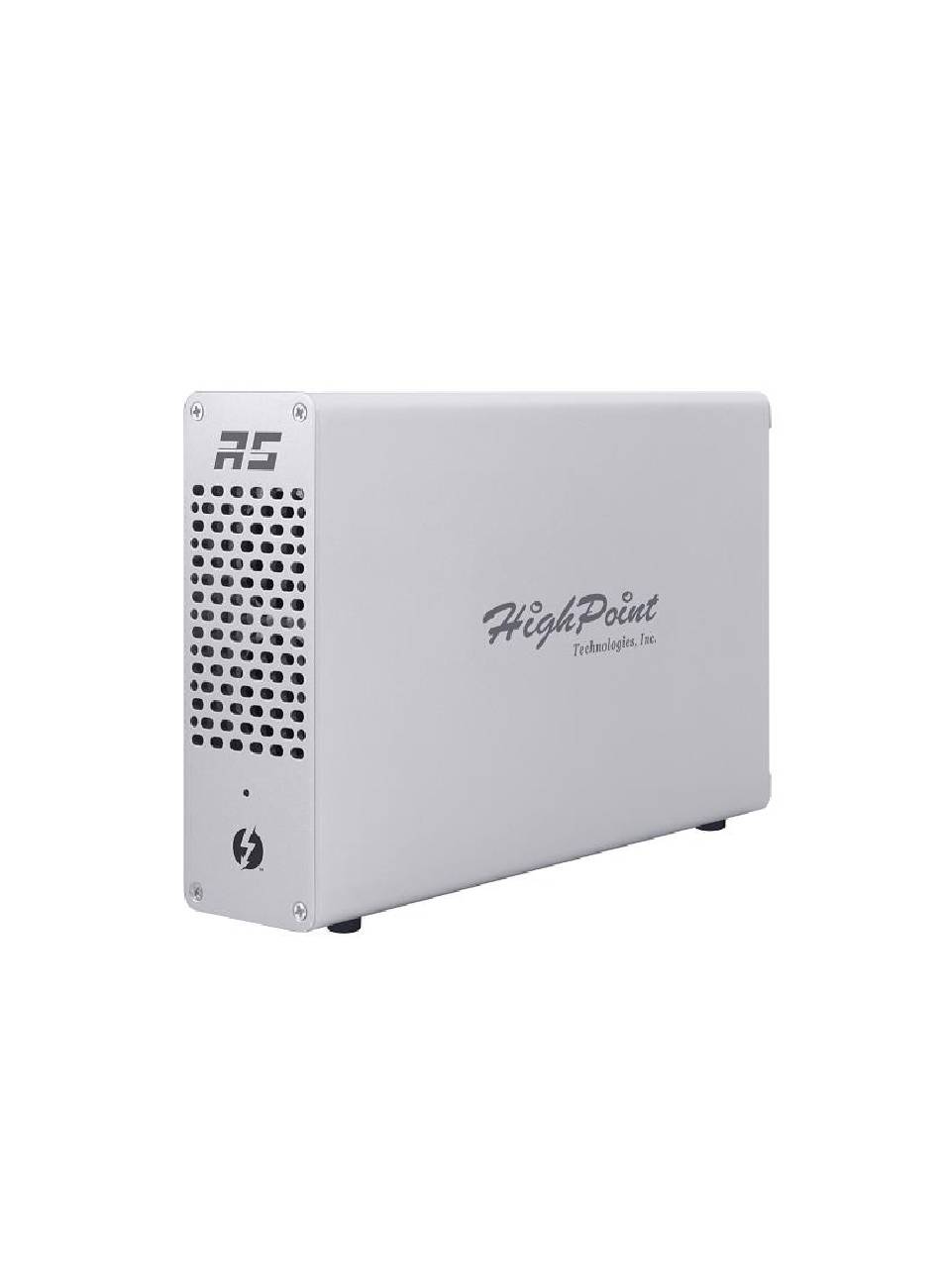

- Page 1 RocketStor 6661A Thunderbolt™ 3 PCIe Expansion Chassis Quick Installation Guide V1.00...
- Page 2 1. HighPoint RocketStor 6661A The RocketStor 6661A allows you to quickly add any PCIe x4, x8 or x16 card to your Thunderbolt™ 3 capable computing platform, such as media capture, Ethernet, Fibre Channel, storage/RAID controller cards or PCIe NVMe drives. The ultra...
-
Page 3: System Requirements
PC or Mac System with Thunderbolt™ 3 support Windows 10, macOS 10.10 or later 3. What’s in the box RocketStor 6661A enclosure Quick Installation Guide Power Adapter Thunderbolt™ 3 Cable Screws for PCIe card mounting 4. RocketStor 6661A Hardware... - Page 4 5. Setup Procedures Step 1: Open the RocketStor 6661A chassis by turning the two Thumbscrews counterclockwise and remove the cover. Step 2: Gently install the PCIe card and secure it with the supplied screws.
- Page 5 Step 3: Close the RocketStor 6661A chassis and c onnect the Power Adapter to the RocketStor 6661A. Step 4: Connect the RocketStor 6661A to the host system using a Thunderbolt™ cable. Note, The RocketStor 6661A design is compliant with Thunderbolt™...
- Page 6 Mac, and then select More Info. Next, select System Report, and click Thunderbolt on left side of the System Information pane. The RocketStor 6661A device should be listed under Thunderbolt Bus: to verify the PCIe card is Click PCI cards on the left side detected.
- Page 7 Thunderbolt Device connection. Select “Always Connect” from the drop-down menu, then click Note, If the RocketStor 6661A is not detected by your system, please double check the power adapter and Thunderbolt™ cable connections. Check the Power Indicator LED to make sure the...
- Page 8 7. Support information If you encounter any problems while utilizing the HighPoint RocketStor 6661A, or have any questions about this or any other HighPoint Technologies, Inc. product, feel free to contact our Customer Support Department. Web Support: http://www.highpoint-tech.com/websupport/ Mar. 13, 2018...
