707 VCC181 User Manual/Instructions

Dual cyclonic vacuum
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
& Instructions
Dual Cyclonic Vacuum
VCC181
• This booklet should be retained by the user for future reference.
•
Please read all instructions carefully before operation.

Advertisement

Table of Contents
loading

Summary of Contents for 707 VCC181

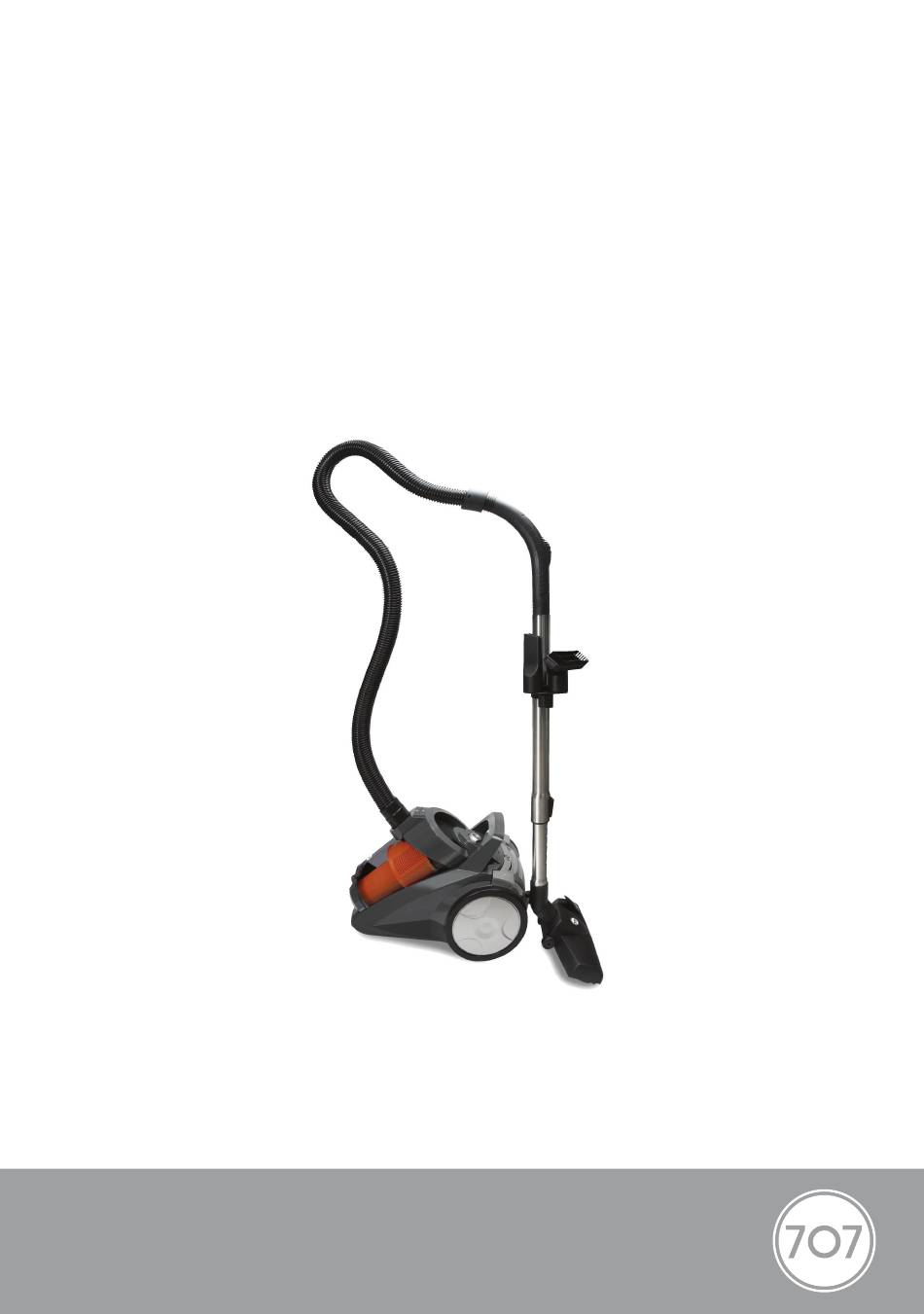

  • Page 1 User Manual & Instructions Dual Cyclonic Vacuum VCC181 • This booklet should be retained by the user for future reference. • Please read all instructions carefully before operation.

  • Page 2: Safety Regulations

    SAFETY REGULATIONS Warning: When using any electrical appliance, always observe basic safety precautions. The following instructions should be followed to reduce the risk of fire, electric shock or injury. General: Read this manual carefully before using the appliance. Keep this manual in a safe place for future reference.
  • Page 3 Keep the device, the plug and the power cord away from flames and hot surfaces. Do not use attachments which are not recommended by 707, especially acces- sories which are not supplied with the appliance. Do not bend the exible hose or carry the device by the exible hose. Stop using the device immediately when the exible hose shows damages.

  • Page 4: Product Specifications

    1. PRODUCT SPECIFICATIONS Product: Dual-Cyclonic Vacuum Model No.: VCC181 Voltage: 220-240 V~ 50/60 Hz Power: 1800 W Suction Power: 300 W Vacuum Pressure: 21 kPa Noise Decibel: 79.4dB 2. PRODUCT PARTS 1. Flexible hose 8. Canister release button 2. Crevice tool 9.

  • Page 5: Operation

    3. ASSEMBLY • Remove all packaging materials. • Clean the device, if necessary, with a wet cloth and some detergent. • Make sure that all parts are clean and dry before assembling the device. Warning: Do not insert the plug into the electrical outlet and do not turn the device on before you have completed the assembly.
  • Page 6 3. Attach the floor brush or one of the following accessories to the end of the telescopic tube. Floor brush: The floor brush features a switch, which allows you to set the bristles in or out. Position 1: bristles are out. This setting is suitable for hard floors (wood, laminate, tiles, stone, etc.).
  • Page 7 Adjusting the telescopic tube The telescopic tube can be lengthened or shortened by sliding the switch on the telescopic tube forward. Emptying the dust canister The dust canister should be emptied when it is visibly full. 1. Turn o the device and pull the plug from the wall plug. 2.

  • Page 8: Maintenance And Cleaning

    5. MAINTENANCE & CLEANING Note: • Always switch o and unplug the device from the wall socket before cleaning the device or carrying out maintenance. • Never immerse the device and/or the power cord in water or other liquids. Cleaning the dust canister and filters The suction power of the unit reduces when the dust canister is too full or when the filters are dirty.
  • Page 9 4. Take the parts apart as shown on the image below. Large Filter Small Filter Foam Filter Filter Cassette 5. Clean the parts with lukewarm water and let them dry. Note: do not use detergents to clean the filters. Note: do not use heating sources (blow-dryer, heating, etc.) to dry the filters and do not put the filters back into the device until they are completely dry.
  • Page 10 Step 3: Attach this assembly to the lid by turning it anti-clockwise. Step 4: Attach the large plastic filter to the lid by placing it over the small plastic filter and then turning it anti-clockwise. Important: make sure that the angular shape on the large filter is adjusted with the ‘lock’ / ‘unlock’ marking on the lid.
  • Page 11 Cleaning motor filters 1. Press the canister release button in order to remove the dust canister from the unit. 2. Remove the motor filter from the device. Motor Filter 3. Clean the filter with lukewarm water. Note: do not use detergents when cleaning the filter. 4.
  • Page 12 2. Remove the filter from the device. Use a brush (not included) to remove large particles from the filter, or tap the filter a number of times. Then clean the filter with lukewarm water. Note: do not use detergents when cleaning the filter. 3.

  • Page 13: Troubleshooting

    TROUBLESHOOTING Problem Possible cause Possible solution Device does not Plug is not properly plugged in the Put the plug in the wall socket again work wall socket Device has no Dust canister is not properly Re-assemble the dust canister assembled or very weak suction power Dust canister is full...
