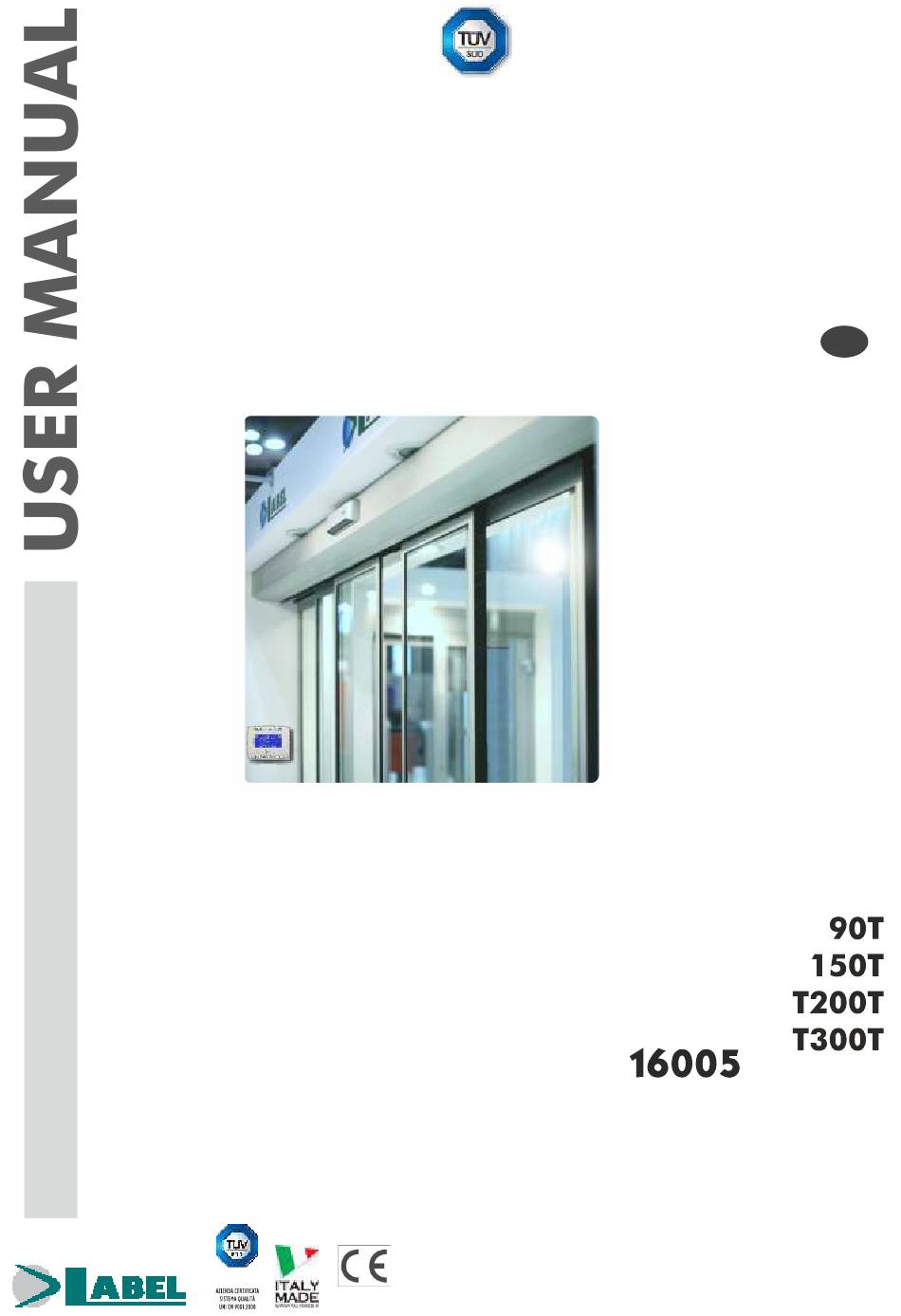

- Page 1 PEDESTRIAN AUTOMATIC SLIDING DOOR EVOLUS EVOLUS-T English Made in Italy by TRANSLATION OF ORIGINAL INSTRUCTIONS Italia USER MANUAL - EVOLUS-16005 - GB - Rel.1.3 - 01/2017 - CD0555GB-MU...
- Page 2 RECOMMENDATIONS THIS INSTRUCTION MANUAL IS INTENDED FOR THE FINAL USER OF A LABEL AUTOMATIC SLIDING DOOR SYSTEM; IT IS UNDERSTOOD THAT INSTALLATION AND TESTING MUST HAVE BEEN CARRIED OUT BY SPECIALISED PERSONNEL. GENERAL SAFETY WARNINGS BEFORE COMMISSIONING THE AUTOMATIC DOOR, PLEASE CAREFULLY READ THIS MANUAL.
-
Page 3: Table Of Contents
EVOLUS EVOLUS-T AUTOMATIC SLIDING DOOR models: TABLE OF CONTENTS: INDICATIVE SYSTEM DESCRIPTION page TECHNICAL DATA AUTOMATIC DOOR OPERATION 3.1) NORMAL DOOR OPERATION 3.2) DOOR OPERATION IN NIGHT LOCK MODE PROGRAM SELECTORS 4.1) MECHANICAL KEY SELECTOR EV-MSEL 4.2) DIGITAL PROGRAM SELECTOR N-DSEL 4.2.1) GENERAL PROGRAMMING MENU 4.2.2) PASSWORD 4.2.3) LANGUAGE... -
Page 4: Indicative System Description
1) INDICATIVE SYSTEM DESCRIPTION INNER OUTER AUTOMATISM SIDE SIDE POWER SUPPLY Internal movement and presence sensor for door opening and safety during closing Emergency opening button Digital programmer External movement and presence sensor for door opening and safety during closing Opening safety sensor Key button EVOLUS operator... -
Page 5: Automatic Door Operation
3) AUTOMATIC DOOR OPERATION WARNING!! Always contact the assistance technician before commissioning the door, to learn how the automation works. Switch on the power supply by means of the system switch. The automation electronic control unit beeps shortly to indicate that the automatic door is powered. The first opening command starts a calibration cycle during which the door opening speed is very low until the end of the stroke, to find the stop point;... -
Page 6: Digital Program Selector N-Dsel
4.2) DIGITAL PROGRAM SELECTOR N-DSEL By pulse-pressing the button, choose the automatic door operating mode. Each time a button is pressed, it switches from a work program to the next one. The operating programs to be selected by button are described below Bi-directional automatic program The door automatically opens when each opening control activates. - Page 7 Operation of other buttons located on N-DSEL program selector panel REDUCED OPENING DURING WINTER To reduce the passage opening. To activate the reduced opening during winter press the button once; symbol on the display indicates that the function is on. To disable the reduced opening during winter press the button once more;...
-
Page 8: 1) General Programming Menu
4.2.1) GENERAL PROGRAMMING MENU The user can enter the general programming menu when he wishes to select the desired language for the texts that appear on the display, or when he wishes to enable a password to prevent any unauthorised access to the N-DSEL digital programmer. DIAGRAM 1 EXIT EXIT... -
Page 9: 2) Password
4.2.2) PASSWORD To prevent the door work program from being modified, a password can be entered that must be input every time the N-DSEL programmer is used. To enable the password perform the operations listed below: Press the SET button for 5 seconds to access the general programming menu (see Diagram 1 at para. 4.3.1) Press the F1 button five times to switch to the Password Management sub-menu. - Page 10 Ÿ It is required to repeat the new password, so type the previous combination again. Ÿ If the typed password is correct the “PASSWORD OK” message appears on the display for one second, then the system switches back to the PASSWORD MANAGEMENT section;...
-
Page 11: 3) Language
ENABLING USER PASSWORD USAGE (primary and service) Select “PASSWORD ON / OFF” Ÿ Press OK (F1) button. Ÿ Press the ON button to enable the usage of user passwords and return to the PASSWORD MANAGEMENT menu. Ÿ To return to the work program view press the EXIT button twice. -
Page 12: Operation In Case Of Power Supply Failure
5 - OPERATION IN CASE OF POWER SUPPLY FAILURE If the battery module is installed in the operator, automatic door operation is guaranteed by an emergency battery. Depending on the programming of the automation electronic control unit, the door may operate as follows: Automatically open and stay open if the program selector is not set to Night Lock. -
Page 13: Use Of Panic Exit Breakout System For Escape Routes
6 - BREAKOUT SYSTEM APPLICATION FOR ESCAPE ROUTES LEAVE OPENING ACHIEVED MANUALLY LEAVES RETURN BEFORE DOOR CLOSURE BY PUSHING THE DOOR Evolus Evolus MOBILE LEAF CONNECTION SEMI-FIXED LEAF MOBILE LEAF... -
Page 14: Notification Of Errors And Operation Problems
7 - NOTIFICATION OF ERRORS AND OPERATION PROBLEMS PROBLEM LIKELY CAUSE SOLUTION The door opens but it doesn't close The motion radars or the closing safety Check that the radars or the sensors back. sensor detect the presence of an are not engaged. -
Page 15: Maintenance
9 - DISPOSAL At the end of its life, this system must be disposed of in accordance with national provisions. To this purpose we recommend that you contact specialised operators. LABEL service centre... - Page 16 EVOLUS Made in Italy S.p.A. Italia Via Ilariuzzi, 17/A - S. Pancrazio P .se - 43126 PARMA - ITALIA Tel. (+39) 05 21/ 67 52 - Fax (+39) 05 21/ 67 52 22 infocom@labelspa.it - www.labelspa.com...
