Summary of Contents for Bolin Technology KB-1010-R
- Page 1 BOLIN Technology Knowledge Base Article: KB-1010-R Quick Start Guide Most Recent Update：05/25/2018 Dept: Technical Support, US Document Version: V.1...

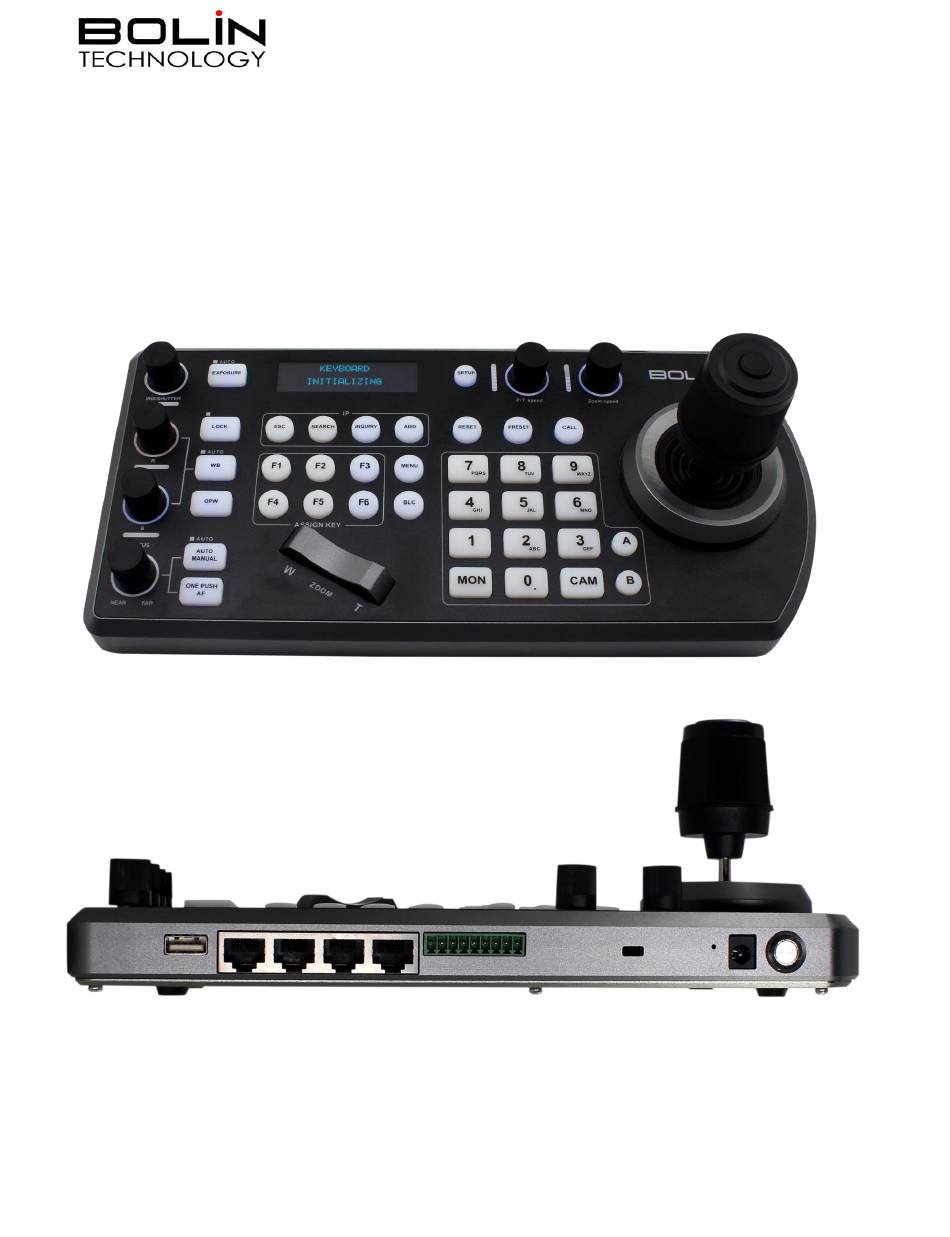

- Page 2 A. Physical nomenclature 1. Power Button Used to power on / power off the KBD-1010-R 2. DC12V power port Connect a DC 12V 3A power supply to this port in order to provide power to the keyboard 3. Firmware Upgrade interface button Only engaged during firmware upgrade process 4.
- Page 3 11. IP Control Buttons 12. LCD Screen 13. Setup Button 14. Pan / Tilt Speed Dial (Menu Functions: Rotate = Move cursor, Click = Select) 15. Zoom Speed (Menu Functions: Rotate = Adjust value, Click = Save) 16. PTZ Control Joystick 17.
- Page 4 B. Initial Setup 1. Connect DC12V / 3A power supply (barrel connector) to the power port and plug the power cord in to a working standard electrical outlet. 2. Connect the IP port on the back of the keyboard to your LAN using an Ethernet cable (CAT5 or CAT6.
- Page 5 E. Configure IP Address of Keyboard 1. Press the Setup button 2. Use the P/T Speed dial to move the cursor to IP Configuration and then click the P/T Speed dial downward to enter the IP Configuration menu Press the dial downward to select Rotate P/T Speed dial to move cursor Rotate the Zoom Speed dial to adjust a value Press the Zoom Speed dial downward to save...
- Page 6 F. Adding Cameras a. Adding Manually 1. Press the Setup button 2. Select the Camera Setting option ▪ Camera ID: Adjust the CAMXXX value using the Zoom Speed dial ▪ Title: Use the Alphanumeric keypad to enter a title for the selected camera (use the ESC key as a backspace) ▪...
