Summary of Contents for REV Maverick

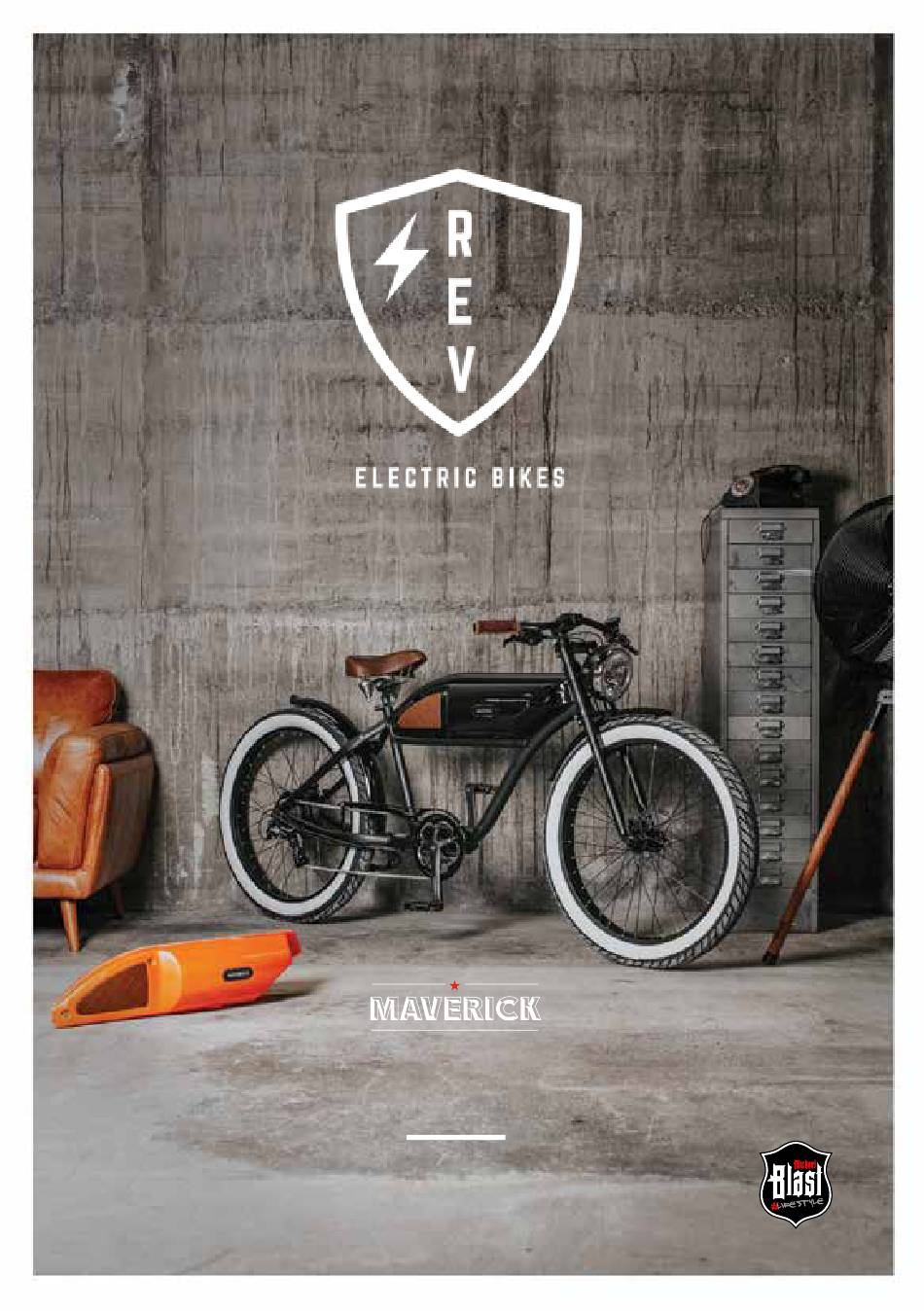

- Page 1 FREE GUIDE TO THE FESTIVAL U S ER MANUAL...
- Page 2 RIDE REVOLUTION...
- Page 3 We highly recommend you have your “Maverick” assembled and checked over by a qualified bicycle technician if you are unsure as to how to assemble your electric bike, this way you know it will operate perfectly as intended.
-
Page 4: Carton Contents
Open the box. Carefully lift the bike out of the box as the bike weighs 28kg. We recommend that you seek help so that two people lift the Maverick from the inner cardboard box so as not to damage the bike, nor cause a lifting strain to yourself. Alternatively, you can carefully cut the cardboard to ‘expose’... - Page 5 Before taking your “Maverick” for your first ride, think of a manual car. When you start, you have the car in first gear (the bike has 7 gears) and exert low pressure on the accelerator (the bike accelerator, is the 5 levels of pedal assist, or the thumb throttle).
- Page 6 It is your responsibility to familiarise yourself with the relevant New Zealand laws of where you can ride your bike and that you comply with all road safety rules. Rev Bikes recommends the Livall BH51 M helmet when riding the “Maverick”.
-
Page 7: Warranty
TECH SPEC 350Watt Bafang Geared brushless rear hub MOTOR 28kg WEIGHT 36volt 13Ah Lithium-ion BATTERY Approx 40km + Depending on Pedal Assist RANGE Usage and riding style 0 – 25+km/h SPEED 18Ah CONTROLLER Good Times 5 Pedal Assist speed display Joytech (Sealed bearings) FRONT WHEEL HUB Promax aluminium... - Page 8 Current Trip Distance or total distance travelled TURN YOUR MAVERICK ON Press and Hold the Power/Mode Button for 3 seconds to turn your “Maverick” on. Located on the front of the display unit. POWER/MODE BUTTON The “Maverick” LCD display will look like...
- Page 9 ADJUST THE AMOUNT OF PEDAL ASSIST Press the + button to increase the amount of pedal assistance. The higher the number the more assistance is applied. Level 5 is the highest level of assistance this bike has been set to. Press the –...
- Page 10 The Settings Menu will look like the picture below NDW – Unit – Do not Adjust this. Displays KPH or MPH. You can select your preference. Adjusting the Settings Menu: Once you Speed Limit – have entered the Settings Menu then Press Maximum speed at which the + or –...
- Page 11 Please do not sit on your To overcome loss of power when ‘’Maverick’’ with the kickstand in the down pedalling too slow, you can change up a position.
- Page 12 ‘’Maverick’’ will come to a stop. The left-hand lever activates the rear brake and should always be applied before the front brake is applied. Applying only the right-hand lever for the front brake too slow or stopping at high speeds may result in the rider being ejected from the seat and continuing forward over the handlebars.
- Page 13 It is recommended that 6 weeks after assuming ownership, you should inspect your bike as some fittings may loosen and need retightening. If you do not know how to adjust any of the cables, please take your ‘’Maverick’’ to a qualified bicycle technician. Annual Inspection: It is recommended that once a year you complete a full service on your bike to keep it in excellent working order.
- Page 14 You need to be mindful, when using the thumb throttle that it will override the pedal assist settings on your bike. Rev Bikes and Michael Blast will have no Warranty: obligation under this limited warranty in the Subject to the following provisions, Rev Bikes...
- Page 15 MODEL / COLOUR SERIAL NUMBER BATTERY NUMBER HUB NUMBER DATE OF PURCHASE PLACE OF PURCHASE...
