Rapesco PS12-USB Operating Instructions

PS12-USB Automatic
USB/Battery Pencil Sharpener

Operating Instructions

Please read the following instructions carefully before operating your sharpener
To be used under adult supervision only
Connecting your Sharpener
This automatic pencil sharpener will operate using either batteries (not included) or via a
USB port (cable included).
To operate using the USB cable, insert the connector into the rear of the sharpener
marked "USB". Insert the USB socket preferably into a mains USB plug or alternatively
into your computer USB port.
PLEASE NOTE: If the sharpener is connected to a computer USB port, the power
may not be as efficient to fully power the sharpener as it would be if the USB was
connected to a mains power outlet.
Using the Sharpener
1
Ensure the sharpener is placed on a
stable, rigid surface before inserting
a pencil into the hole. Also ensure the
shaving tray is in place and tightly
closed before use.
Dimensions Weight
L 84 x W 72 x H 76mm
2
Guide the pencil into the appropriate
hole size and for 9-12mm pencils open
the safety-lid cover first to expose the
hole. The motor will start automatically.
Hold pencil steady while sharpening and
remove after 3-4 seconds (prolonged
time can damage motor).
Compatible Pencil Sizes
169g 6mm to 12mm
Emptying the Shavings
Replacing the Blade Units

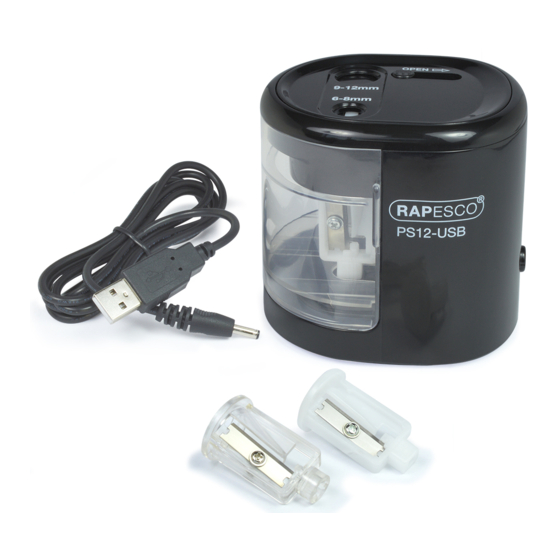

The Rapesco PS12-USB is supplied with
2 x standard size and 2 x jumbo size
replacement blade units.
1. Remove the cover, ensuring that
shavings have been emptied first.
2. Remove the old blade units by lifting
them into the sharpener to remove
them from their mounting.
1. Empty the shavings tray when it is half full.
The sharpener will not operate properly and
serious damage can be caused if the tray is
over-filled.
2. Hold the sharpener vertically over a bin
before removing the shavings tray.
3. Hold both sides of the cover and pull it out.
Clear the contents of the shavings tray and
place the cover back firmly.
4. The sharpener will not operate unless the
shavings tray is replaced correctly.
3. Insert the replacement blade unit,
pressing up into the sharpener and
lowering into position.
4. Reattach the cover.
PLEASE NOTE: Do not touch the cutting
blades themselves. Remove and install
new blade units by holding the plastic
casing only.
