Summary of Contents for Hubert HUBM-23RB

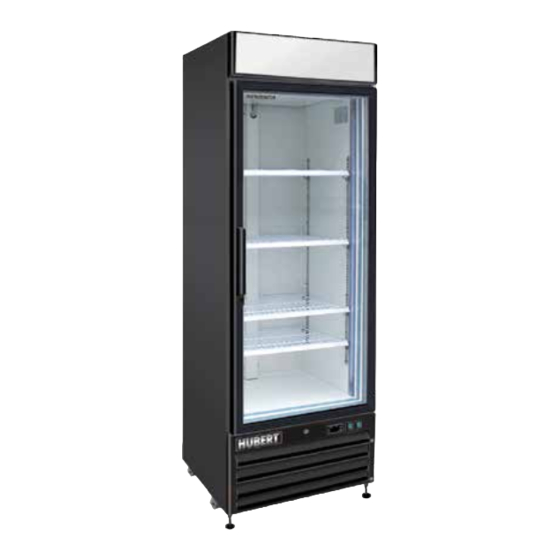

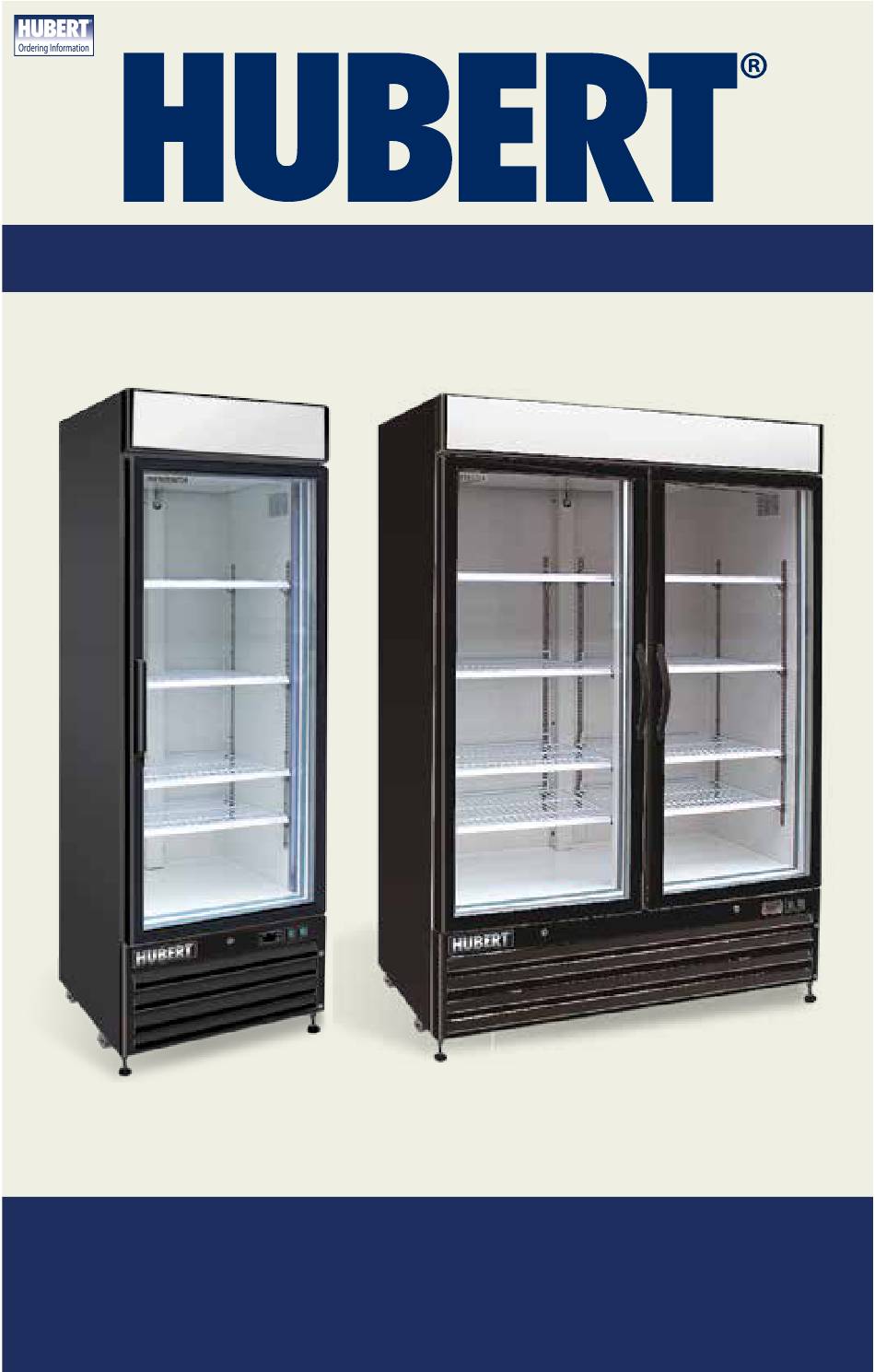

- Page 1 Service, Installation and Instructional Manual Glass Door Merchandiser Refrigeration and Freezer HUBM-23RB/FB – HUBM-48RB/FB – HUBM-72RB/FB PLEASE READ CAREFULLY 073015...
-
Page 2: Table Of Contents
CONTENTS SERIAL NUMBER INFORMATION RECEIVING & INSPECTING EQUIPMENT SPECIFICATIONS INSTALLATION OPERATION MAINTENANCE NOTES All rights reserved Reproduction without written permission is prohibited SERIAL NUMBER INFORMATION The serial number of all self-contained refrigerators and freezers is located inside the unit on the left hand side near the top on the wall Always have the serial number of your unit available when calling for parts or service This manual covers standard units only If you have a custom unit, consult the customer service... -
Page 3: Specifications
SERVICE AND INSTALLATION MANUAL www.hubert.com SPECIFICATIONS SWING GLASS DOOR REFRIGERATORS SHIPPING STORAGE CHARGE Model WEIGHT V/Hz/Ph AMPS CAPACITY NEMA PLUG Number CU-FT HUBM-23RB 120/60/1 5-15P HUBM-48RB 120/60/1 18 7 5-15P HUBM-72RB 120/60/1 21 2 5-15P SWING GLASS DOOR FREEZERS SHIPPING STORAGE CHARGE... -
Page 4: Installation
INSTALLATION LOCATION Units represented in this manual are intended for indoor use only Be sure the location chosen has a floor strong enough to support the total weight of the cabinet and contents. A fully loaded unit can weigh as much as 1500 pounds. Reinforce the floor as necessary to provide for maximum loading. For the most efficient refrigeration, be sure to provide good air circulation inside and out. -
Page 5: Operation
SERVICE AND INSTALLATION MANUAL www.hubert.com OPERATION Do not throw items into the storage area. Failure to heed these recommendations could result in damage to the interior of the cabinet. DANGER CAUTION REFRIGERATION CYCLE Refrigerators: Every 6 hours, the unit will shut off to allow the evaporator coil to defrost and the controller will display the defrost symbol When the coil temperature reaches 41°F or after 20... - Page 6 SOLID-STATE THERMOSTAT DESCRIPTIONS 1. FRONT PANEL COMMANDS 1.1 KEY FUNCTION To display target set point; in programming mode it selects a parameter or confirms an operation. To start a manual defrost To see the last temperature alarm; in programming mode it browses the parameter codes or increases the display value To see the last temperature alarm;...
- Page 7 SERVICE AND INSTALLATION MANUAL www.hubert.com 2. MAIN FUNCTIONS 2.1 HOW TO SEE THE SETPOINT 1 Push and immediately release the SET key: the display will show the set point value; 2 Push and immediately release the SET key or wait for 5 seconds to display the sensor value again 2.2 HOW TO CHANGE THE SETPOINT...
-
Page 8: Maintenance
MAINTENANCE The power switch must be turned to OFF and the unit disconnected from the power source whenever performing service, maintenance functions or cleaning the refrigerated area. DANGER REFRIGERATORS AND FREEZERS The interior and exterior can be cleaned using soap and warm water. If this isn’t sufficient, try ammonia and water or a nonabrasive liquid cleaner When cleaning the exterior, always rub with the “grain”... -
Page 9: Maintenance
SERVICE AND INSTALLATION MANUAL www.hubert.com Cleaning solutions need to be alkaline based or non-chloride cleaners Any cleaner containing chlorides will damage the protective film of the stainless steel. Chlorides are also commonly found in hard water, salts, and household and industrial cleaners If cleaners containing chlorides are used be... - Page 10 SWING DOOR REPLACEMENT AND ADJUSTMENT 1 Open the bottom shroud and hold the door, then loosen the bottom hinge’s screws and take off the old door 2 Prepare new door, insert top pin into top hinge, get one bottom hinge to hold the door by the bottom pin, then fasten bottom hinge securely to the door frame with three screws;...
-
Page 11: Notes
SERVICE AND INSTALLATION MANUAL www.hubert.com NOTES:... - Page 12 800.543.7374 www.hubert.com...
