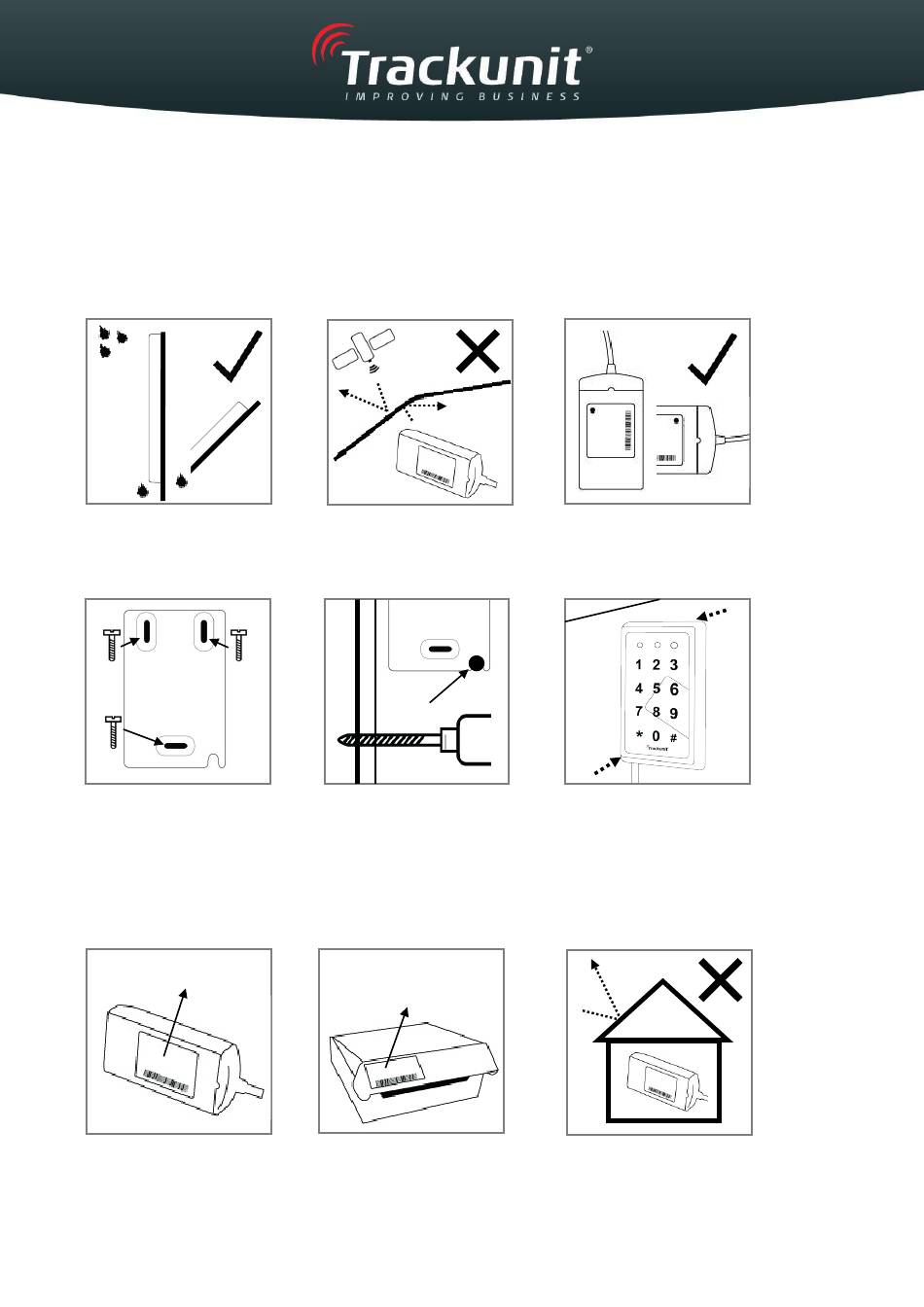

General Trackunit 401 DualID installation
Placement instructions
Make sure that water can
run off the unit.
1. Mount the bracket on the
machine using 3 screws.
Practical advice
S/N xxxxxx
Serial number located on
the back of the GPS/GSM
unit.
©Trackunit 2015
Do NOT install the GPS/GSM
unit directly under a layer of
metal or next to wires.
Ø11 mm
2. Drill a hole in the back
panel for the unit cable and
drag the cable through the
hole. The hole must be big
enough for the plug!
+xx xx xx xx xx
S/N xxxxxx
GSM number and unit serial
number is located on the
box. Label can be peeled
off and placed on page 4 of
this guide.
Locate the unit as shown
for optimal signal
conditions.
3. Click the DualID into the
bracket starting at the top. A
click is felt when pressing
the bottom part of the
DualID firmly in place.
Do NOT perform installation
inside a building.
7001.0080 v1.3 06-07-2015
