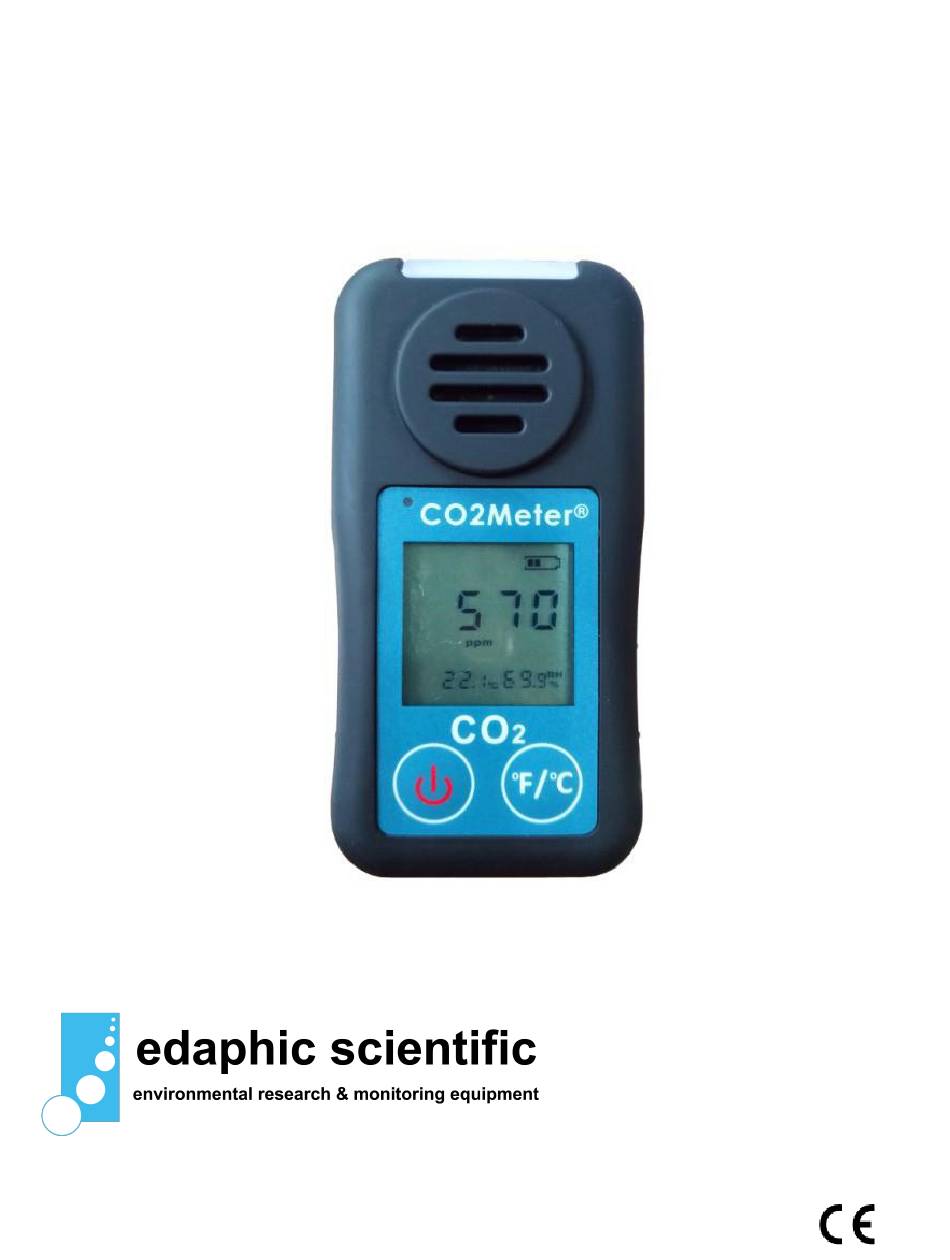

- Page 1 User Manual R1.0 ESSAN-10 Pocket CO2 Meter Distributed & Supported By: Edaphic Scientific Pty Ltd www.edaphic.com.au info@edaphic.com.au Ph: 1300 430 928...
-
Page 2: Table Of Contents
Contents INTRODUCTION ..........................3 FEATURES ..............................3 MONITOR ............................3 LCD DISPLAY .............................. 4 OPERATION ............................4 MENU/CONFIGURATION ........................... Calibration ..........................6 Alarm Threshold ........................6 MAN DOWN FEATURE ......................... 7 MAINTENANCE..........................7 SPECIFICATIONS ..........................8 TROUBLESHOOTING ........................9 WARRANTY ........................... 9 CONTACT US .......................... -
Page 3: Introduction
It is designed to alert people in the area with excessive carbon dioxide gas. ESSAN-10 is shipped fully tested and calibrated and, with proper use, will provide years of reliable service. -
Page 4: Lcd Display
LCD DISPLAY 1. Low alarm indicator 2. High alarm indicator 3. Battery indicator 4. CO2 concentration 5. CO2 concentration units (ppm or % when >9,999 ppm) 6. Calibration icon 7. Man down alarm 8. Air Temperature 9. Temperature unit (Fahrenheit or centigrade degrees) 10. -
Page 5: Menu/Configuration
2.2 Menu and Configuration Settings By pressing the temperature button for 13 seconds, the unit enters in to Menu status. There are six menu items by pressing the temperature button shortly to loop switching between AIR, N2, LX.X, HX.X, A ON/AOFF and E (exit). The menu items are described in the following table. -
Page 6: Calibration
3. Calibration There are two calibration methods: Ambient Air (300-600ppm) and Nitrogen (0-200ppm). By pressing the temperature unit button for 5 seconds, the monitor will enter CO2 calibration mode. While in calibration mode, press the temperature button quickly to switch between AIR (Ambient Air Calibration) or N2 (Nitrogen Calibration). -
Page 7: Man Down Feature
Falling by breathing dangerous gases can cause serious injury and even fatality to workers. If the Man down alarm function in ESSAN-10 is set on, ESSAN-10 can detect falls and send a man down alert which will activate the audible and visual alarms and alert other people in the area. -
Page 8: Specifications
SPECIFICATIONS Device Specifications Operating Environment 32~122°F (0~50°C), <95% RH non-condensing Storage 14~140°F (-10~60°C), <99% RH non-condensing Power Supply Li-ion battery (4.2V, 1500mAh), Micro USB cable w. Wall USB charger Dimensions 3.9 x 2.0 x 1.7 in. (98x50x42mm) Weight 4.76 oz. (135 grams) CO2 Sensor Specifications CO2 Sensor Single-beam NDIR diffusion sampling... -
Page 9: Troubleshooting
Confirm the monitor has sufficient charge. change WARRANTY The monitor comes with a one (1) year warranty starting from the date the monitor was shipped to the buyer. CONTACT US Distributed & Supported By: Edaphic Scientific Pty Ltd www.edaphic.com.au info@edaphic.com.au Ph: 1300 430 928...
