Summary of Contents for HSV HSV-SPZ-189903
-
Page 1: User Manual

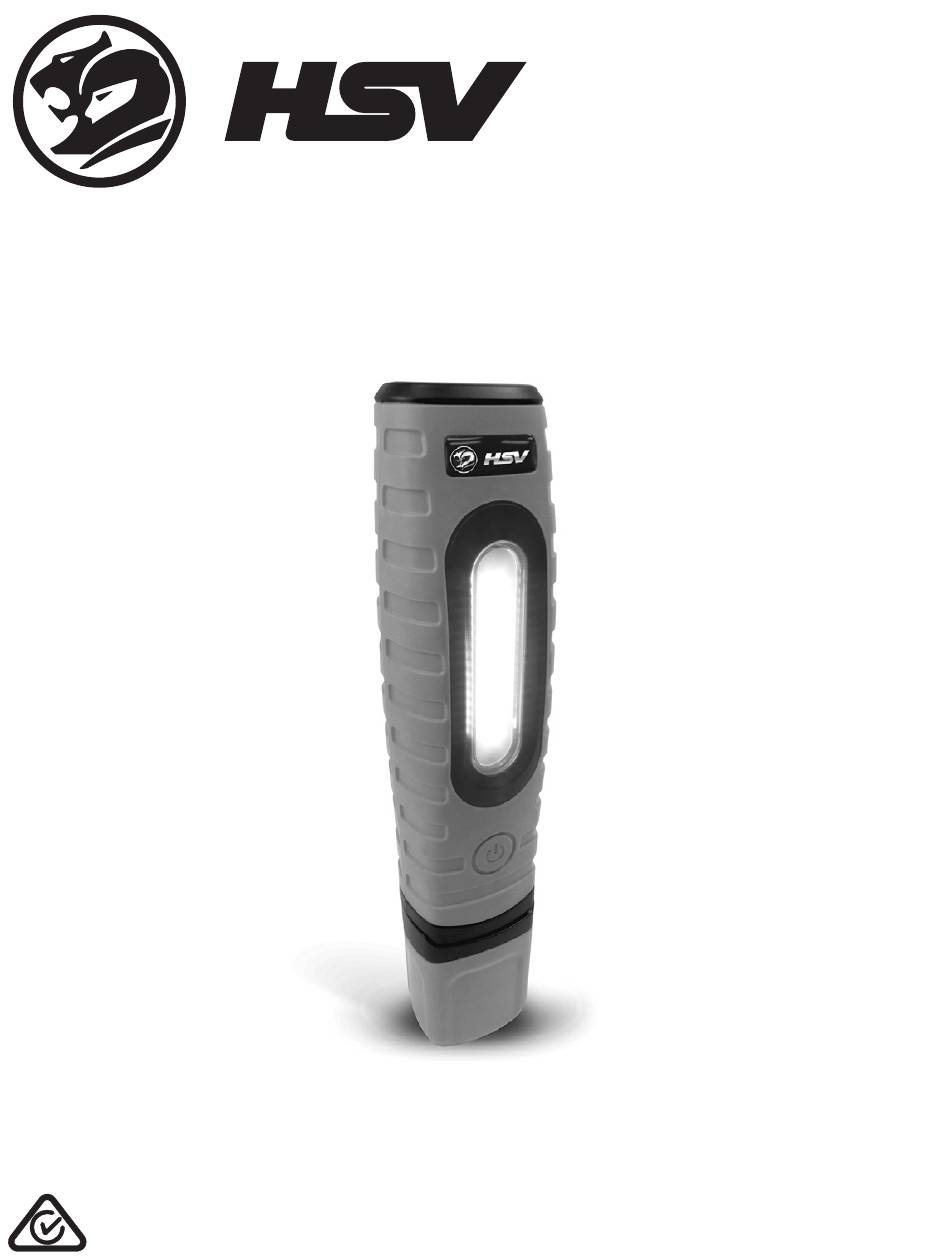

Lithium Ion 360° Cordless LED Work Light HSV-SPZ-189903 MODEL User Manual PLEASE SAVE THIS OWNERS MANUAL AND READ BEFORE EACH USE. This manual will explain how to use the work light safely and effectively. Please read and follow these instructions and precautions carefully. - Page 2 IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS. 1.1 SAVE THESE INSTRUCTIONS – This manual contains important safety and operating instructions. 1.2 Read, understand and follow all instructions, cautions and warnings listed in this manual. Failure to follow all instructions and abide by all cautions and warnings could result in personal injury, injury to others and property damage.
- Page 3 2.6 This product contains a lithium ion battery. In case of fire, you may use water, a foam extinguisher, Halon, CO , ABC dry chemical, powdered graphite, copper powder or soda (sodium carbonate) to extinguish the fire. Once the fire is extinguished, douse the product with water, an aqueous-based extinguishing agent, or other nonalcoholic liquids to cool the product and prevent the battery from re-igniting.
- Page 4 5.3 The green charging status LEDs will flash, to indicate charging has begun. 5.4 The number of green lights flashing indicates the level of charge. When the battery has charged fully, all three LEDs will show steady green. 5.5 Recharge the work light after use, and at least every 6 months. OPERATING INSTRUCTIONS 6.1 Hang the work light, using the hooks on the back.
- Page 5 TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION The work light does The battery is not charged. Recharge the battery to full not operate. charge. 10. SPECIFICATIONS Battery ..............(2) Lithium Ion, 3.7V, 2600 mAh Light (main) ............16 x 0.5W SMD LED, 6500K Light (top) .................. 3W LED, 6500K Lumen output (main) ..........300 lm (low);...
- Page 6 13. LIMITED WARRANTY WARRANTY TERMS AND CONDITIONS Schumacher Electric Corporation (the “Manufacturer”) or the resellers authorized by the Manufacturer (the “Reseller”) warrant this work light (the “Product”) for one (1) year, according to the following stipulations. Any and all warranties, other than the warranty included herein, are hereby expressly disclaimed and excluded to the fullest extent permissible under applicable law.
- Page 7 Common Warranty Provisions The warranty mentioned above only applies to the first professional or consumer user having legally acquired the Product from the Manufacturer or a Reseller. No warranty is extended towards clients, agents or representatives of those buyers. The Product is sold under the specifications, for the use and purpose in accordance with the provisions of this manual, with express exclusion and disclaimer of warranty of any other specifications, uses and purposes.
