Guangzhou Jin Ming Yuan stage lighting equipment Co., Ltd.

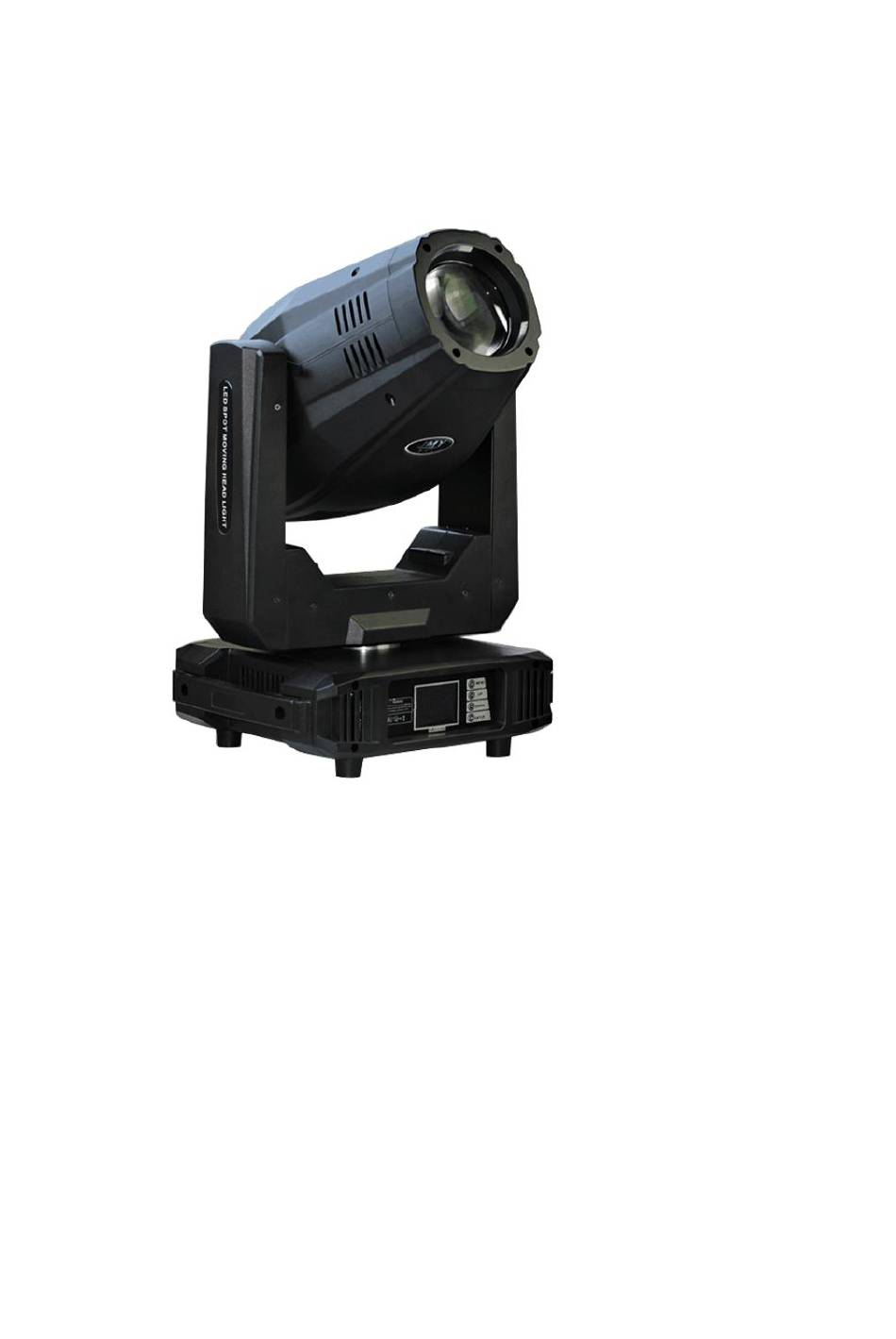

LED300W 3in1 Moving Head Beam Light

Instruction manual

(Please read the instructions carefully before use）

Table of Contents

Need help?

Do you have a question about the LED300W and is the answer not in the manual?

Questions and answers

Summary of Contents for Jin Ming Yuan LED300W

Page 1 Guangzhou Jin Ming Yuan stage lighting equipment Co., Ltd. LED300W 3in1 Moving Head Beam Light Instruction manual (Please read the instructions carefully before use）...
Page 2 Precautions and installation Maintenance  This lamp should be kept dry and avoid working in damp environment.  The intermittent use will effectively prolong the service life of this luminaire.  In order to obtain good ventilation effect and lighting effect, pay attention to frequent cleaning of fans and ...
Page 3  After power failure, it will take 20 minutes to fully cool the lamp before it can be energized again.  In order to ensure the normal use of this product, please read the instructions carefully. 1. Product parameters: LED 300W pattern head light Light source: 300W LED imported high brightness white light module Power: 600W Power: AC90-240V 50-60Hz...
Page 4 2. Signal line connection (DMX) Use the RS-485 cable that meets the specifications: shielding, 120ohm characteristic impedance, 22-24 AWG, low capacitance reactance. Do not use microphone cables or cables with different characteristics. Terminals must be connected with 3 or 5 pin XLR type male / female connectors.
Page 5: Tilt
support frame and the lantern handle to ensure safety and prevent the falling and sliding of the lamps. When the luminaire is installed and tested, pedestrians are prohibited from passing through it. Regular checks are made on whether the safety ropes are worn out and whether the hook screws are loose.
Page 6: Table Of Contents
Run mode 运行模式 Auto 自动 60 秒 Backlight 显示模式 Always 常亮 Save 保存 Exit 退出 0-255 水平 0-255 Pan Fine 0-255 水平微调 0-255 Tilt 0-255 垂直 0-255 Tilt Fine 0-255 垂直微调 0-255 Pan Tilt Speed 0-255 水平垂直速度 0-255 function 0-255 功能...
Page 7: Function
标准模式精简模（24 通式（20 通道功能 DMX 值道）通道） Standard Simple Function DMX Value mode mode X 轴 0－255 Pan Low X 轴微调 0－255 Tilt Y 轴 0－255 Tilt Low Y 轴微调 0－255 P/T Speed X Y 轴调速 0－255 Macro function 宏功能...
Page 8: Shutter
220－240 Empty 空 Empty 空 241－255 Shutter 频闪 Closed 闭光 SLOW - FAST 频闪由慢到快 4-103 Open 开光 104-107 108-207 FAST STROBE-SLOW STROBE 脉冲频闪由慢到快 Open 开光 208-212 随机频闪，频率由慢 RANDOM SLOW - FAST 213-251 到快 Open 开光 252-255 Dimmer 调光 Linear Dimmer 线性调光...
Page 9: Color Fine
30-39 Colour 3 颜色 3 Colour 4 颜色 4 40-49 Colour 5 颜色 5 50-59 60-69 Colour 6 颜色 6 Colour 7 颜色 7 70-79 Colour 8 颜色 8 80-89 90-99 Colour 9 颜色 9 Colour 10 颜色 10 100-109 Colour 11 颜色...
Page 10: Gobo
0－255 Linear 线性 Gobo 1 固图 white 白光 10-19 Gobo1 图案 1 Gobo2 图案 2 20-29 Gobo3 图案 3 30-39 40-49 Gobo4 图案 4 Gobo5 图案 5 50-59 Gobo6 图案 6 60-69 Gobo7 图案 7 70-79 Gobo8 图案 8 80-89 FAST ROTATION - SLOW 顺时针流水快到慢...
Page 11 172-185 Gobo 3 Jitter 图案 3 抖动 Gobo 4 Jitter 图案 4 抖动 186-199 Gobo 5 Jitter 图案 5 抖动 200-213 214-227 Gobo 6 Jitter 图案 6 抖动 Gobo 7 Jitter 图案 7 抖动 228-241 Gobo 8 Jitter 图案 8 抖动 242-255 EFF Gobo 效果图案盘...
Page 12 Gobo 2 旋转图案 white 白光 Gobo 1 图案 1 10-19 20-29 Gobo 2 图案 2 Gobo 3 图案 3 30-39 Gobo 4 图案 4 40-49 50-59 Gobo 5 图案 5 Gobo 6 图案 6 60-69 Gobo 7 图案 7 70-79 FAST ROTATION - SLOW 顺时针流水快到慢...
Page 13: Prism
226-235 Gobo 5 Jitter 图案 5 抖动 Gobo 6 Jitter 图案 6 抖动 236-245 Gobo 7 Jitter 图案 7 抖动 246-255 Gobo2/Rot 图案自转 Rotation 索引定位 0-63 FAST ROTATION - SLOW 逆时针由快到慢流水 64-126 ROTATION 127-128 STOP 停止 SLOW ROTATION - FAST 顺时针由慢到快流水...
Page 14 FAST ROTATION - SLOW 64－126 逆时针由快到慢流水 ROTATION STOP 停止 127－128 SLOW ROTATION - FAST 顺时针由慢到快流水 129－191 ROTATION 192－193 STOP 停止 SLOW ROTATION - FAST 正反转由慢到快 194－255 ROTATION Prism Rotation Fine 棱镜盘自转微调 0－255 Linear 线性 Iris 光圈 Linear 线性 0-134 FAST ROTATION - SLOW 快开慢关...
Page 15 7 Colour 七彩 7 Colour 七彩，线性 0-255 Foucs 调焦 0-255 Foucs 调焦，线性 Foucs Fine 调焦微调 Foucs Fine 调焦微调，线性 0-255 Zoom 放大 Reserve 无放大 0-127 Zoom 放大 128-255  6. Common failures and attention to use  1. common troubleshooting  The lamps and lanterns contain specialized components such as PCB, high voltage power and so on.
Page 16  Because of abnormal operation, the light bulb is not completely cooled, the lamp body should be cooled for more than 10 minutes, so that the interior of the lamp is fully restored to normal, and then the power supply can be restarted again.
Page 17: Focus
 3. pattern projection blur  Check whether the value of the electronic focus channel is suitable for the projection distance now.  4. the lamps and lanterns work intermittently  The reason is: the internal line is protected.  Check whether the fan operates normally or whether it is dirty or not, causing the interior temperature of the luminaire to rise.
Page 18 resistance;  6. light fixtures can not start  The reason is that the power supply line is bad.  Check whether the fuse on the power input socket is fusible and replace the insurance.  Lamps cause poor contact in long distance transportation due to vibration.
