Summary of Contents for Shadow-Caster SCM-TT-6

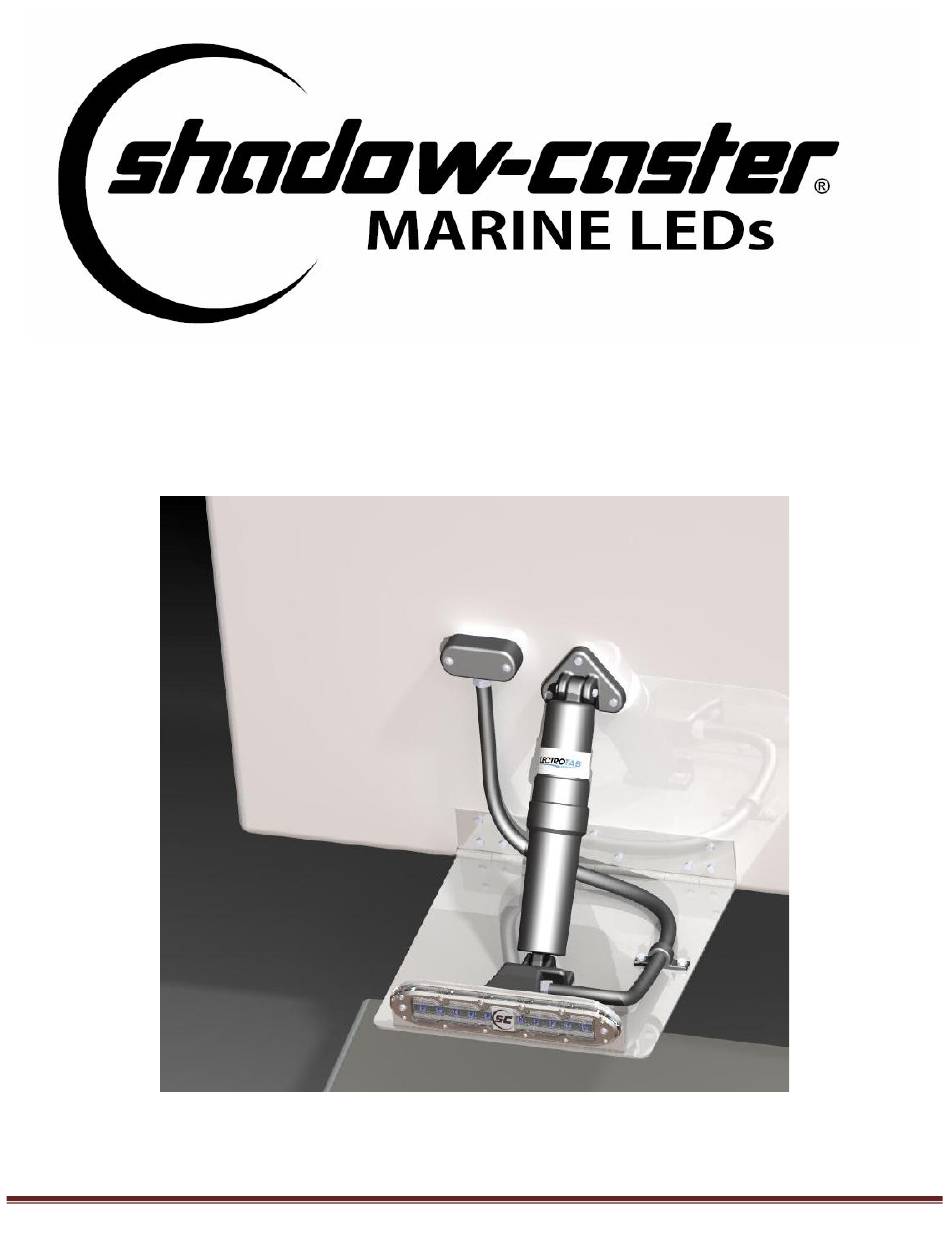

- Page 1 SCM-TT-4, 6 & 10 Trim Tab Mounting Kit Instructions Rev 1.20 Shadow-Caster LED Lighting, © 2014 Page 1...
- Page 2 This is an illustrational guide for installation of the Shadow-Caster Trim Tab Mounting Kit. Please refer to the parts list and illustration on pages 5 and 6 for detail component information. 1) Measure 1 ¼” back from tab edge 2) Drill holes for mounting screws...
- Page 3 11) Temporarilly Mount Transom fitting and 12) Route cable through hose and install cut hose to proper length. Hose should transom fitting with seal washer and be routed near trim tab hinge. 4200 sealant. Shadow-Caster LED Lighting, © 2014 Page 3...
- Page 4 Locate and install cable clamps as shown Trim Tab Mounting Kit installation is complete! Install wiring per ABYC guidelines. Shadow-Caster LED Lighting, © 2014 Page 4...
- Page 5 BUTTON HEAD SCREW 8-32 X 3/4" 316SS FLAT HEAD SOCKET SCREW 10-24 X 5/8" 316SS BUTTON HEAD SCREW 8-32 X 1/2" 316SS LOCKING NUT 1/4-20 316SS LOCKING NUT 8-32 316SS LOCKING NUT 10-24 316SS Shadow-Caster LED Lighting, © 2014 Page 5...
- Page 6 Illustration Shadow-Caster LED Lighting, © 2014 Page 6...
