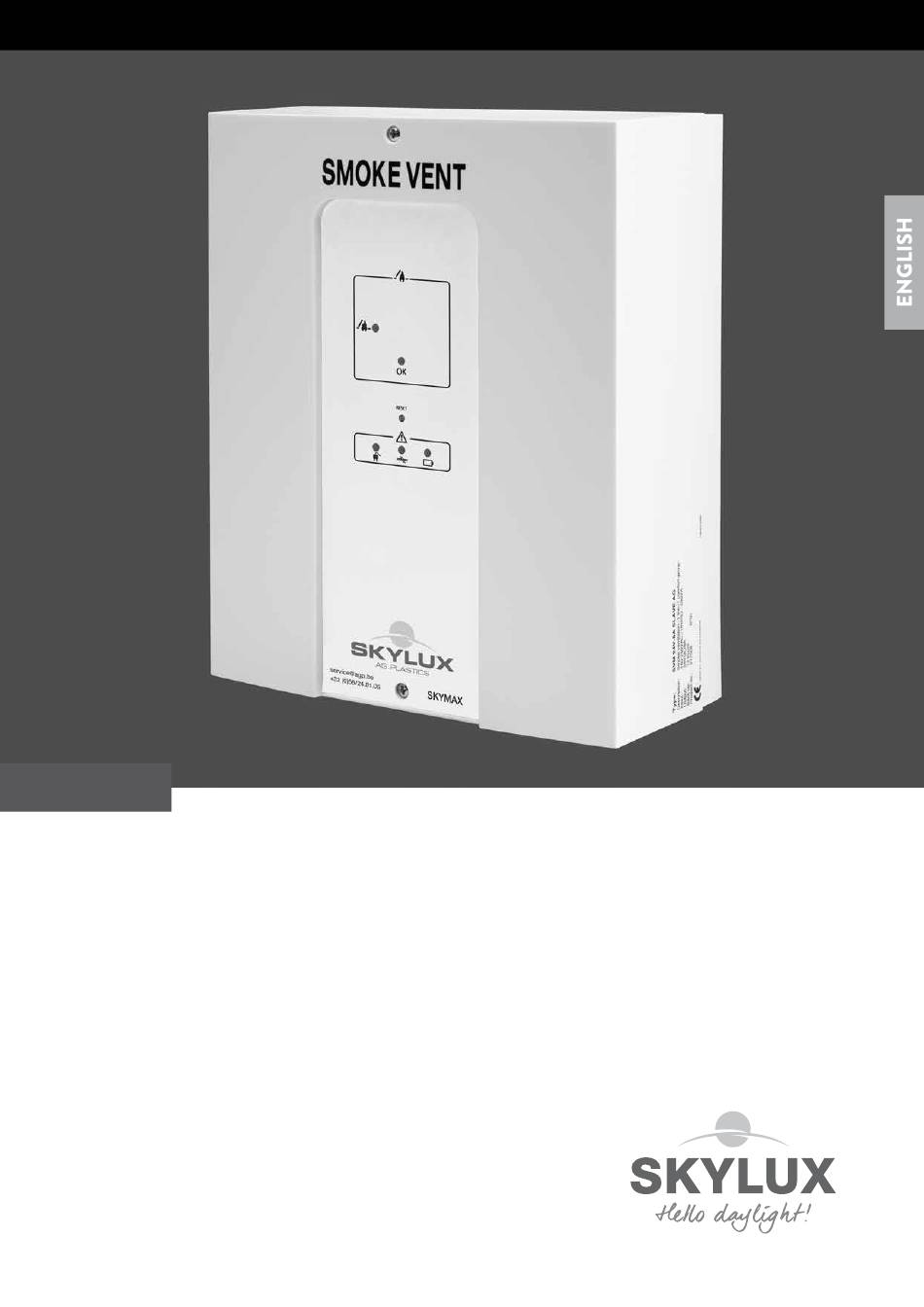

SMOKE AND HEAT EXTRACTION CONTROL
EN
Skycom Skymax CE
24V/5A
User manual and installation instructions
Release: 10-2016

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Skycom Skymax CE 24V/5A and is the answer not in the manual?

Questions and answers

Summary of Contents for SKYLUX Skycom Skymax CE 24V/5A

  • Page 1 SMOKE AND HEAT EXTRACTION CONTROL Skycom Skymax CE 24V/5A User manual and installation instructions Release: 10-2016...
  • Page 2: Table Of Contents

    Phone no.: ..................................Contact person: ................................. Date of installation: ................................System Description Number of SHE control: Number of opening system(s): Master(s) (24V/8A): ........Skylux 160° CE: ........Slave(s) (24V/8A): ........Skymax CE: ........Skymax (24V/5A): ........Skymax Standard: ........Cintramax CE: ........
  • Page 3: Introduction

    We developed also a control unit fort he Skymax CE : the Skycom Skymax CE control. ® ® ® The SHE survey (p. 4) mentions the combinations of control units and smoke hatches allowed and supported by Skylux. 3/26 01/10/2016 E_MH_Installation_instruction_Skycom_Skymax_CE...
  • Page 4: She Survey Ag.plastics

    SHE TABLE 4/26 E_MH_Installation_instruction_Skycom_Skymax_CE 01/10/2016...
  • Page 5: Safety & Warnings

    SAFETY & WARNINGS 1. The SHE-control must be installed or serviced by a qualified person, authorised for working at electrical Smoke and Heat Extraction systems. The control and accessories must be installed according to the local norms. 2. Service! Before installation or service disconnect electrical power and remove the indicated terminal of the battery. Afterwards reconnect the terminal, mount the housing before switching on electrical power.
  • Page 6: General Description

    GENERAL DESCRIPTION The Skycom CE controls are intended for opening of skylights, smoke hatches, ... for Smoke and Heat Extraction (SHE) and comfort ventilation of 1 fire zone. The Skycom Skymax CE control is typically used to command 1 Skymax smoke hatch in a staircase. The Skycom Skymax control has the following operation possibilities (upon accessories): Operation for Smoke and Heat Extraction (control in Alarm-status): Automatically activated: by smoke or heat detectors.
  • Page 7 SCHEME SKYMAX ® at the ceiling, as near as possible to the smoke hatch SKYCOM SKYMAX CE *4*6 *3 *4 standard option 7/26 01/10/2016 E_MH_Installation_instruction_Skycom_Skymax_CE...
  • Page 8: Connection, Operation And Settings

    1-3 (Ext Li Mon), or no line monitoring when J2/J3 is removed Fuse 8A for actuator output a. Jumper J2 mounted in pos. “Motor line” (Setting for Skylux 160° CE, Skymax CE old and new and Cintramax ®...
  • Page 9 (Only last actuator) Electronic current limiter, type LIP function and setting (Skylux 160°CE, Cintramax CE, Skymax CE) The current limiter type LIP (mounted on the opening system) is used as current limiter for the actuator. On the LIP5, and younger version max. 3 times overload cut outs in the same direction is allowed. After which it will not be possible to run in this direction again, before the motor has run in the opposite direction.
  • Page 10: Fire Switches

    Fire switches The fire switch will contain the following: • Breakable glass window and red control button, activated by pressure - this puts the control unit in ALARM status, by which the motor output is activated (for DIP NO normal service and testing the lid can be opened with a key). •...
  • Page 11: External Priority Switch

    External priority switch for firemen external priority switch CONTROL PRIOR If present, remove resistors when connecting priority switch MAIN PCB CLOSE OPEN Comfort Weather 22 23 LINK SVM addon PROGRAM POWER OPEN OPEN CLOSE CLOSE The optional add-on PCP (SVM AddOn) is already connected. With correct SW (Version 042 or higher), LD3 + LD2 flash for 5 sec.
  • Page 12: Smoke-/Heat Detectors

    Smoke- / heat detectors Smoke- and heat detectors are connected as shown. Line monitoring: Correct line monitoring can only be guaranteed with detectors delivered 16 17 from the supplier. Other detectors may have different internal resistances and stand by power consumption. Connect max 20 pc per control.
  • Page 13: Weather Sensor / Close All Functions

    Weather sensor / Close all function Install the rain- and wind detection as close as possible to the smoke hatch, at a place, where the wind speed is equal to the wind speed of the smoke hatch (do not install the detector at eg the outside of the roof edge trim).
  • Page 14: More Control Units Linked To One Fire Group (Bus Connection)

    More controls connected in one fire group (bus connection) When there is only 1 control unit in the fire group, terminals A 1 2 3 and B 1 2 3 are not used. The communication is interrupted by removing all the jumpers. START TERM.
  • Page 15: Special Functions

    Special functions Sprinkler function: DIP 9 On - a special function comes in use where sprinkler systems are installed. With this function activated, the actuator output closes, if smoke-/heat detector input is activated. If the fire switch is activated, the actuator output opens. Weekly open/close: DIP 7 On - the motor output opens shortly (3 seconds) once a week and closes immediately after - This function is used to give the right tension on the smoke vents to keep them airtight.
  • Page 16: Electrical Schemes

    Skycom Skymax CE 24V - 5A ALARM BUZZER FAILURE LED 1 Smoke LED 2 Smoke BUZZER ON/OFF LED 3 Wind & LED 4 Line err LED 5 Flashes LED 6 Line err LED 7 Bus-sig Flashes Red 2,5mm2 RESET Max. AC FAIL LINE FAIL BATT LOW...
  • Page 17 Options (accessories) Relevant Relevant Terminals Jumpers (& resistors) vent opens vent closes & rain sensor active 21-22 ror motor 1-2-3 J2-J3 13-14 s: Line error PRIOR switch (see Add-on PCB) ror smoke/heat sensor 16-17 gnal from other control is missing A123/B123 J4-J5-J6-J7 s: bus-signal from Add-on PCB is missing...
  • Page 18: Skymax Ce (With Positive Safety)

    18/26 E_MH_Installation_instruction_Skycom_Skymax_CE 01/10/2016...
  • Page 19: Settings (Jumpers, Dip Switch

    Settings (factory setting: marked in bold) By means of jumpers and dip switches it is possible to enable/disable several functions. Factory settings are for 1 opening system Skymax CE with 1 Skycom Skymax control. Text on board Factory Mounted / ON function Dismounted / OFF function mounted Fire switch active from 0-3KΩ...
  • Page 20: Frontpanel

    FRONT PANEL: LED’s (MASTER & SLAVE) & BUTTONS (MASTER ONLY) RESET SKYMAX 20/26 E_MH_Installation_instruction_Skycom_Skymax_CE 01/10/2016...
  • Page 21: Led Indication (External & Internal)

    LED INDICATIONS Front panel Symbol Colour & Operation possibilities for: Alarm/ Comfort Visibility fire operation Green lights if everything is ok switched off by local error on this control flashes by error message from other controls received by bus Alarm: Control in alarm via own entry Flashes: Control in alarm via other control Fault: AC or DC or line error.
  • Page 22: Cables

    Skymax CE (old version) Skymax CE ** 2 x 2,5 A 3,75 A Skylux 160°CE LM ** Skylux 160°CE LM (2 motors) ** 2 x 4 A * Only to be used to determine the Skylux 160°CE RM ** 2,5 A...
  • Page 23: Maintenance

    MAINTENANCE The functions of the control unit and the opening system must be tested by authorized personnel at least once a year. The control unit informs when the maintenance should be done. The external LEDs on the front panel flashes fast (run- ning light).
  • Page 24: Spare Parts And Accessories

    28662 LIP 5: Electronic limit switch for Skylux 160° CE with 1 motor 26811 LIP 6: Electronic limit switch for Skymax CE, Cintramax CE and Skylux 160 CE with double motor 31439 IP65 Protection box for limit switch (LIP) 19794...
  • Page 25: Ce Declaration Of Conformity

    DECLARATION OF CONFORMITY We, AG.Plastics Spinnerijstraat 100 8530 Harelbeke-Stasegem Belgium declare under our sole responsibility that the product: Skycom Skymax CE 24V-5A (name, type or model, lot, batch or serial number, possible sources and numbers of items) to which this declaration relates is in conformity with the following standard(s) or other normative document(s).
  • Page 26: Technical Specifications

    : OK, AC fault, Low battery, Line fault, Alarm, comfort open not present on Slave Manufacturer: AG.PLASTICS, Spinnerijstraat 100, B-8230 Harelbeke, Belgium, website: www.skylux.be SHE service: Tel.: +32 (0) 56 24 81 05 I e-mail: service@skylux.be REVISIONS Skycom Skymax CE Control: Version...
