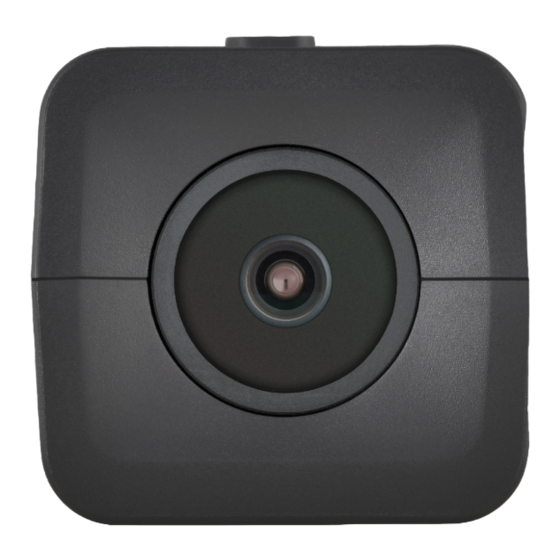

Summary of Contents for EscortRadar M1

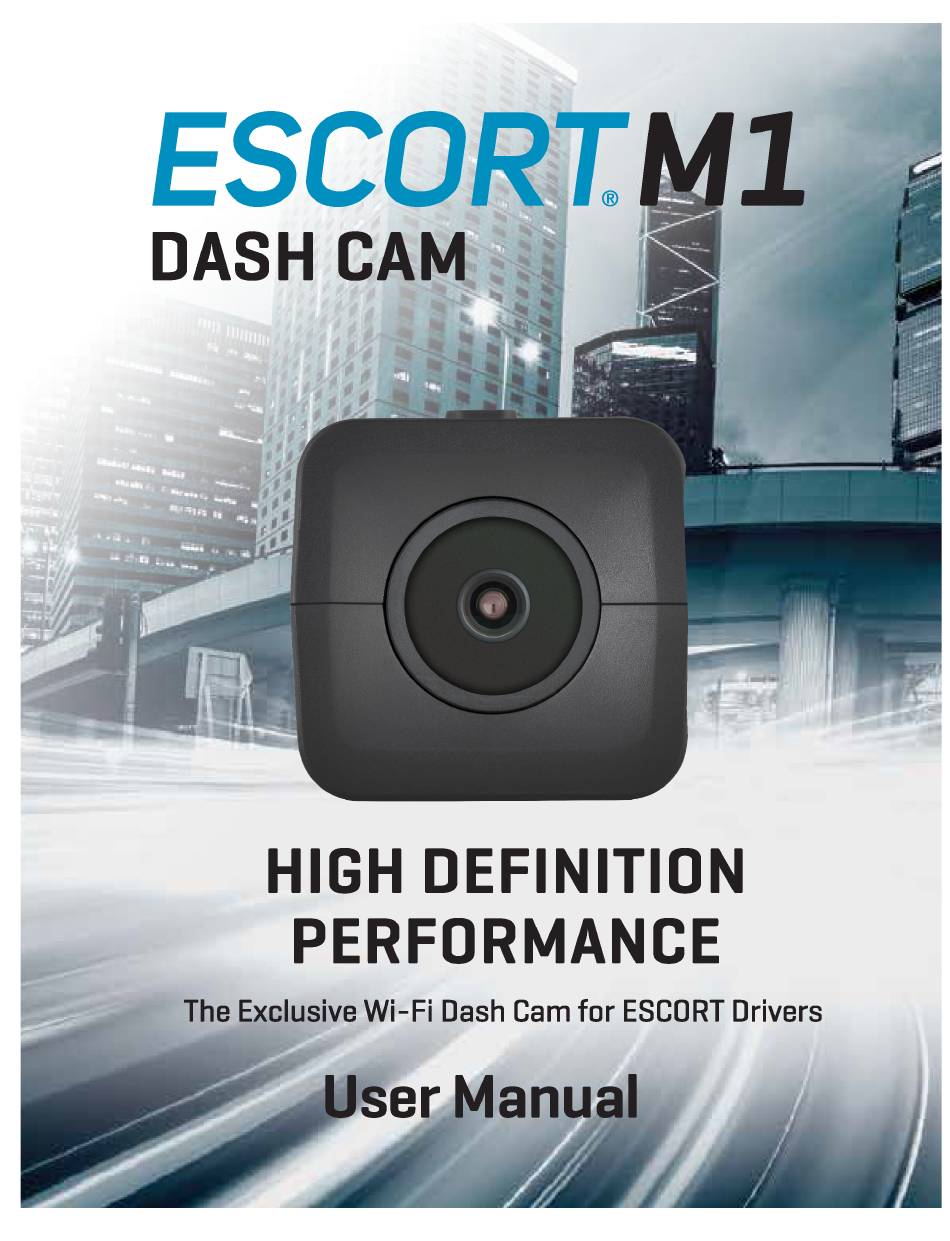

- Page 1 P a g e...
-
Page 2: Table Of Contents
Basic Operation ......................... 10 Buttons, Status Indicator LED & Buzzer ..................11 Downloading M1 App ....................... 12 Connecting to Wi-Fi ........................12 Escort M1 App Settings ......................13 Connection to a Computer ......................15 Software Update ........................15 Troubleshooting ........................17 Trademark Acknowledgement, Warning, Regulatory Information .......... -
Page 3: Introduction
Please read this User Manual to acquaint yourself with the various features of the Escort M1. COMPATIBILITY Please refer to the M1 compatibility chart below to make sure it works with your Escort (and Beltronics) radar/laser detector: Brand... -
Page 4: M1 Features
M1 FEATURES Wi-Fi Connectivity to the Escort M1 App – Review or edit video files recorded on the micro SD memory card and transfer to your smartphone via the Escort M1 App. Please refer to the “Downloading the M1 App” and “Connecting to Wi-Fi” section of this manual for details. - Page 5 M1 App, if you prefer not to record audio. Auto Record and Auto Power Off - As soon as power is applied the M1 turns on and starts recording. When power is removed, the M1 will safely stop recording and shut down.
-
Page 6: Product Service And Support
3. Label the outside of the package clearly with your Return Authorization Number. 4. Ship the Product prepaid (insured, for your protection) to: ESCORT, Inc., 5440 West Chester Rd., West Chester, OH 45069. Register your product at: www.escortradar.com/pages/registration Full manual available at: www.escortradar.com P a g e... -
Page 7: Installation Instructions
F. Sticky Cup Mount Thumb Screw x 1 G. Sticky Cup Mount x 1 Note: The 45mm M1 Bolt for the Sticky Cup Mount will replace the existing carriage bolt on your detector Sticky Cup Mount. Installation of the M1 to your Detector’s Sticky Cup Mount... - Page 8 3) Sandwich the (C) Camera Mount Arm with the (A) Lock Washer and (B) Standard Washer as shown in the image above. 4) Mount the Camera Mount Arm and washers onto the (D) 45mm M1 Bolt and tighten with ○ Sticky Cup Mount Thumb Screw.
-
Page 9: Controls And Connections
CONTROLS AND CONNECTIONS P a g e... -
Page 10: Basic Operation
When plugged in, the camera will power on and start recording automatically. WARNING! • Do not remove the micro SD memory card while the M1 is on and recording. This will corrupt the video clip that was recording when the card was removed. -
Page 11: Buttons, Status Indicator Led & Buzzer
BUTTONS, STATUS INDICATOR LED, & BUZZER The M1 has a Status Indicator LED and Buzzer to communicate its operational/recording status. Please refer to the details in the table below: 1. CONTROLS & INDICATORS Operation M1 Dash Cam Unit Status Indicator LED Buzzer Using M1 Dash Cam inside your vehicle: Power Button Important: Power Button is When the engine starts and LED stays steady RED for 3 Short, single beep will sound. -
Page 12: Downloading M1 App
M1 Dash Cam App. Once you have installed the Escort M1 App follow the steps below to connect the M1 to your smartphone: 2. Connecting M1 to Wi-Fi Connecting M1 Dash Cam to your Android or iOS smartphone... -
Page 13: Escort M1 App Settings
ESCORT M1 APP SETTINGS The following settings can be changed via the Escort M1 App. CAMERA SETTINGS Video Resolution: This setting allows you to set one of three available video recording resolutions: 1080P Full HD 1920x1080 30 Frames per Second (default) - Page 14 G-Sensor Sensitivity: Your dash cam includes a built in G-Sensor which allows it to determine if the car has been in a collision. If the camera detects a collision, it automatically locks the recording at the time of the accident. You can use this setting to set the sensitivity of the G-Sensor from 1-3 or turn it off.
-
Page 15: Connection To A Computer
CONNECTING TO A COMPUTER The M1 can connect to a computer via the micro USB port located on the back of the unit. A micro USB to USB Type A cable is included for your convenience. Alternatively, you can remove the micro SD Card and plug it directly into a computer (may require an adapter - not included). -
Page 16: Troubleshooting
TROUBLESHOOTING If your unit is not operating properly, please follow these troubleshooting steps: • Make sure the power cord to the M1 as well as the pigtail cord from the M1 to the detector are both properly connected. • Make sure the socket of your vehicle’s cigarette lighter is clean and free of corrosion. - Page 17 TRADEMARK ACKNOWDLEGEMENT, WARNINGS, and REGULATORY INFORMATION ©2017 ESCORT Inc. ESCORT®, M1®, and Sticky Cup Mount™ are trademarks of ESCORT, Inc. FCC NOTE: Modifications not expressly approved by the manufacturer could void the user’s FCC granted authority to operate the equipment.
