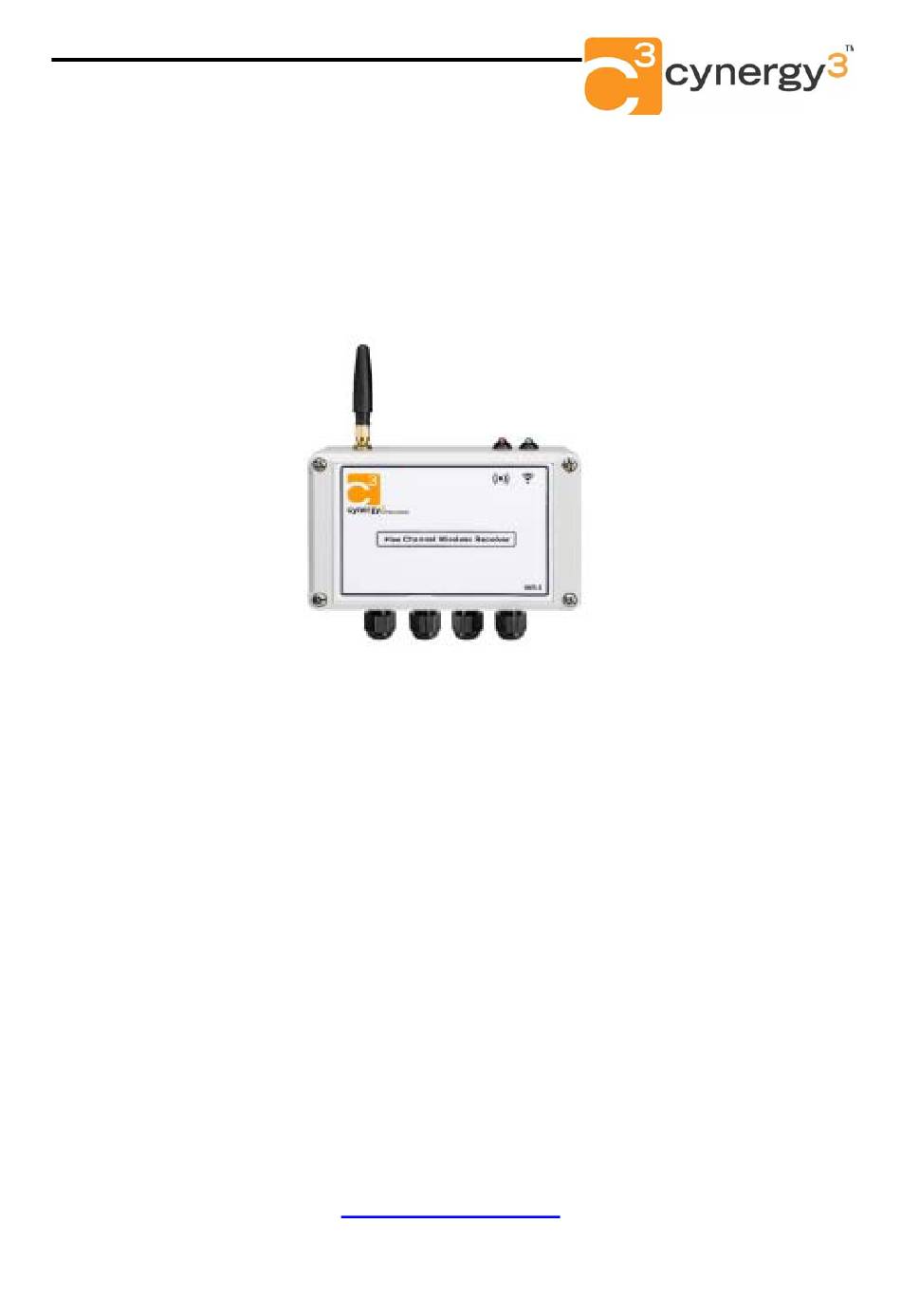

IWR-5 Wireless Pressure & Temperature Receiver - Operating Manual
IWR-5
Five Channel
Industrial Wireless Pressure/Temperature Receiver
Whilst every effort has been taken to ensure the accuracy of this document,
we accept no responsibility for damage, injury, loss or expense resulting
from errors or omissions, and reserve the right of amendment without
notice.
This document may not be reproduced in any way without the prior written
permission of the company.
Issue 2.1 September 2018
Cynergy3 Components Ltd.,
7 Cobham Road, Ferndown Ind. Est., Wimborne,
Dorset, BH21 7PE, UK
Tel: +44(0)1202 897969, email: sales@cynergy3.com
www.cynergy3.com
IWR-5 Iss2.1
Page 1
Advertisement
Table of Contents
Summary of Contents for Cynergy3 IWR-5
- Page 1 IWR-5 Wireless Pressure & Temperature Receiver - Operating Manual IWR-5 Five Channel Industrial Wireless Pressure/Temperature Receiver Whilst every effort has been taken to ensure the accuracy of this document, we accept no responsibility for damage, injury, loss or expense resulting from errors or omissions, and reserve the right of amendment without notice.
-
Page 2: Table Of Contents
Wireless Pressure & Temperature transmitters and output the measured value as 4-20mA or 1-5Vdc analogue output signals. The IWR-1 has a single output and the IWR-5 has five outputs, each of which can be linked to an individual transmitter. -
Page 3: Unpacking
3. IWR-5 Receiver set up procedure The IWR-5 receives data from up to 5 off wireless pressure or temperature transmitters and produces 4-20mA or 1-5Vdc analogue outputs representing 0 - 100% of each of the wireless transmitters connected. - Page 4 IWR-5 Wireless Pressure & Temperature Receiver - Operating Manual Dipswitch Configuration The 8 way Dipswitch 1 is used to configure the basic functionality of the IWR-5 The RF network code must be the same as the IWPT units to be used with the receiver unit.
- Page 5 LED 7 flashes when a valid transmission is received from any connected transmitter. There is also an indicator LED for each output channel of the IWR-5. These are used to indicate the following alarm conditions for each channel:...
-
Page 6: Trouble-Shooting Guide
IWR-5 Wireless Pressure & Temperature Receiver - Operating Manual If full scale calibration has been achieved LED1 will go amber for 0.5 seconds as calibration values are learnt and saved to memory. To cycle which channel is being calibrated push the UP or DOWN buttons until the LED linked to the channel to be calibrated is lit. -
Page 7: System Part Numbers
IWR-5 Wireless Pressure & Temperature Receiver - Operating Manual SYSTEM PART NUMBERS Temperature Transmitters Pressure Transmitters Part Num ber Pressure Range Part Num ber Transm itter Type IWPT-G1000-00 0-1 Bar g IWTTP100A PT100 6x100mm 1/4"BSP IWPT-G6000-00 0-6 Bar g IWTTP150A PT100 6x150mm 1/4"BSP... -
Page 8: Specifications
IWR-5 Wireless Pressure & Temperature Receiver - Operating Manual 6. SPECIFICATIONS System Performance Accuracy (non-linearity & hysteresis) <±0.25% / FS (BFSL) Setting Errors Zero & Full Scale,<±0.5% / FS Operating Temperature -20 to +50 °C Storage Temperature -20 to +80 °C...
