Summary of Contents for AVLink IEB22

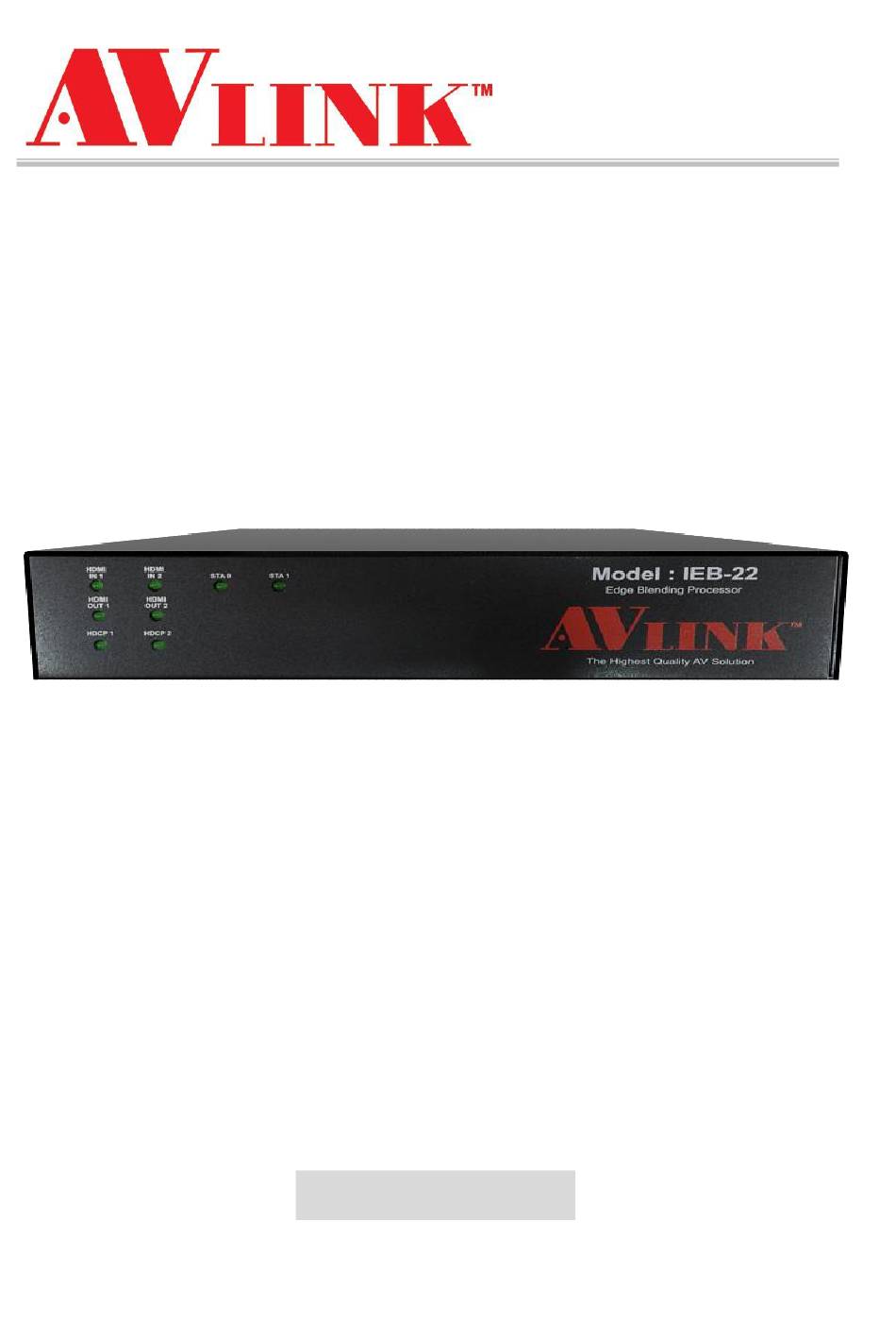

- Page 1 User Manual Projector Edge Blending V.2018 IEB-22 10...
-
Page 2: Copyright And Trademarks
COPYRIGHT AND TRADEMARKS All rights reserved by AVLINK GROUP LTD., No part of this document may be reproduced in any form or by any means without written permission from the product manufacturer. Changes are periodically made to the information in this document. -
Page 3: Before You Begin
BEFORE YOU BEGIN Follow all instructions marked on the device during using. Provide proper ventilation and air circulation and do not use near water. It is better to keep it in a dry environment. Place the device on a stable surface (example cart, stand, table, etc.). ... -
Page 4: Table Of Contents
TABLE OF CONTENTS Copyright and Trademarks ......................1 Before You Begin .......................... 2 Table of Contents .......................... 3 List of Figures ..........................4 Chapter 1 Overview........................5 1.1 Introduction ........................5 1.2 Packing........................... 6 1.3 Applications ........................6 Chapter 2 Features ........................7 Chapter 3 Specifications ...................... -
Page 5: List Of Figures
LIST OF FIGURES Figure 1-1: IEB-22....................... 5 Figure 4-1: IEB-22 with 1U Rack-Mount Bracket ............9 Figure 4-2: Place the device on a Sturdy Surface ............9 Figure 5-1: IEB-22 Front Panel ..................10 Figure 5-2: IEB-22 Rear Panel ..................11 Figure 5-3: HDMI Connector ................... -
Page 6: Chapter 1 Overview
CHAPTER 1 OVERVIEW 1.1 Introduction The IEB22 is a projector edge blending consists of multiples projectors lied together contiguously or overlapped in order to form one large screen. Use typical display technologies and mullion compensation with seamless output feature. The IEB22 is a two-channel image processor that supports 1080P high resolution signal input and can be used to combine multi projector planes. -
Page 7: Packing
1.2 Packing IEB-22 (H) x 1 12V/5A Power adaptor x 1 CD Manual x 1 HDMI cable x 4 Micro USB cable x 1 1.3 Applications Edge blending can be used to display information for: Public and Emergency Services Telecommunications ... -
Page 8: Chapter 2 Features
CHAPTER 2 FEATURES Projector edge blending can be configured as overlap adjustment through convenient computer tools. The computer tools are user-friendly and flexible, allowing users to easily operate. Color temperature adjustments Supports USB connector for connect the IEB-22 with computer. ... -
Page 9: Chapter 3 Specifications
CHAPTER 3 SPECIFICATIONS Hardware HDMI Type A Female: Input Connector IEB-22 (H) x 2 HDMI Type A Female (Local Video Output): Output Connector IEB-22 (H) x 2 USB Connector Micro USB type x 1 Digital Optical Toslink x 1 Audio port RCA Digital Audio x 1 Power DC/12V... -
Page 10: Chapter 4 Installation
CHAPTER 4 INSTALLATION IEB-22 has a black metallic housing. It can be placed on a sturdy desk directly or installed on a bracket. You can also use the rubber feet pasted on the bottom of the chassis to protect your device when you want to place the device on a working desk. Figure 4-1: IEB-22 with 1U Rack-Mount Bracket Attach the rubber feet to the bottom of the device, Place the device on a sturdy, level surface that can support the weight. -
Page 11: Chapter 5 Front/Rear Panels
CHAPTER 5 FRONT/REAR PANELS 5.1 Front Panel Figure 5-1: IEB-22 Front Panel The IEB-22 support 8 clear LED indicators designed for device status. HDMI IN1/IN2 LED indicator: Specified for HDMI cable plug into input port status, if the LED is extinguished, it’s mean that HDMI cable plugged in is not good enough. ... -
Page 12: Rear Panel
5.2 Rear Panel Figure 5-2: IEB-22 Rear Panel IEB-22 is support up to 2 output jacks on the rear panel, each female terminal separately form the output jacks. IEB-22 terminal channels numbered as output HDMI1/2 are for signals output. The input interface with “INPUT HDMI1/2” jack supplies you to connect to different equipment including CD/DVD player, Blu-ray player, PS3 and so on. -
Page 13: Connectors
5.3 Connectors 5.3.1 HDMI Figure 5-3: HDMI Connector HDMI Type A Connector host assignment: Pin # Signal Pin # Signal TMDS Data 2+ TMDS Clock Shield TMDS Data 2 Shield TMDS Clock - TMDS Data 2- TMDS Data 1+ TMDS Data 1 Shield DDC SCL TMDS Data 1- DDC SDA... -
Page 14: Chapter 6 Connections
CHAPTER 6 CONNECTIONS Before making the connections, make sure all devices are powered off. Refer to the illustrated connections below and also to the user manual of the device you are connecting to the IEB-22. Figure 6-1: IEB-22 Connections 6.1 Input Connection Use the HDMI connecting cable to connect the Input serial jack (INPUT HDMI1/2) to the HDMI jack of the Blu-ray/DVD player/graphics workstations/PC. -
Page 15: Output Connection
6.2 Output Connection Use the HDMI cable to connect the output HDMI1/2 jacks on the rear panel to the remote input jack of the projector, video recorder, display, HD TV or multiplexer directly. Figure 6-3: Output Connection-HDMI 6.3 Micro USB Connection The IEB-22 was provided Micro USB communication ports. -
Page 16: Audio Output Connection
6.4 Audio Output Connection Use the audio cable of male to male to connect the speaker. Figure 6-5: Audio Output Connection 6.5 Power Connection Use the included 12V DC adaptor to connect the power source from the power port on the rear panel of IEB-22 to the outlet. -
Page 17: Chapter 7 Troubleshooting
2) Wait a second later, connected the device with PC though the USB cable again. 3) Wait five seconds later, open the AVLINK Edge Blending Tool, if still get the same error message, please return your device to local supplier or factory 4.
