Duro Dyne DYNA-TITE CL23-WC6 Assembly Instructions And Warnings

CL23-WC6
Assembly Instructions and Warnings

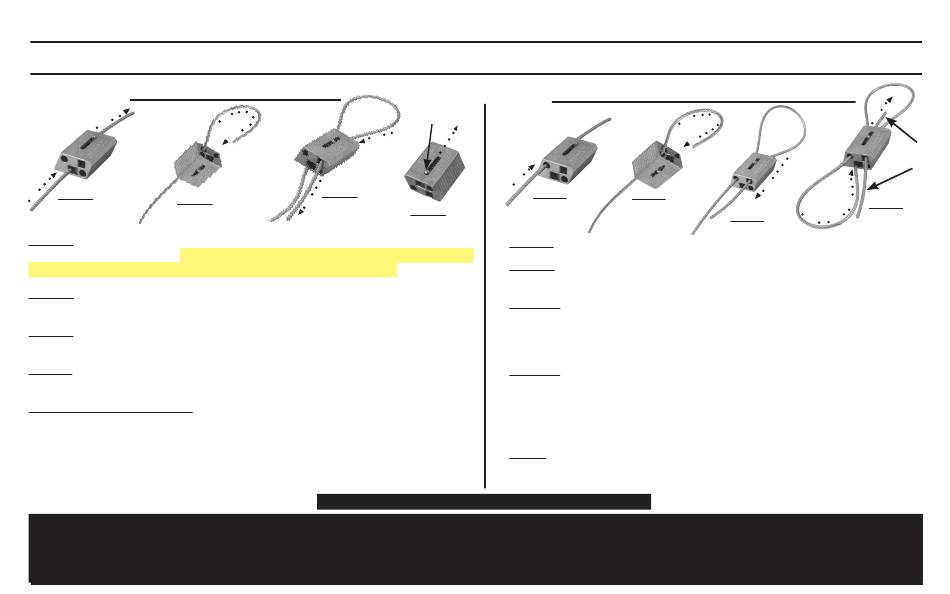

STANDARD ASSEMBLY

STEP 1
STEP 2
STEP 1: Pull the release pin back and thread the wire rope into one locking
channel in the cable lock. Failure to pull adjustment pin first may cause
damage to serrated teeth and reduce holding capacity.
STEP 2: Pass the wire rope "tail" through (or around) the anchor point (Eye-
hook, Beam, or Purlin).
STEP 3: Pull the release pin back and push the wire rope tail into the second
locking channel in the cable lock. Push through at least 6" of wire rope.
STEP 4: Prior to the load being applied, the wire rope can be adjusted in either
direction by pulling back the release pin and moving the wire.
Adjusting The Cable Lock: With the load off the wire rope and the Cable
Lock, push the release pin in the direction of the arrow on the Cable
Lock. This will release the locking pawl and allow the wire rope to be
moved freely in either direction. (After a load has been applied it may be
necessary to pull the cable slightly to disengage the teeth on the pawl).
Be sure the load is fully supported before attempting an adjustment.
ATTENTION: Always confirm engagement of cable lock on wire before applying load
by pushing the adjustment pin in the opposite direction of the arrows on the cable lock
and then pulling the cable also in the opposite direction of the arrows on the cable lock.
-
The DYNA-TITE Cable Lock
release
pin
STEP 3
STEP 4
FOR STATIC LOAD APPLICATIONS ONLY!
TM

OPTIONAL FIGURE 8 ASSEMBLY

STEP 1
STEP 2
STEP 1: Thread the wire rope into the "through hole" in the CL23-WC6.
STEP 2: Pass the wire rope "tail" through (or around) the anchor point
(Eyehook, Beam, or Purlin).
STEP 3: Pull the release pin back and push the wire rope tail
into one locking channel in the CL23-WC6 and pull at least six
inches of the wire rope through.
may cause damage to serrated teeth and reduce holding capacity.
STEP 4: Pass the other wire rope end through (or around) the
bracket or fixture on the object to be suspended. Return the wire
rope to the CL23-WC6. Pull the release pin back and push at least
six inches of wire rope through the remaining locking channel.
F o r a d j u s t m e n t s s e e S t e p 4 i n S t a n d a r d A s s e m b l y.
Note: There needs to be a 12" minimum spacing between the
cable lock and the top anchor point, and a 1 duct diameter
minimum spacing between the cable lock and the ductwork.
finished
length 6 in.
STEP 4
STEP 3
Failure to pull adjustment pin first
