Summary of Contents for Coda Music STOMP

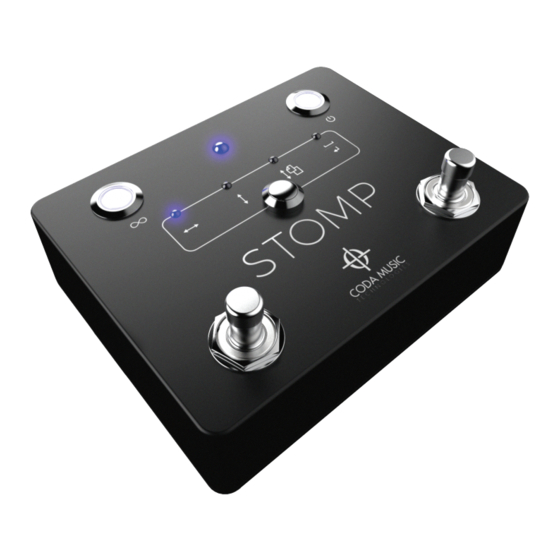

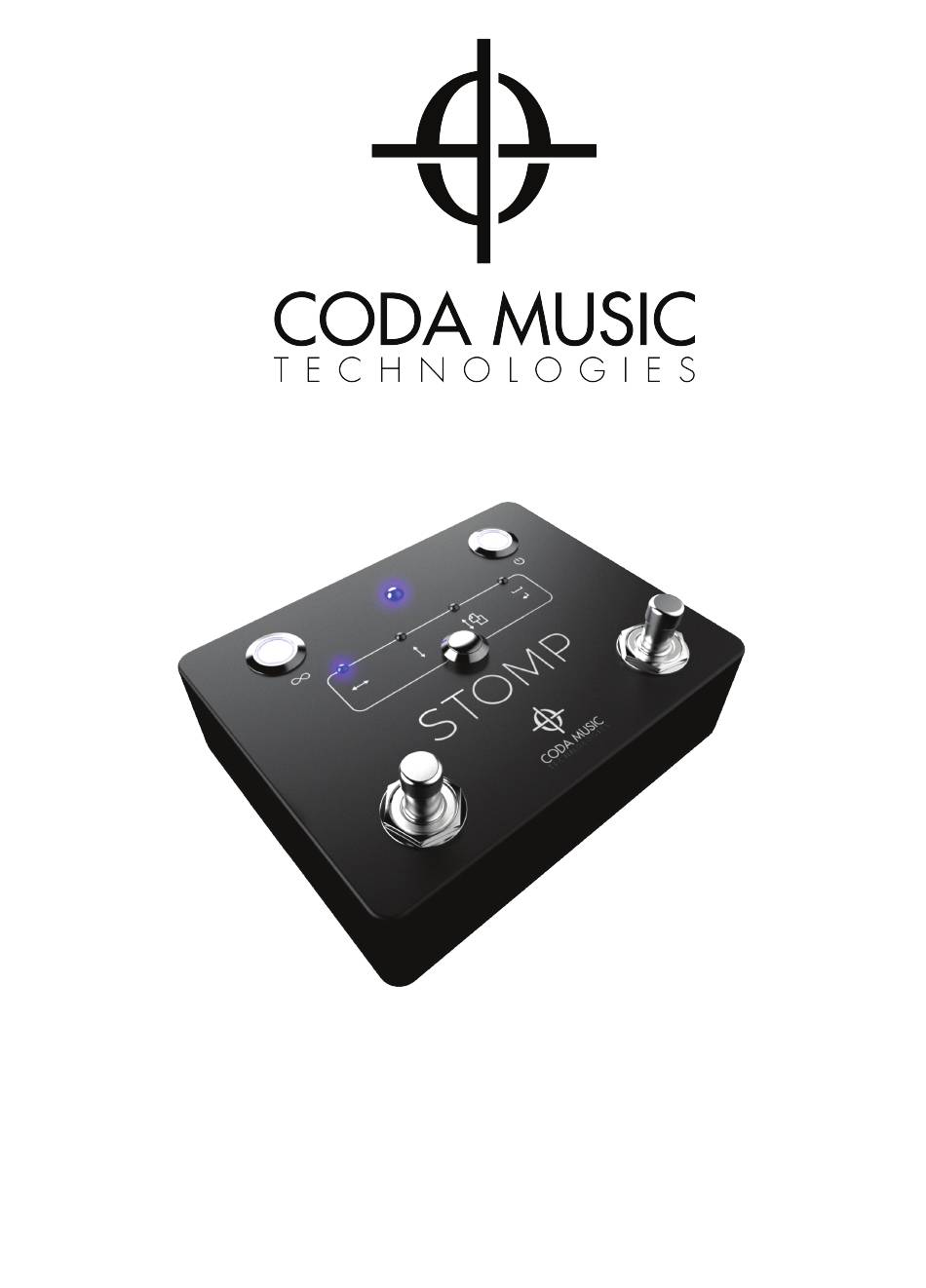

- Page 1 STOMP BLUETOOTH® PAGE TURNER & APP CONTROLLER www.codamusictech.com...
-
Page 2: Quick Start
4s® and later, and most Android® devices running Android® 4.3 or later with Bluetooth® 4 or 5. STOMP is designed to work with compatible apps for Apple® iOS, Android®, PC, and MAC, that receive HID keyboard commands. There are literally hundreds of compatible apps available but for a short list of some of our favorites please visit codamusictech.com/apps. -
Page 3: Power Requirements
Power ON/OFF To power on or off your STOMP, make sure you have installed a new 9-volt battery or connected a compatible 9VDC power supply, then press and release the power button located in the top right-hand corner of the pedal. Once the pedal has been powered on, the blue status LED will flash slowly when in pairing mode, or become solid blue when paired. - Page 4 Modes STOMP has four selectable modes which work with the majority of apps on the market. The different modes are used to send different commands to your favorite app and device. Different apps use different modes, so make sure to experiment with STOMP’s four modes to determine which works best with your favorite app.
-
Page 5: Virtual Keyboard
Battery Life & Sleep Mode STOMP will remain powered for up to 150 hours using a 9-volt 220mAh battery. To ensure extended battery life STOMP will activate sleep mode after 25 minutes of inactivity. Sleep mode disables all LEDs but keeps an active pairing status with your host device. -
Page 6: Led Status Indicator
STOMP pedal into a compatible 9VDC 1500mA power supply, and plug a USB cable into STOMP and your device. The charging voltage is 1A to ensure safe charging of smartphones, but it can also provide power to 2A tablets. If you are charging a 2A device such as an iPad, STOMP will keep it powered but recharge slowly. -
Page 7: Troubleshooting
Troubleshooting If you experience problems with your STOMP Bluetooth® Pedal, try the following: STOMP is not pairing with host device: Forget the device “Coda Music Tech” from within the Bluetooth® settings of your host device. Turn off STOMP. Turn off the Bluetooth® setting of your host device. -
Page 8: Technical Specifications
Technical Specifications Model Name: STOMP Dimensions: 4.67” x 3.68” x 1.18” Weight: 12 oz Power Requirements: DC 9V 1500mA Wireless Range: Approximately 50 feet Operation Type: Bluetooth® 4.0 Low Energy Operating Frequency: 2.402 - 2.480 GHz www.codamusictech.com...
