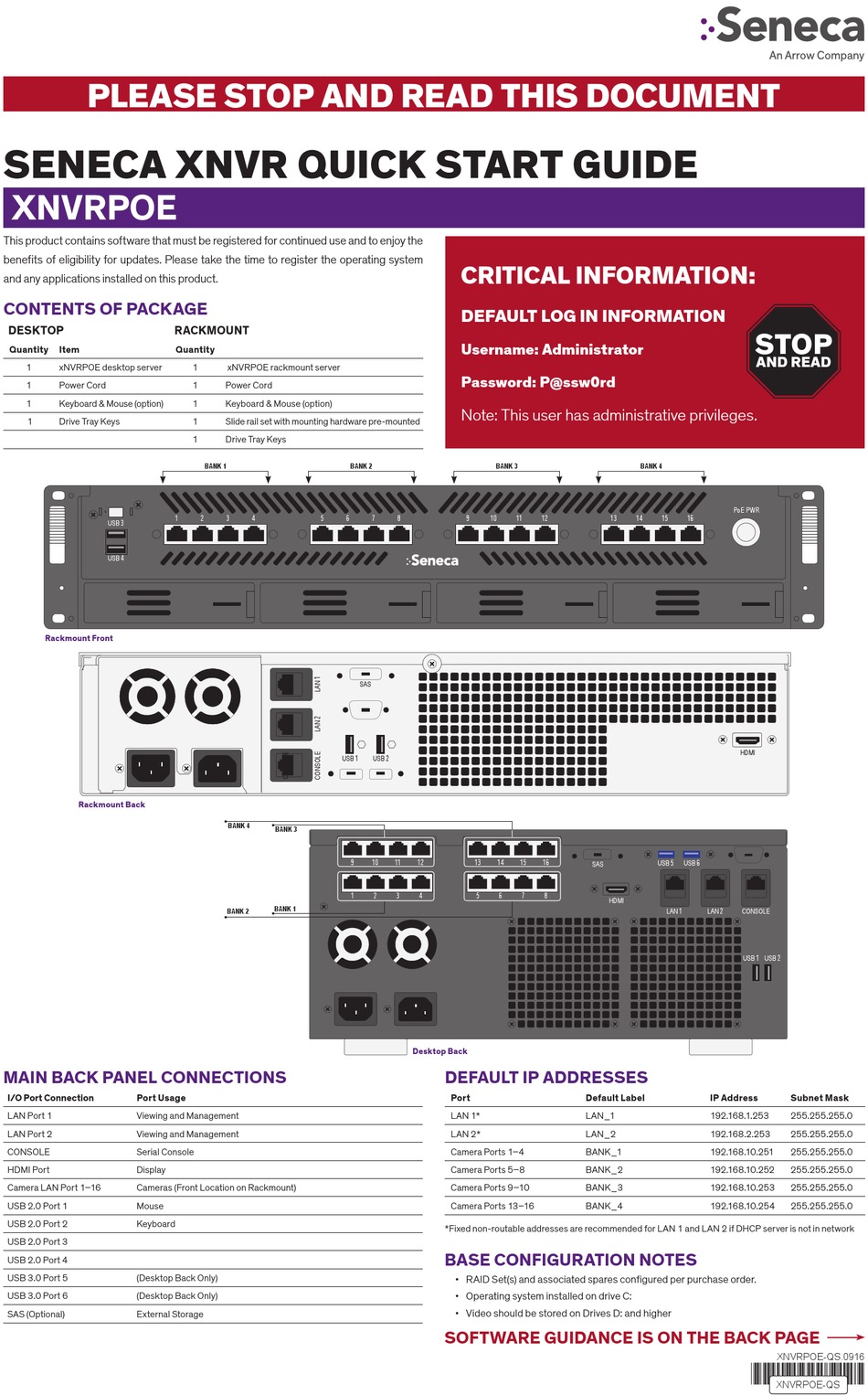

Seneca xNVR POE Quick Start Manual

Please stoP and read this document
seneca XnVr QuicK start Guide
XnVRPoE
This product contains software that must be registered for continued use and to enjoy the
benefits of eligibility for updates. Please take the time to register the operating system
and any applications installed on this product.

conTEnTS oF PAckAGE

DESkToP
Quantity Item
1 xNVRPOE desktop server
1 Power Cord
1 Keyboard & Mouse (option)
1 Drive Tray Keys
USB 3
USB 4
Rackmount Front
Rackmount Back
MAIn BAck PAnEL connEcTIonS
I/o Port connection Port Usage
LAN Port 1 Viewing and Management
LAN Port 2 Viewing and Management
CONSOLE Serial Console
HDMI Port Display
Camera LAN Port 1–16 Cameras (Front Location on Rackmount)
USB 2.0 Port 1 Mouse
USB 2.0 Port 2 Keyboard
USB 2.0 Port 3
USB 2.0 Port 4
USB 3.0 Port 5 (Desktop Back Only)
USB 3.0 Port 6 (Desktop Back Only)
SAS (Optional) External Storage
RAckMoUnT
Quantity
1 xNVRPOE rackmount server
1 Power Cord
1 Keyboard & Mouse (option)
1 Slide rail set with mounting hardware pre-mounted
1 Drive Tray Keys
BANK 1
1 2 3 4 5
BANK 4
BANK 3
BANK 1
BANK 2
critical inFormation:
deFault loG in inFormation
username: administrator
Password: P@ssw0rd
Note: This user has administrative privileges.
BANK 2 BANK 3
6 7 8 9 10
SAS
USB 1 USB 2
9 10 11 12 13 14
1 2 3 4 5 6
Desktop Back
DEFAULT IP ADDRESSES
Port
LAN 1*
LAN 2*
Camera Ports 1–4
Camera Ports 5–8
Camera Ports 9–10
Camera Ports 13–16
*Fixed non-routable addresses are recommended for LAN 1 and LAN 2 if DHCP server is not in network
BASE conFIGURATIon noTES
• RAID Set(s) and associated spares configured per purchase order.
• Operating system installed on drive C:
• Video should be stored on Drives D: and higher
SoFTwARE GUIDAncE IS on ThE BAck PAGE
BANK 4
11 12 13 14 15
15 16
USB 5
SAS
7 8
HDMI
LAN 1
Default Label
LAN_1
LAN_2
BANK_1
BANK_2
BANK_3
BANK_4
stoP
and read
PoE PWR
16
HDMI
USB 6
LAN 2 CONSOLE
USB 1 USB 2
IP Address Subnet Mask
192.168.1.253 255.255.255.0
192.168.2.253 255.255.255.0
192.168.10.251 255.255.255.0
192.168.10.252 255.255.255.0
192.168.10.253 255.255.255.0
192.168.10.254 255.255.255.0
XNVRPOE-QS.0916
*XNVRPOE-QS*
XNVRPOE-QS
