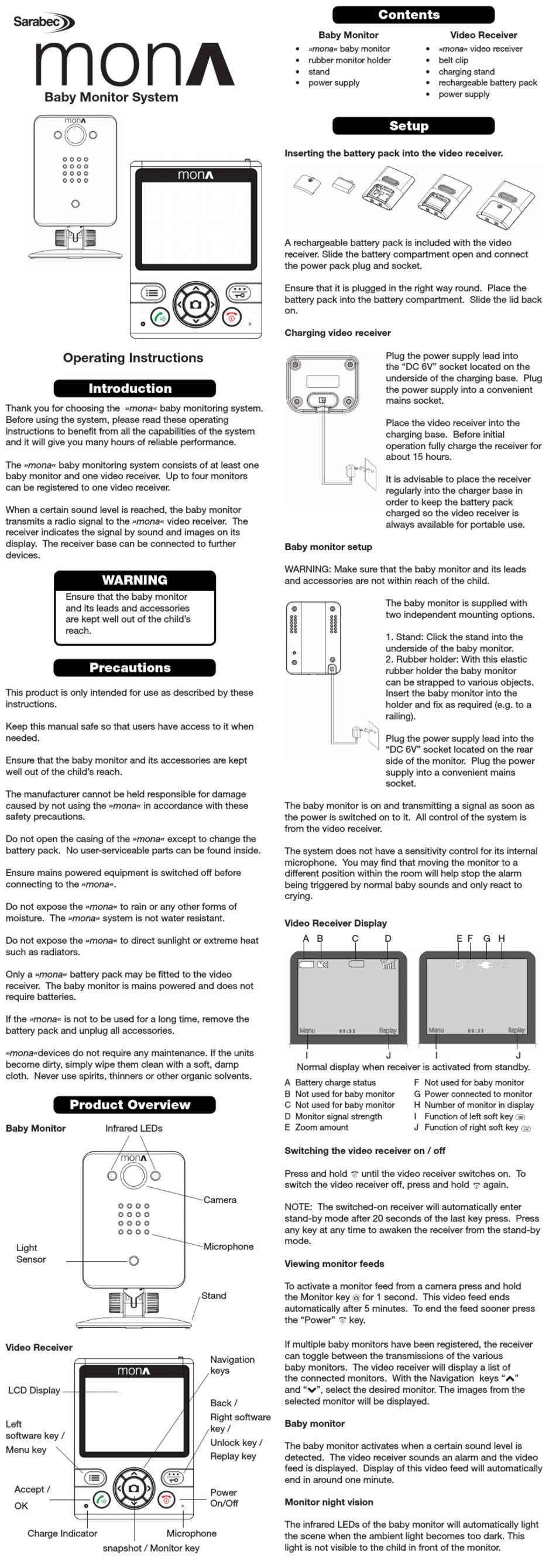

Sarabec mona Operating Instructions

a
Baby Monitor System

Operating Instructions

Introduction
Thank you for choosing the »mona« baby monitoring system.
Before using the system, please read these operating
instructions to benefit from all the capabilities of the system
and it will give you many hours of reliable performance.
The »mona« baby monitoring system consists of at least one
baby monitor and one video receiver. Up to four monitors
can be registered to one video receiver.
When a certain sound level is reached, the baby monitor
transmits a radio signal to the »mona« video receiver. The
receiver indicates the signal by sound and images on its
display. The receiver base can be connected to further
devices.
WARNING
Ensure that the baby monitor
and its leads and accessories
are kept well out of the child's
reach.
Precautions
This product is only intended for use as described by these
instructions.
Keep this manual safe so that users have access to it when
needed.
Ensure that the baby monitor and its accessories are kept
well out of the child's reach.
The manufacturer cannot be held responsible for damage
caused by not using the »mona« in accordance with these
safety precautions.
Do not open the casing of the »mona« except to change the
battery pack. No user-serviceable parts can be found inside.
Ensure mains powered equipment is switched off before
connecting to the »mona«.
Do not expose the »mona« to rain or any other forms of
moisture. The »mona« system is not water resistant.
Do not expose the »mona« to direct sunlight or extreme heat
such as radiators.
Only a »mona« battery pack may be fitted to the video
receiver. The baby monitor is mains powered and does not
require batteries.
If the »mona« is not to be used for a long time, remove the
battery pack and unplug all accessories.
»mona«devices do not require any maintenance. If the units
become dirty, simply wipe them clean with a soft, damp
cloth. Never use spirits, thinners or other organic solvents.

Product Overview

Baby Monitor
Infrared LEDs
Light
Sensor
Video Receiver
LCD Display
Left
software key /
Menu key
Accept /
OK
Charge Indicator
Manual snapshot / Monitor key
Camera
Microphone
Stand
Navigation
keys
Back /
Right software
key /
Unlock key /
Replay key
Power
On/Off
Microphone
Contents
Baby Monitor
• »mona« baby monitor
• rubber monitor holder
• stand
• power supply
Inserting the battery pack into the video receiver.
A rechargeable battery pack is included with the video
receiver. Slide the battery compartment open and connect
the power pack plug and socket.
Ensure that it is plugged in the right way round. Place the
battery pack into the battery compartment. Slide the lid back
on.
Charging video receiver
Plug the power supply lead into
the "DC 6V" socket located on the
underside of the charging base. Plug
the power supply into a convenient
mains socket.
Place the video receiver into the
charging base. Before initial
operation fully charge the receiver for
about 15 hours.
It is advisable to place the receiver
regularly into the charger base in
order to keep the battery pack
charged so the video receiver is
always available for portable use.
Baby monitor setup
WARNING: Make sure that the baby monitor and its leads
and accessories are not within reach of the child.
The baby monitor is supplied with
two independent mounting options.
1. Stand: Click the stand into the
underside of the baby monitor.
2. Rubber holder: With this elastic
rubber holder the baby monitor
can be strapped to various objects.
Insert the baby monitor into the
holder and fix as required (e.g. to a
railing).
Plug the power supply lead into the
"DC 6V" socket located on the rear
side of the monitor. Plug the power
supply into a convenient mains
socket.
The baby monitor is on and transmitting a signal as soon as
the power is switched on to it. All control of the system is
from the video receiver.
The system does not have a sensitivity control for its internal
microphone. You may find that moving the monitor to a
different position within the room will help stop the alarm
being triggered by normal baby sounds and only react to
crying.
Video Receiver Display
A B C D
I J
Normal display when receiver is activated from standby.
A Battery charge status
B Not used for baby monitor
C Not used for baby monitor
D Monitor signal strength
E Zoom amount
Switching the video receiver on / off
Press and hold until the video receiver switches on. To
switch the video receiver off, press and hold
NOTE: The switched-on receiver will automatically enter
stand-by mode after 20 seconds of the last key press. Press
any key at any time to awaken the receiver from the stand-by
mode.
Viewing monitor feeds
To activate a monitor feed from a camera press and hold
the Monitor key for 1 second. This video feed ends
automatically after 5 minutes. To end the feed sooner press
the "Power" key.
If multiple baby monitors have been registered, the receiver
can toggle between the transmissions of the various
baby monitors. The video receiver will display a list of
the connected monitors. With the Navigation keys ""
and "", select the desired monitor. The images from the
selected monitor will be displayed.
Baby monitor
The baby monitor activates when a certain sound level is
detected. The video receiver sounds an alarm and the video
feed is displayed. Display of this video feed will automatically
end in around one minute.
Monitor night vision
The infrared LEDs of the baby monitor will automatically light
the scene when the ambient light becomes too dark. This
light is not visible to the child in front of the monitor.
Video Receiver
• »mona« video receiver
• belt clip
• charging stand
• rechargeable battery pack
• power supply
Setup
E F G H
I
F Not used for baby monitor
G Power connected to monitor
H Number of monitor in display
I Function of left soft key
J Function of right soft key
again.
