Summary of Contents for Digiplex DGP-319

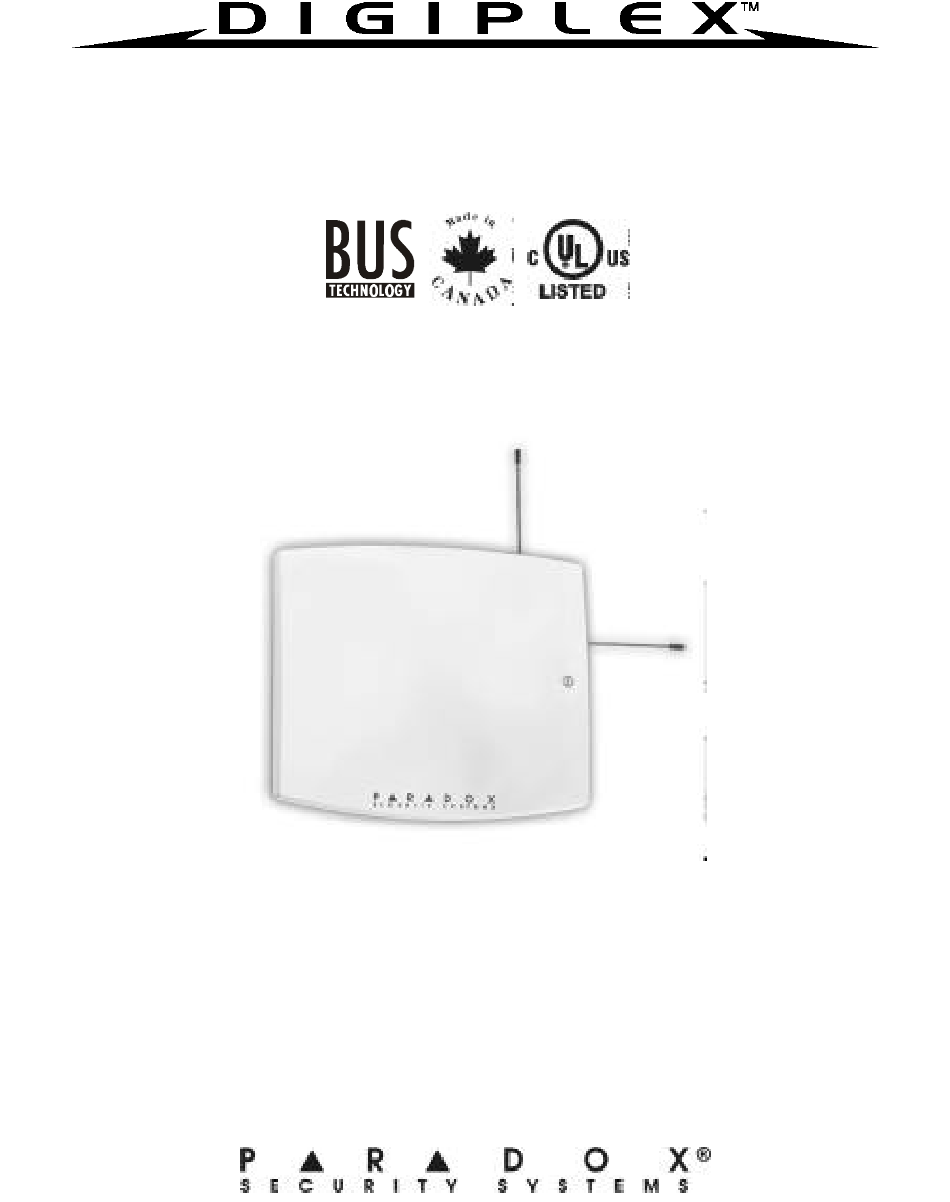

- Page 1 16-Zone and 16-Remote Wireless Bus Module V1.3 DGP-319 Installer’s Guide...
-
Page 3: Table Of Contents
TABLE OF CONTENTS 1.0 INTRODUCTION ................3 1.1 Technical Specifications .................3 1.2 System Features ..................3 2.0 INSTALLATION ................4 2.1 Location ....................4 2.2 Connections and Mounting ..............4 3.0 PROGRAMMING ................6 3.1 Programming Methods ................6 3.2 Low Battery Supervision .................7 3.3 Check-in Supervision ................8 3.4 Tamper Supervision on Receiver Module ..........8 3.5 PGM Deactivation Mode .................9... - Page 4 2 Installer’s Guide...
-
Page 5: Introduction
1 relay (an additional PGM Output is available) PGM Output current: 1.2 S YSTEM EATURES Add 16 wireless detectors or contact switches to the Digiplex System Add 16 remote controls to the Digiplex System Reflow Design No tuned Circuit Tamper Switch... -
Page 6: Installation
We recommend installing it in a centralized location on the main floor. Avoid installing it in the basement. Refer to the Digiplex Control Panel's Reference & Installation Manual for maximum allowable distances between the control panel and the Wireless Bus Module. - Page 7 Figure 2.1: Connections for Receiver Module to Control Panel Digiplex Liberator 5...
-
Page 8: Programming
ROGRAMMING ETHODS All programming can be done through Module Programming Mode in the Digiplex Control Panel from any keypad as shown in Figure 3.1. The sections referred to in Step 5 and the data referred to in Step 6 from Figure 3.1 are explored in the following sections of the manual. -
Page 9: Low Battery Supervision
With the WinLoad Security System Management Software, the control panels, modules and keypads can be programmed remotely through a modem or on-site at 19,200 baud with a 306 Adapter. For details refer to the Digiplex Reference & Installation Manual. 3.2 L... -
Page 10: Check-In Supervision
Wireless Bus Module will transmit a supervision loss signal to the control panel. The control panel can generate a trouble, an alarm and/or can transmit a report code to the monitoring station. For details refer to the Digiplex Reference & Installation Manual. Option [2] enables the Check-in Supervision feature and option [3] specifies the time period required for the devices to send their signal. -
Page 11: Pgm Deactivation Mode
When PGM(s) are in Timed Mode, the values programmed for PGM 1 in section [003] and for PGM 2 in section [004] are defined as seconds or minutes by the PGM Base Time. This value can be any decimal from 001 to 255. This defines the time Digiplex Liberator 9... -
Page 12: Pgm Activation Event
PGM Activation Event as the Receiver Module, those PGM(s) will also be activated when the event occurs. For details on the available activation events, refer to the PGM Programming Table in the Digiplex Programming Guide. -
Page 13: Pgm Deactivation Event
Option [4] ON = PGM 1 activated Option [7] OFF = PGM 2 Override disabled (default) Option [7] ON = PGM 2 Override enabled Option [8] OFF = PGM 2 deactivated (default) Option [8] ON = PGM 2 activated Digiplex Liberator 11... -
Page 14: System Reset
Wait until the Locate LED turns off (takes about 4 seconds) Remove the jumper The module can also be reset using the Module Reset feature in the Digiplex Control Panel (see Digiplex Control Panel's Reference & Installation Manual). 3.12 V... -
Page 15: Detectors And Contact Switches
Digiplex Control Panel. The zone parameters must be defined in the Digiplex Control Panel. For more details concerning zones, refer to the Digiplex Control Panel's Reference & Installation Manual. Complete the Programming Guide while assigning the detectors and contact switches. -
Page 16: Assigning Detectors & Contact Switches To Zones
Bus Module, they must be assigned to zones in the control panel. For instructions on how to assign the devices to the zones and then program the zones, refer to the Digiplex Control Panel's Reference & Installation Manual. Zones assigned to detectors or contact switches cannot be programmed as Fire Zones. - Page 17 The signal strength is represented by the illumination of the numerical LEDs from LED 1 to LED 10. A reading from LED 1 to LED 3 is a very weak signal and the device should be moved. An average reading above LED 4 is acceptable. Digiplex Liberator 15...
-
Page 18: Remote Controls
Remote controls must be assigned to the Wireless Bus Module The remote controls from the Wireless Bus Module must be assigned to User Access Codes in the Digiplex Control Panel. The buttons on the remote controls must be programmed Complete the Programming Guide while assigning the remote controls. The serial numbers will be needed when assigning the remote controls to User Access Codes. -
Page 19: Assigning Remote Controls To User Access Codes
User Access Code designated in section [401]. From Step 5 in Figure 3-1, page 6: 1) Enter a section from [401] to [416] 2) Enter the User Number (001 to 096) to be assigned to the remote control. Digiplex Liberator 17... -
Page 20: Programming Remote Control Buttons
5.3 P ROGRAMMING EMOTE ONTROL UTTONS [501] [516] SECTIONS For each remote control, each button or a combination of the buttons pressed simultaneously can be programmed to send a signal to the control panel to perform certain actions as if users had gone to a keypad and entered their User Access Codes. - Page 21 ] LED FORCE For explanations concerning the function of each of the Button choices, refer to their respective sections in the Digiplex Control Panel's Reference & Installation Manual. For installations using LCD Keypads: From Step 5 in Figure 3.1, page 6: Enter a section from [501] to [516] depending on the remote control you want to program.
- Page 22 Press [ ] once the remote control is programmed. The LCD screen will ENTER automatically switch to the next section for the next remote control. For example: You have programmed section [501] for the remote control assigned in section [301]. Press [enter]. Section [502] will appear on the screen for you to program the remote control that is assigned in [302].
- Page 23 Beep. The keypad will automatically switch to section [502] and so on. You can verify the programming in each section by returning to the sections and pressing the button. The numerical LEDs and the LEDs representing the hexadecimal values will illuminate one at a time as you press the button. Digiplex Liberator 21...
-
Page 24: Replacing The Remote Control's Battery
5.4 R ’ EPLACING THE EMOTE ONTROL ATTERY 22 Installer’s Guide... - Page 25 Warranty The Seller warrants its products to be free from defects in materials and workmanship under normal use for a period of one year (unless otherwise indicated). Except as specifically stated herein, all express or implied warranties whatsoever, statutory or otherwise, including without limitation, any implied warranty of merchantability and fitness for a particular purpose, are expressly excluded.
- Page 26 Printed in Canada 02/2001 I319EI-04...
