This guide describes how to assemble the components of the DLP

development kits. Adhere to safety precautions when handling systems. The key components include the

D4100 Controller Board and DMD Assembly.

D4100 Controller Board

DMD Assembly

D4100 Development Kits Assembly Guide

Items Needed:

DMD Board

DMD Hardware

Flex Cable(s) (XGA - 1 / 1080p - 2)

Section 1: Configurations

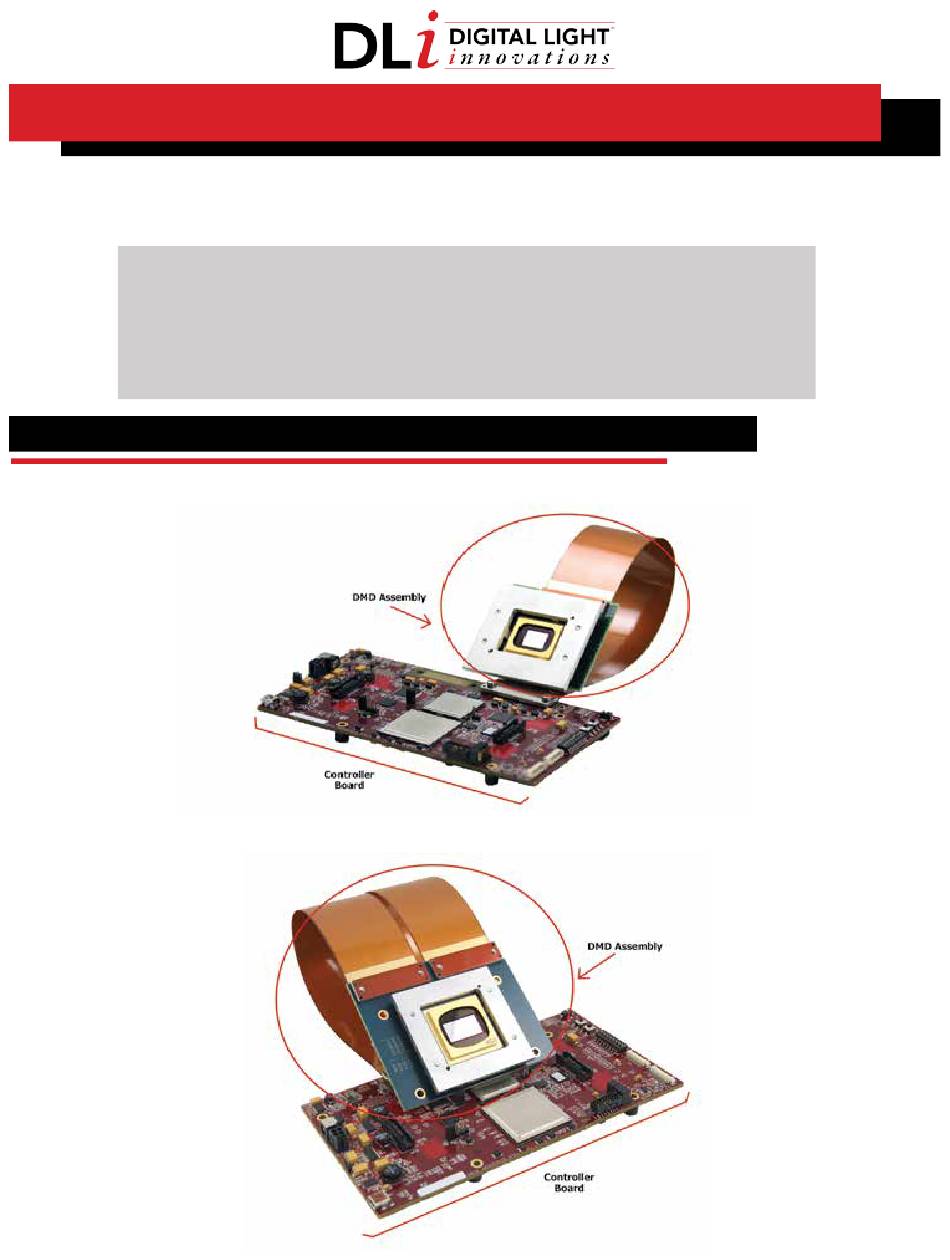

Figure 1-1. DLP Discovery 4100 .7" XGA Development Kit

Figure 1-2. DLP Discovery 4100 .95" 1080p Development Kit

Discovery

Review safety precautions prior to getting started.

Phillips head screwdriver

Anti-static pad

Anti-static strap

4100 series of

Table of Contents

Need help?

Do you have a question about the Discovery D4100 and is the answer not in the manual?

Questions and answers

Summary of Contents for DLP Discovery D4100

Page 1 Discovery D4100 Development Kits Assembly Guide ® This guide describes how to assemble the components of the DLP Discovery 4100 series of ® development kits. Adhere to safety precautions when handling systems. The key components include the D4100 Controller Board and DMD Assembly.
Page 2 Section 2: Components 1. DMD Assembly Components 1. DMD 2. DMD Mounting Hardware 3. DMD Board 4. Flex Cable(s) (XGA - 1 / 1080p - 2) Figure 2-1. DMD Assembly Components 2. D4100 Controller Board Components: 1. DLPA200 Driver(s) 6. DLPC410 Digital Controller (XGA - 1 / 1080p - 2) 2.
Page 3 Section 3: Hardware Setup 1. Connecting Flex Cable(s) to DMD Board Locate end of the ﬂex cable labeled DMD END Position DMD Assembly face down Unscrew ﬂex cable screws from backer plate Position backer plate under DMD board Align ﬂex cable screws and pins to corresponding holes on DMD board Screw ﬂex cable(s) in place making sure not to overtighten Figure 3-1.
Page 4 2. Connecting Flex Cable(s) to 4100 Controller Board Locate end of the ﬂex cable NOT labeled DMD END Position controller board to face up Unscrew ﬂex cable screws from backer plate Position backer plate under controller board Align screws and pins on the ﬂex cable to corresponding holes on controller board Screw ﬂex cable(s) in place making sure not to overtighten Figure 3-2.
Page 5 PRECAUTIONS Before handling, assembling or operating your development kit, please read the following precautions thoroughly. DLP systems contain electrostatic discharge (ESD) sensitive components. ® Handle with care to prevent permanent damage. The system electronics are exposed and sensitive to electrostatic discharge, rough handling and contact with external elements. Utilize ESD procedures and equipment for proper grounding when handling kits to avoid electrostatic discharge damage.
