Staray C-130 User Manual

Laser Show System

1. General instructions

Thank you for purchasing this product. Please read user guide for safety and operations information before using the
product for better use and safety operation. Keep this manual for future reference. This product can create perfect laser
programs and effects since it has passed a series of strictly tests before delivery.
Please handle with care after receiving the unit and check the attachments listed on the page after opening the carton. In
the event of carton damage or attachment missing in transit, please contact your dealer or our after sales service
department.
Attachments:
1. Laser Light 1PCS 2. Power Cable 1PCS

2. Notice:

1. Do not exposure the human eye direct to laser beam.
2. Do not turn on and off the unit frequently.
3. Before using this unit makes sure the power supply is ground.
4. This unit is intended for indoor use only and should be prevented form water, moisture and shake. The working
temperature of this unit is 18～30 , do not use this continuously over 4 hours, otherwise it shortens the lifetime of the
unit.
5. Use cleaning tissue to remove the dust absorbed on the external lenses periodically to optimize light output.
6. Do not remove or break the warranty label, otherwise it void the warranty.
7. Always replace with the exact same type fuse, replacement with anything other than the specified fuse can cause fire
or electric shock and damage your unit, and will void your manufactures warranty.
This product installation operation and maintenance should be by professional.
Warning！ Do not exposure the human eye direct to laser beam.

3. Installation

1. Before installation, please make sure power voltage is proper as the one marked on the unit.
2. This product should be installed by professional to make sure it is fixed safely and have adjusted suitable shining
angel.
3. When installing this unit, please make sure there is nothing flammable or explosive 0.5 meter near the unit. Make
3. User Guide 1PCS
- 1 -
Laser Show System
sure there is 15 mm distance between the unit and the wall. Please make sure to use safety rope which can support
tenfold weight of the unit to assist fitting.

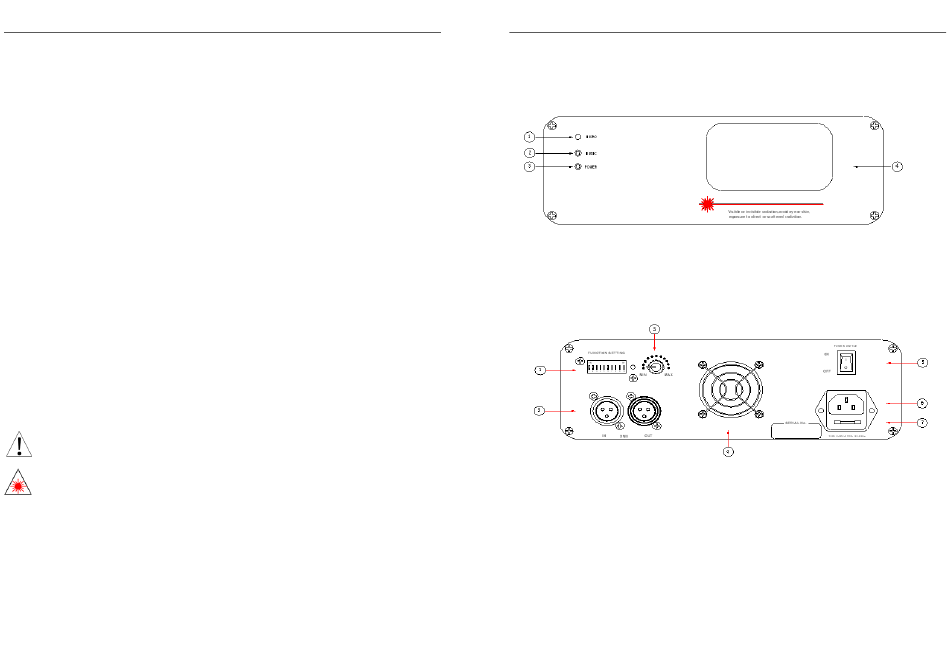

4. Front Panel

1. Sound Active Microphone
3. Power Indicator

5. Rear Panel

1 Address code selection
3 Sound Sensitivity Adjustment Knob 4 Fan
5 Power supply switch
7 Fuse

6. Function Setting

Dipswitches #10 are use to set 4 working modes as Sound active, Automatic, Slave/Master and DMX mode.DMX mode
have DMX control channel address for setting, Namely DMX Address, see the function setting chart. When dipswitch
2. Sound Active Indicator
4. Laser Aperture
2 DMX Input/ Output
6 Power input connector
- 2 -
