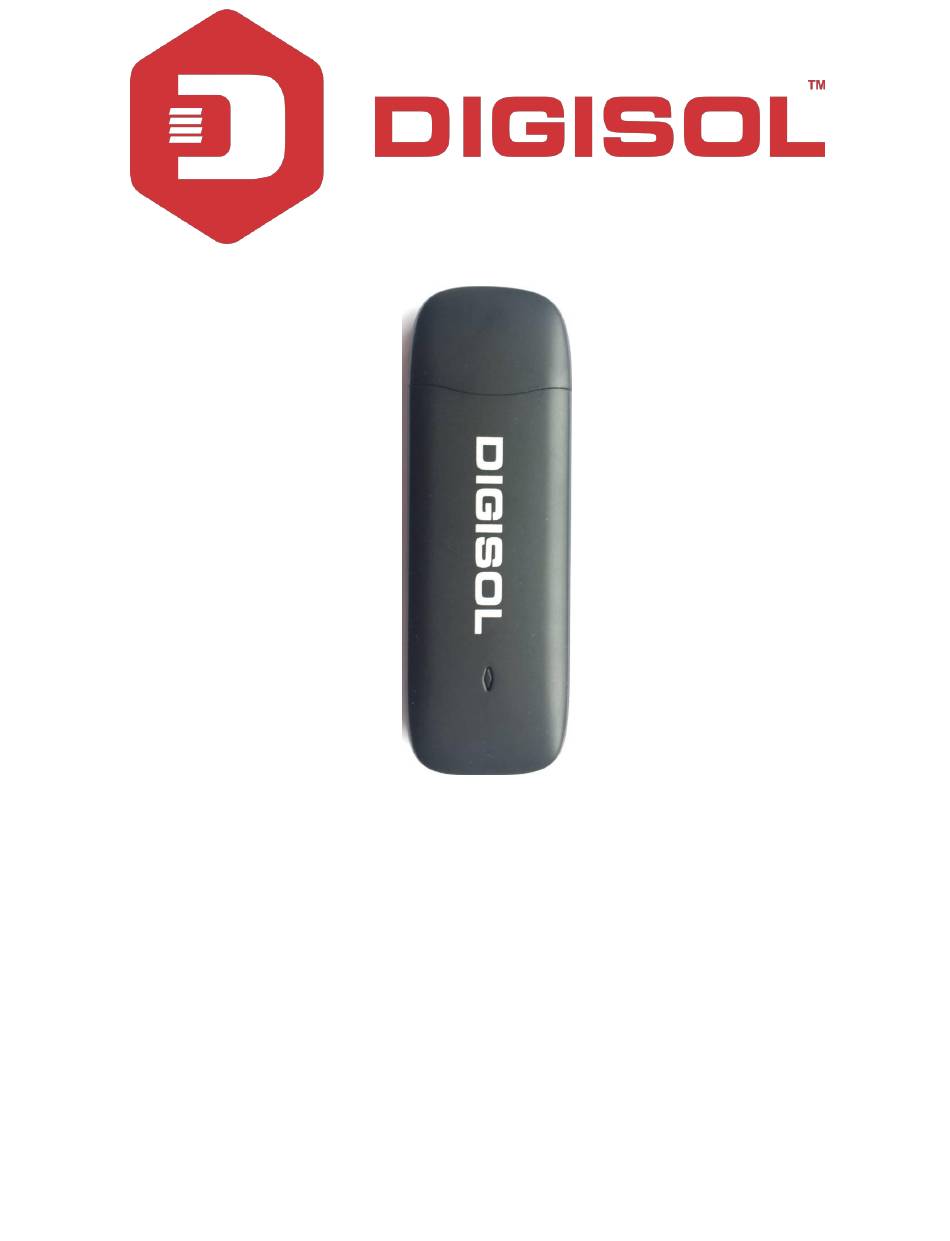

  • Page 1 DG-BA4305 4G LTE BROADBAND MODEM ADAPTER User Manual V1.0 2017-04-10 As our products undergo continuous development the specifications are subject to change without prior notice...
  • Page 2 DG-BA4305 User Manual COPYRIGHT Copyright 2017 by Digisol Systems Ltd. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of this company.

  • Page 3: Table Of Contents

    DG-BA4305 User Manual Index PRODUCT OVERVIEW ..........................4 ............................ 4 1-1 S YSTEM EQUIREMENTS ............................4 1-2 P ACKAGE ONTENTS ..................5 1-3 G 4G USB ET FAMILIAR WITH YOUR NEW ADAPTER INSTALLATION ............................6 ..........................6 2-1 H ARDWARE NSTALLATION OS ....................

  • Page 4: Product Overview

    DG-BA4305 User Manual 1. Product Overview Thank you for choosing DIGISOL DG-BA4305 4G Broadband Modem Adapter! With this 4G broadband adapter you can get connected to Internet using the high speed 4G network. When this adapter is connected to a system then the utility/driver installation wizard is initiated automatically without the need of a CD-ROM for installation.

  • Page 5: Get Familiar With Your New 4G Usb Adapter

    DG-BA4305 User Manual 1-3 Get familiar with your new 4G USB adapter Below shown is the front and rear view of the 4G USB adapter: The above figure shows the appearance of the 4G USB adapter. It is provided only for reference...

  • Page 6: Installation

    DG-BA4305 User Manual 2. Installation The following section explains the hardware and software installation procedure. 2-1 Hardware Installation Following are the steps for inserting the SIM and a Micro SD card in the 4G USB adapter. 1. Slide the back cover to remove it from the 4G USB adapter.
  • Page 7 DG-BA4305 User Manual 3. Insert the Micro SD card into its corresponding slot, as shown in the following figure. Ensure that the Micro SD card is inserted according to the direction as labeled on the Micro SD card slot. NOTE: The Micro SD card is an optional accessory. It is not included in the package.

  • Page 8: Software Installation On Windows Os

    DG-BA4305 User Manual 2-2 Software Installation on Windows OS The software installation procedure depends on the operating system (OS) installed on your PC. This section takes Windows OS as an example. 1. Plug the 4G USB adapter into the USB port of your PC.
  • Page 9 DG-BA4305 User Manual 3. The OS automatically detects and recognizes the new hardware and starts the installation wizard. Click „Next‟ button to continue with the installation. 4. If you wish to create the icon on the desktop then select the check box else un-select it.
  • Page 10 DG-BA4305 User Manual 5. Click the „Install‟ button to install the application. 6. Below screen will appear. You can see that the utility is getting installed.
  • Page 11 DG-BA4305 User Manual 7. Click the „Finish‟ button to finish the software installation and tick the “Launch application” if you wish to launch the utility once you exit the Setup. The application runs automatically after finishing the installation. Congratulations! Your 4G USB adapter installation is now finished.

  • Page 12: Uninstalling The Application On Windows Os

    DG-BA4305 User Manual 2-2-1 Uninstalling the Application on Windows OS There are two ways to uninstall the software: 1) Click App > 4G Digiconnect>Uninstall, follow the on-screen instructions to finish the un-installation. Choose 4G Digiconnect and click uninstall to remove the application from your PC.

  • Page 13: G - Connect Utility

    DG-BA4305 User Manual 3. 4G – Connect Utility 3-1 Logging into the utility Double-click the shortcut icon of the 4G Digiconnect utility on the desktop to log in to the utility. Note:  When you are required to enter the Personal Identification Number (PIN) code, enter the correct PIN and click „OK‟.
  • Page 14 DG-BA4305 User Manual : Connect /disconnect to the internet : Access to the SMS service interface : Access to the Phonebook interface ：Access to USSD interface : Set items Status Description New Mes s a ge New mes s a ge(s ) a rri ved.
  • Page 15 DG-BA4305 User Manual LED indicator Description No SIM detected Green Steady Registered 4G/HSPA/UMTS/EDGE/GPRS Green Data transmitting Blinking Blue Registered 3G/HSPA/UMTS/EDGE/GPRS...

  • Page 16: Internet Service

    DG-BA4305 User Manual 4. INTERNET SERVICE I. Connecting with the default connection profile.  Click to set up the connection. II. Connect to the Internet with the user-defined profile.  Click , select Connection Profile.  Click New, fill in all the parameters, then click OK.
  • Page 17 DG-BA4305 User Manual  Input the recipient number by one of the following options:  Enter the number directly.  Click Send to, choose the recipient number from the phonebook and add to the send list, then click OK.  Enter the message content.
  • Page 18 DG-BA4305 User Manual 4. Draft  The message sent unsuccessfully will be saved in the Draft.  Click the selected message.  Confirm the recipient and the content, and click Send or Save to Draft. 5. Recycle All deleted information will be saved in the Recycle.
  • Page 19 DG-BA4305 User Manual VI. Phonebook Click to enter Contacts interface. 1. New  Click  Enter the Name and Mobile, and save it in the (U) SIM card or PC. 2. Search a contact  Click  Enter the key characters you want to find in the ...
  • Page 20 DG-BA4305 User Manual  Select the *.vcf or *.csv file and click Open.  The import file will be saved in the current interface. 5. Export  Right-click the selected contact.  Click Contacts Export.  You can save the contact file as *.csv file or *.vcf file.

  • Page 21: Pin Management

    DG-BA4305 User Manual VIII. SETTINGS Click to list the available functions. 4-1 PIN Management  Enable PIN  Click Enable PIN.  Enter the correct PIN code and click OK. NOTE: The PIN code should be a numeric string of 4-8 digits.

  • Page 22: Connection Profile

    DG-BA4305 User Manual  Verify PIN  Click Verify PIN to verify the new PIN. (This will confirm the new password).  Unlock PIN  Click Unlock PIN to retrieve the PUK/PIN code. If we enter three times incorrect PIN, then your card is blocked so PUK (Personal Unlock Key) is used to retrieve it.
  • Page 23 DG-BA4305 User Manual Username Enter the username if required. Password Enter the password if required. Authentication type Enable if required or else keep none. Click this button to create a new profile. Delete Click this button if you want to delete the profile.

  • Page 24: Options

    DG-BA4305 User Manual 4-3 Options  General You may choose the alert tone when connected/disconnected to the Internet.
  • Page 25 DG-BA4305 User Manual  Text Message Setting  You may activate the message alert tone, and also can set up your favorite tone via selecting a *.wav file in the PC.  The number showed in the SMS center is read from the (U) SIM card automatically;...
  • Page 26 DG-BA4305 User Manual  Profile Management Refer to section 4-2 for profile management description.  Network  Network Type  You can choose Auto or Only LTE or Only UMTS/HSPA or Only GPRS/EDGE. The device will register to the network according to the selected mode.
  • Page 27 DG-BA4305 User Manual  Registration Mode  Auto search and register is set as default value.  Select Manual search and register before dialing. Available networks will be listed when finished.  Select an available network and click Register, and then the device will...
  • Page 28 DG-BA4305 User Manual  Statistics  Daily report You can view every day‟s network statistics information.  Weekly report You can view every week‟s network statistics information.  Monthly report You can view every month‟s network statistics information.  Yearly report...
  • Page 29 DG-BA4305 User Manual  Diagnostics connection type You can view device information, operator information, network status and so on information.  Connection Type...

  • Page 30: Contacts Import

    DG-BA4305 User Manual 4-4 Contacts Import  Right-click the selected contact.  Click Contacts Import.  Select the *.vcf or *.csv file and click Open.  The import file will be saved in the current interface. 4-5 Contacts Export  Right-click the selected contact.

  • Page 31: Show Menu Bar

    3) Ensure that the correct profile is used to connect to internet. Also, verify the 4G signal strength is appropriate. 4) If still the issue persists, then please contact DIGISOL TAC. SIM Card inserted in 4G 1) Verify if SIM card is inserted or not.
