Deif uni-line Series Installation And Start-Up Instructions page 2

1. Description
This stator earth fault relay type RMC-142D forms part of a complete DEIF series (the
uni-line) of relays for protection and control of generators.
2. Label

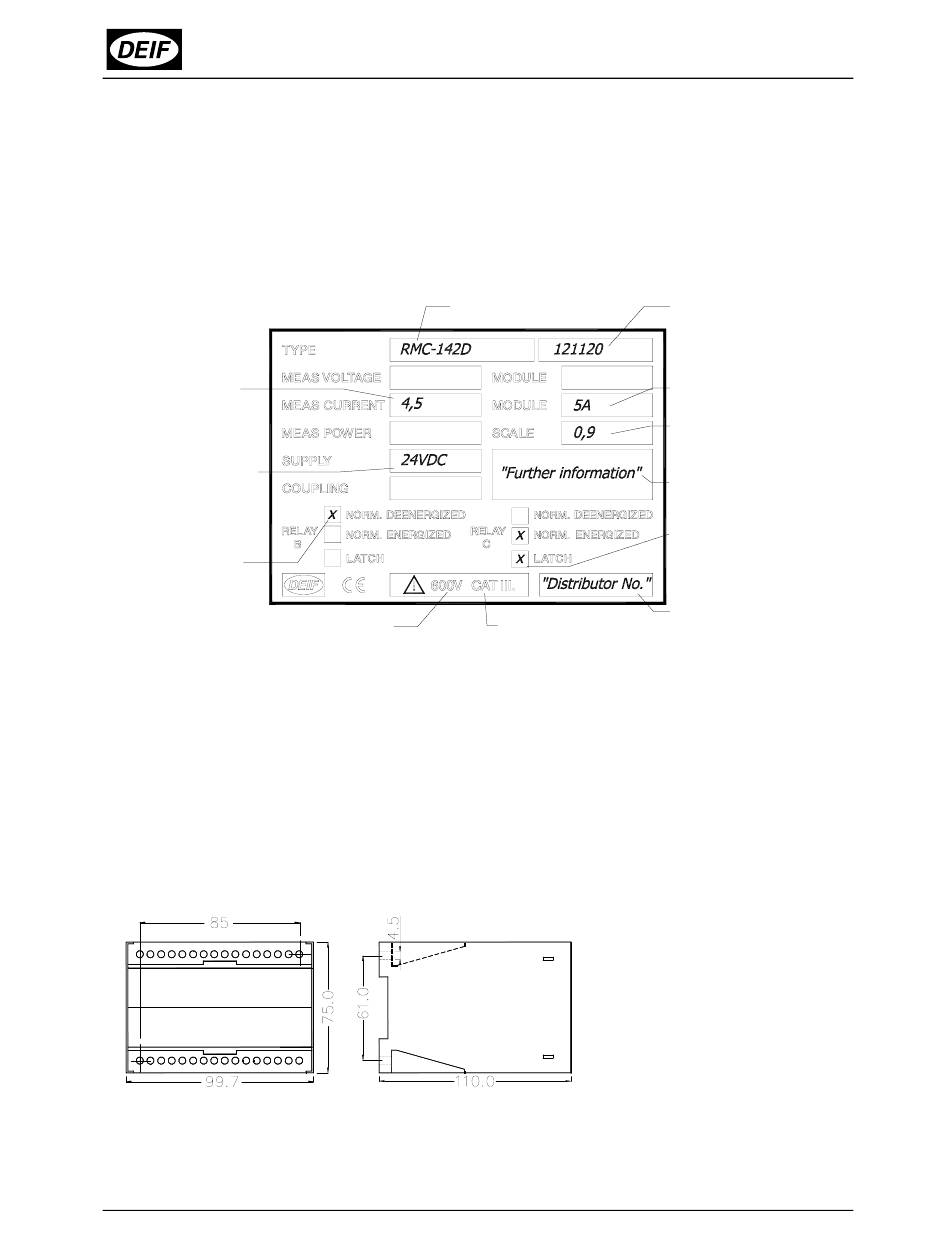

The relay is provided with a label with the following data:
Measuring current
corr. to 100% on scale
Supply voltage
Relay coupling
Shown is relay B as a
normally de-energised
relay, relay C as a
normally energised relay
Highest voltage
with latch circuit
in relation to earth.
Note: The relay is provided with a 200 ms power-up relay, ensuring correct
function of the relay on connection of the auxiliary voltage. Normally
energised contacts ("NE") are not activated (contact does not open/close)
until 200 ms after connection of the auxiliary voltage. Likewise, the relay is
provided with a 200 ms power-down circuit, ensuring supervision and
maintenance of any set point exceeding for 200 ms after disconnection of
the auxiliary voltage.
3. Mounting instructions
Tel. (+45) 9614 9614 • Fax:(+45) 9614 9615 E-mail: deif@deif.com
Page 2 of 2
Type designation
Installation category
The RMC-142D is designed
for panel mounting, being
mounted on a 35 mm DIN
rail, or by means of two 4-
mm screws.
Weight: Approx. 0.600 kg
DEIF's order ack. No.
To be stated when contacting DEIF
Mounted current module
1
Scaling
(for adaption of the unit
to the measuring current)
(E.g. time delay(s),
special calibration)
Contact remains locked
in alarm position even though
the input returns to normal.
Latch circuit is reset by
disconnecting the supply voltage.
Distributor's ID No.
Filled in by distributor
when customizing the unit.
