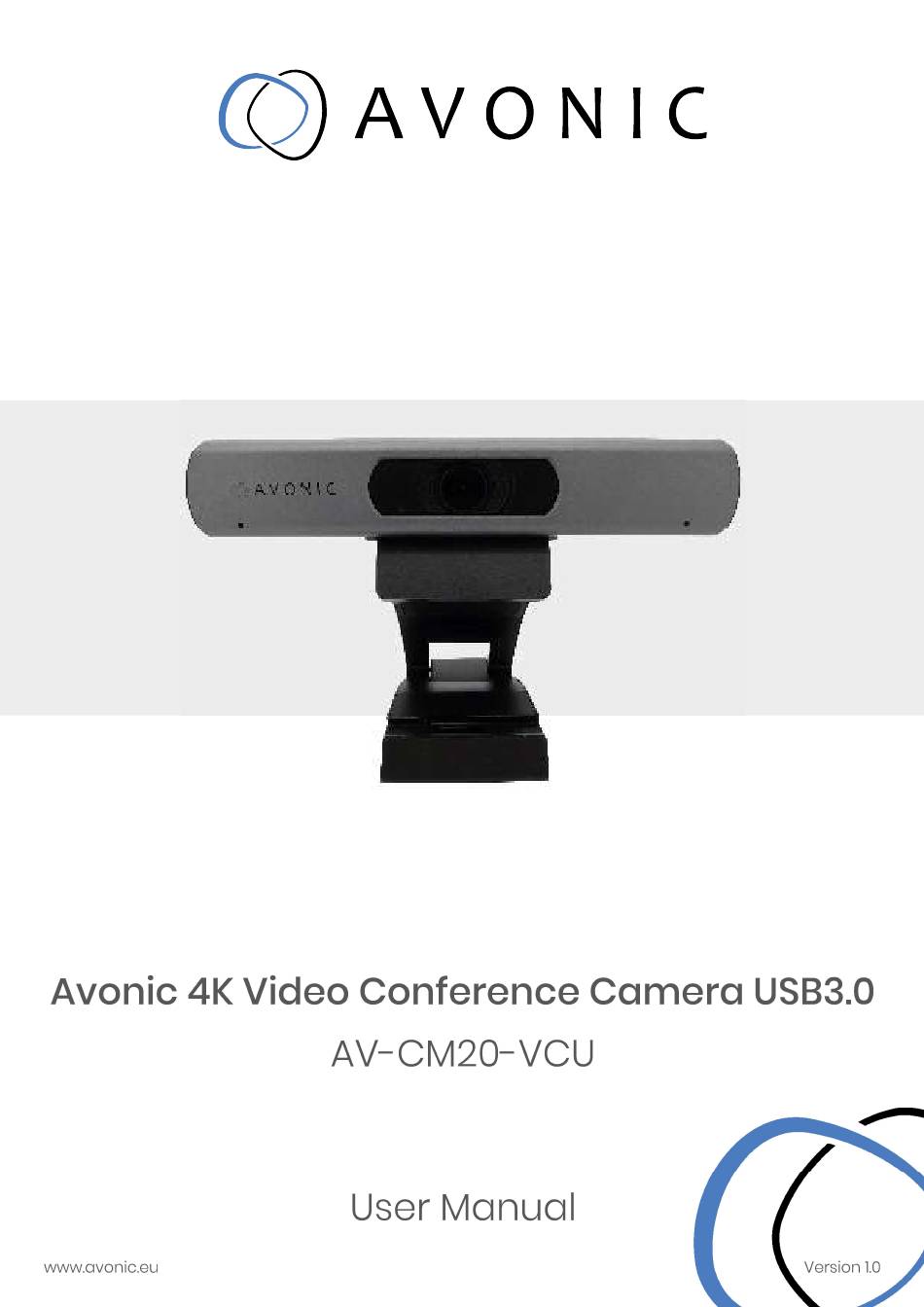

- Page 1 Avonic 4K Video Conference Camera USB3.0 AV-CM20-VCU User Manual www.avonic.eu Version 1.0...
-
Page 2: Table Of Contents
Join Avonic................ -
Page 3: Introduction
Introduction Congratulations Thank you for your Avonic purchase. Before beginning to operate this device, please read the manual in order to make sure the best performance is obtained. Save this manual for future reference. Contact For any questions or suggestions, contact your reseller or the local distributor of Avonic. -
Page 4: Package Contents And Accessories
Package contents and Accessories Contents Quantity Description Avonic SKU 1 pc Device AV-CM20-VCU 1 pc Power Supply AV-CM20-PSU 1 pc Remote Control AV-CM20-RC 1 pc USB 3.0 cable AV-USB30-AB Handling precautions Be cautious to take the camera by its base and do not touch the lens. -
Page 5: Product Overview
Product Overview The Avonic CM20-VCU is a high-quality 4K USB 3.0 video conferencing camera with integrated dual microphones. The camera is equipped with a 4K sensor and has digital PTZ capabilities. Features • Lens: Auto focus lens with 120° Horizontal FOV. -
Page 6: Installation
Installation Connections Audio Line in (not in use) HDMI output USB 3.0 connector Camera placement The Avonic CM20-VCU is designed to be placed on top of a computer monitor. www.avonic.eu... -
Page 7: Operation
Operation Remote controller 1. Standby Key 10. Selection Key 2. Number Key 11. #Key 3. *Key 12. IR Remote Control Key 12. IR Channel Program Key 13. Reset Key 4. Preset Key 5. Home key 14. PTZ control key 15. Menu Key 6. - Page 8 This Menu button opens of closes the the OSD menu. If the menu is not in English, please press [*]+[#]+[1] to change the Menu language to English. Backlight Key This button has no function with this camera. PTZ Reset Key This button has no function with this camera. www.avonic.eu...
-
Page 9: Other Key Combinations
Quick Codes list [*]+[#]+[1] : OSD menu default English [*]+[#]+[4] : 1080P@30fps default hdmi resolution [*]+[#]+[6]: Factory default [*]+[#]+[7]: 1080P@60fps default resolution... -
Page 10: Osd Menu
OSD Menu The OSD menu can be accessed by the Remote Control or an Avonic PTZ controller. In the following pages, the navigating is described for using the IR Remote Control. www.avonic.eu... - Page 11 1. MENU Press [MENU] button to display the main menu on the screen. Use the arrow buttons to move the cursor to the item to be set. Press the [HOME] button to enter the corresponding sub-menu. MENU Exposure Color Image Focus Noduction Setting...
- Page 12 0 ~ 14 Flip-H ON / OFF Flip-V ON / OFF Gamma 0.45 / 0.50 / 0.56 / 0.63 / Default Style Clarity / Bright / PC / Clarity (LED) / Normal -10 ~ 10 Select Item Change Value [Menu] Back www.avonic.eu...
- Page 13 5. FOCUS FOCUS AF Sense Low / High / Medium Focus Area Middle / Upper half / Lower half / All Select Item Change Value [Menu] Back 6. NOISE REDUCTION NOISE REDUCTION 2D NR Close / Auto / 1 ~ 5 3D NR Close / 1 ~ 8 Select Item...
-
Page 14: Maintenance
Maintenance Camera Maintenance • If the camera will not be used for a long time, please turn off the power switch, disconnect AC power cord of AC adaptor to the outlet. • Use soft cloth or tissue to clean the camera cover. •... -
Page 15: Image
- Check VISCA / PELCO address settings on both camera and controller WebGUI (if applicable) • Cannot enter WebGUI - Check network cable - Check if PC is in the same subnet as camera • Firmware update failed - Check fi rmware fi le integrity, download it again. www.avonic.eu www.avonic.eu... -
Page 16: Appendix A Dimensions
Appendix A Dimensions www.avonic.eu www.avonic.eu...
