Signaline 300 Installation Instructions

MODEL 300
Programmable Timer

Multiple timing & voltage ranges

Five function modes

Easy to program

5-Year Unconditional Warranty
DESCRIPTION

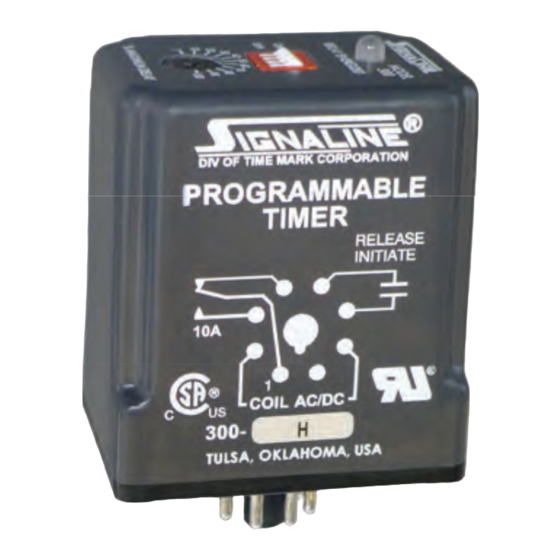

The Model 300 Programmable Timer is designed to replace
over 100 standard timers. One Model 300 can be set for one
of five functions, covers four timing ranges, and has a power
supply for any AC/DC voltage from 10 to 28 Volts or 40 to 260
Volts. An "SG" version of this model is available using silver
with gold flash contacts.
The digital design of the Model 300 provides high accuracy,
repeatability and response time. The output of the Model 300
is a heavy-duty SPDT electro-mechanical output relay.
Programming options are chosen by simply setting the four
DIP switches on top of the relay, and then adjusting a
potentiometer for percent of delay.
illuminates when the relay is energized.
The Model 300 can be set to Delay-on-Release by adding an
external jumper between pins 6 and 8 (see Installation
Instructions on reverse side).
The Model 300 is UL Recognized and CSA Certified.
UL SPECIFICATIONS*
Models
Input
Voltage (VAC)
10-28V AC/DC OR 40-260V AC/DC
Power
Output
* Pilot Duty:
120V: Make 15A, Break 1.5A
240V: Make 7.5A, Break 0.75A
Telephone: Main - (918) 438-1220
Sales - (800) 862-2875
Fax: (918) 437-7584
E-mail: sales@time-mark.com
Internet: http://www.time-mark.com
A LED indicator
300
3 Watts Max
240V AC, 10A, Resistive
120V AC, 4A, General Use
240V AC, 2A, General Use
C300, Pilot Duty

SPECIFICATIONS

MODEL
Voltage
Timing Range
Accuracy
Repeatability
Response time
Contacts
Contact rating
Transient protection
Expected relay life Mechanical:
Electrical:
Operating temperature
Humidity tolerance
Case material
Mounting
Weight
Additional Options
/SG = Silver with Gold Flash Contacts
Ordering Examples (Model-Voltage [/Options]):
300-H = Model 300 with a 40-260V AC/DC voltage range
300-L /SG = Model 300 with a 10-28V AC/DC voltage range and
optional silver with gold flash contacts.
Contact Time Mark to order a custom programmed unit

PROGRAMMING

TIMING RANGE
0.15 to 15 seconds
0.6 to 60 seconds
5 to 480 seconds
0.6 to 64 minutes
FUNCTIONS
Interval-on-Operate
Delay-on-Operate
Delay-on-Release*
Recycle Start-ON
Recycle Start-OFF
* For Delay on Release—See Installation Instructions on reverse side.
300
L = 10-28V AC/DC
H = 40-260V AC/DC
0.15 seconds to 64 minutes
±5%
0.1%
100ms
SPDT
10A at 240VAC resistive
775V, 80 Joules
10 million operations
100,000 operations at rated load
-20º to +140º F
0-97% without condensation
NORYL Plastic
8-pin socket (not included)**
4.5 oz.
/C = Custom (Voltage and/or Timing)
** order 8-pin socket number 51 x 120
SWITCH 1 SWITCH 2
OFF
ON
ON
OFF
SWITCH 3 SWITCH 4
ON
ON
ON
OFF
OFF
1 1 4 4 0 E a s t P i n e S t r e e t
T u l s a , O k l a h o m a 7 4 1 1 6
05/2014
© 2014
TIME MARK CORPORATION
TIME MARK is a division of
ON
OFF
ON
OFF
OFF
ON
OFF
OFF
ON
