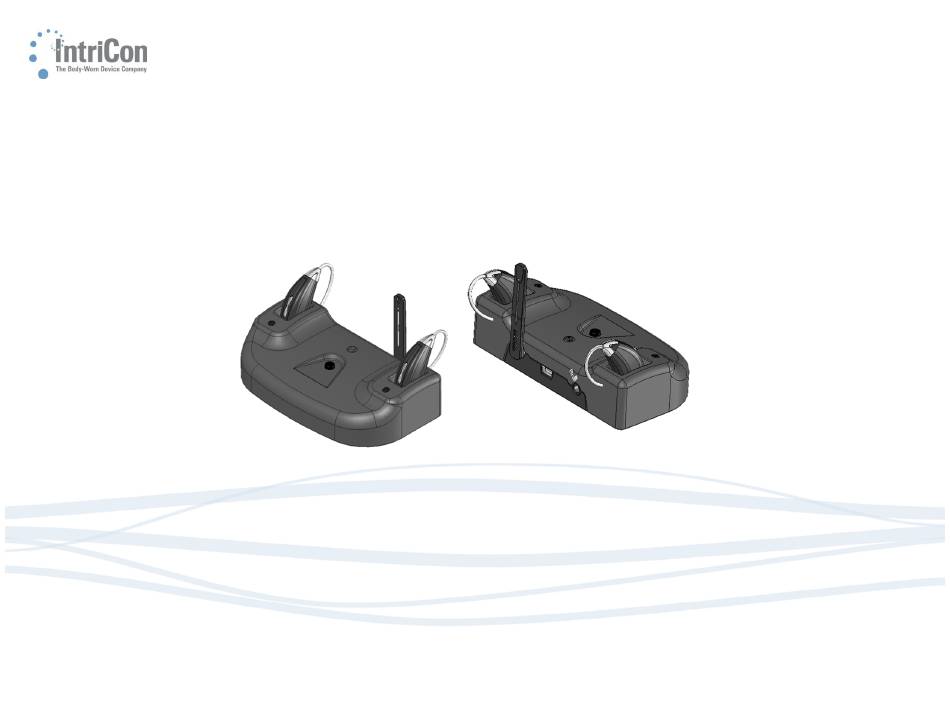

- Page 1 LUMEN 1000 PSAP & CHARGING TV STREAMER Quick Start Guide 22602 Rev B...
-
Page 2: Table Of Contents
Charging TV Streamer Parts ..…………………………….4 Charging TV Streamer Setup .…………………….…...4-7 Lumen 1000: Assembly and Charging …………….….8 Lumen 1000: Positioning on the Ear ………………..9 Charging TV Streamer: Device Commands .…..10 Lumen 1000: Rocker Switch Functions …………..11 Additional Information .…………………………………...12 22602 Rev B... -
Page 3: Lumen 1000 Psap Parts
Lumen 1000 PSAP Parts (Personal Sound Amplification Product) Lumen 1000 PSAP Devices Parts Included 2 Lumen 1000 PSAP Devices Base 6 Sound Tubes (3 Left, 3 Right) 6 Dome Tips (2 Small, 2 Medium, 2 Large) Large Medium Small 22602 Rev B... -
Page 4: Charging Tv Streamer Parts
Charging TV Streamer Parts Charging TV Streamer Power Plug Antenna Parts Included a. 1 Charging TV Streamer b. 1 Power Plug Charging LED Charging LED c. 1 Mini USB to USB Indicator (RED) Indicator (Red) Power LED Indicator (M) Mode Button Cable (Blue) a. -
Page 5: Charging Tv Streamer Setup
Charging TV Streamer Tip: When outside of the Charging TV Streamer range (16 feet), the Lumen 1000 automatically 1. Raise antenna to vertical position and switches to the PSAP mode. insert Mini USB plug into the back of the Charging TV Streamer. - Page 6 Charging TV Streamer: Set Up – Connect to TV Headphone Jack Audio Output Jacks 1. Locate headphone jack on the 1. Locate audio output jacks on the front, side or back of front, side or back of your TV. your TV. They will look similar to the diagram shown. (See It will be identified by a your specific products user manual for more information) headphone icon label, similar...
- Page 7 RCA cable. Tip: The TV audio will be muted if the headphone jack is used. Use the RCA cable connection to hear audio from the TV speakers and on your Lumen 1000 devices. 22602 Rev B...
-
Page 8: Lumen 1000: Assembly And Charging
Lumen 1000: Assembly and Charging Assembling the Lumen 1000 Charging the Lumen 1000 1. Insert body of the Lumen 1000 into the charging 1. Choose left and right Sound slot of the Charging TV Streamer. The Lumen 1000 Tube must be turned off prior to charging. -
Page 9: Lumen 1000: Positioning On The Ear
Lumen 1000: Positioning on the Ear Instructions for wearing 1. Place listening device over ear. 2. Insert Dome Tip into ear canal. 3. Tuck Retention Loop along bottom of ear cavity. 22602 Rev B... -
Page 10: Charging Tv Streamer: Device Commands
Using your Charging TV Streamer charging TV Streamer is both ON to hear streaming audio 1. Wear and turn ON Lumen 1000. 2. Refer to Device Commands table below for the operating modes Charging TV Streamer Device Commands Function Button... -
Page 11: Lumen 1000: Rocker Switch Functions
Lumen 1000: Rocker Switch Functions Command User Action Audible Prompt Says When in OFF mode, Press rocker down until “Battery” followed by “Low”, “One”, “Two”, Turn ON an audible response is heard “Three”, or “Four” dependent on battery level Press rocker down until an audible response Turn OFF “Off”... -
Page 12: Additional Information
Turn OFF the Lumen 1000 before charging. This will ensure the Lumen 1000 receives a full charge. If the Lumen 1000 battery is completely discharged, place the device in the charger. After a few minutes, remove the device from the charger, press and hold the rocker down until the “OFF”... - Page 13 FCC LABEL REQUIREMENTS This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
