Installation Instructions

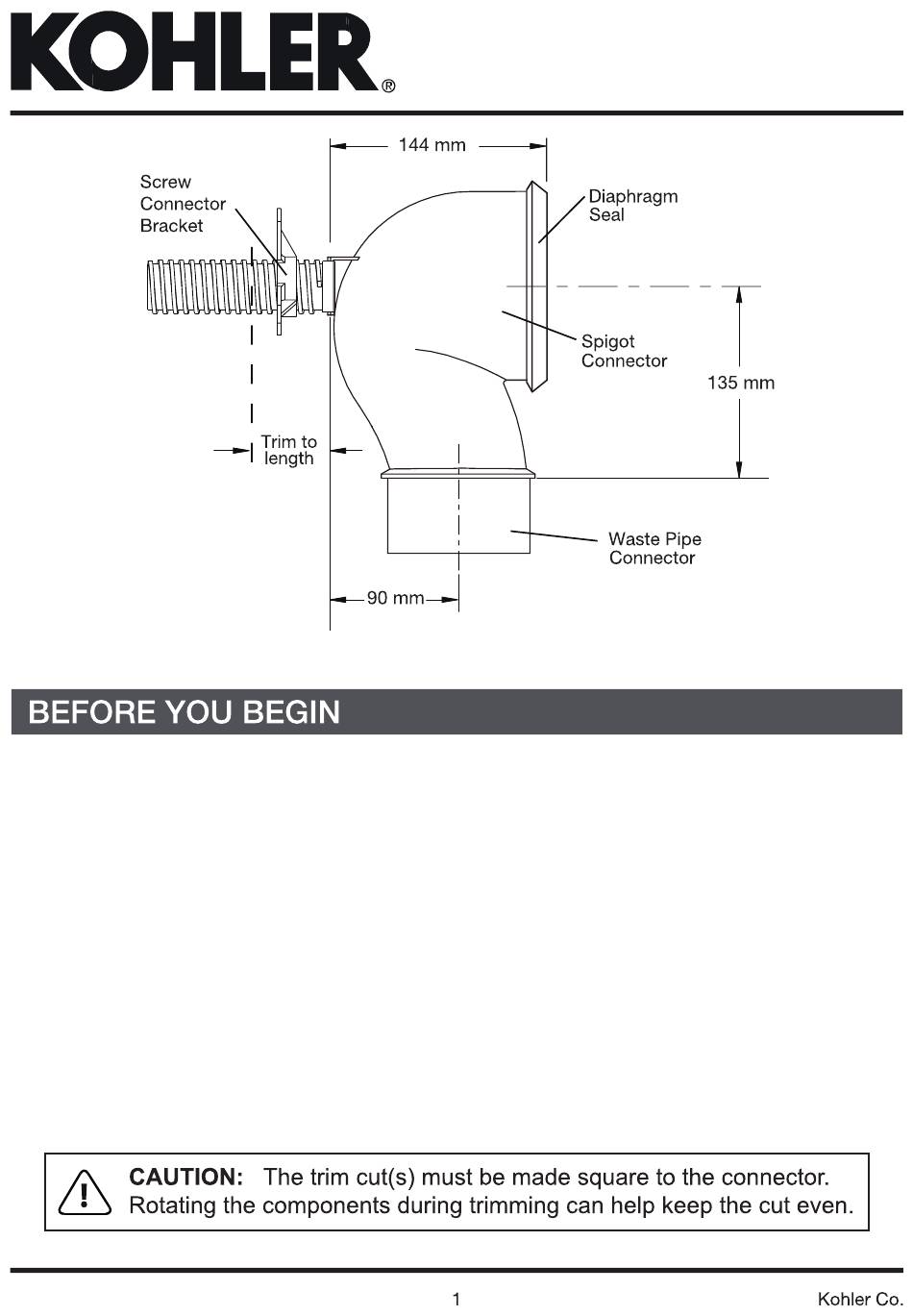

Vario Pan Connector
12504A-NA
Important: Installation of this Vario Connector must be done in accordance with
AS/NZS3500.1.
This connector must be installed with a pan collar (straight or offset). Your plumber
can provide this if it is not supplied.
The Kohler Vario Pan Connector can be used for S-trap toilet pan installations. For
pans with a P-trap outlet, it converts the toilet pan from a P-trap to S-trap.
Depending on the pan geometry, this Vario Pan Connector is suitable for set-outs
ranging from 90mm to ≈140mm with a 20mm offset pan collar.
Ensure to maintain a minimum of 30mm overlap between the pan spigot and the
Diaphragm Seal.
1109493-A02-E
23/09/15
Advertisement
Related Manuals for Kohler 12504A-NA
Summary of Contents for Kohler 12504A-NA
- Page 1 This connector must be installed with a pan collar (straight or offset). Your plumber can provide this if it is not supplied. The Kohler Vario Pan Connector can be used for S-trap toilet pan installations. For pans with a P-trap outlet, it converts the toilet pan from a P-trap to S-trap.
- Page 2 Insert the waste pipe connector into the pan collar. It may be necessary to trim the waste pipe connector by approx 15mm so that it fully engages the pan collar. Check the fit of the assembled connector + pan collar between pan, wall and waste pipe.
