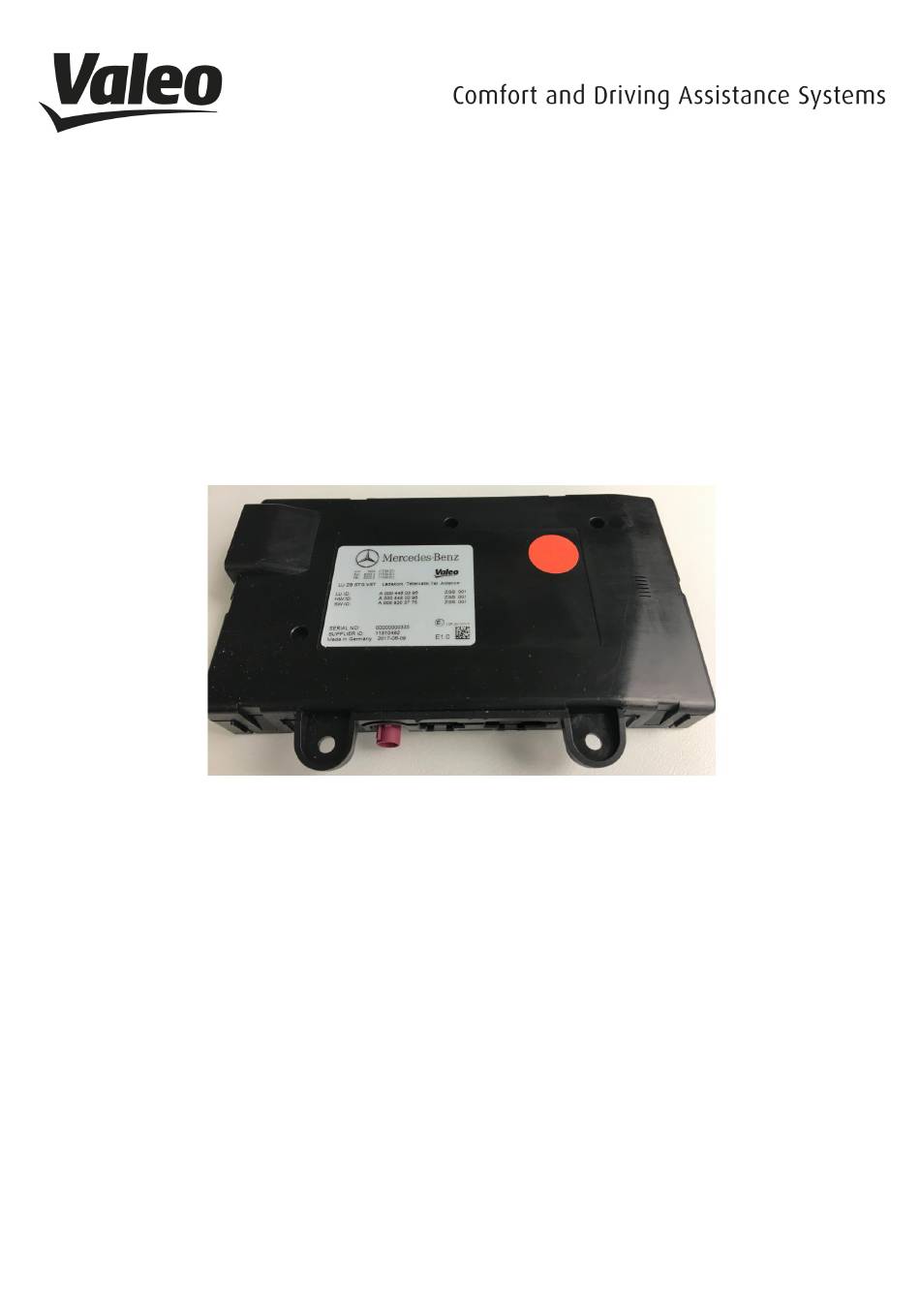

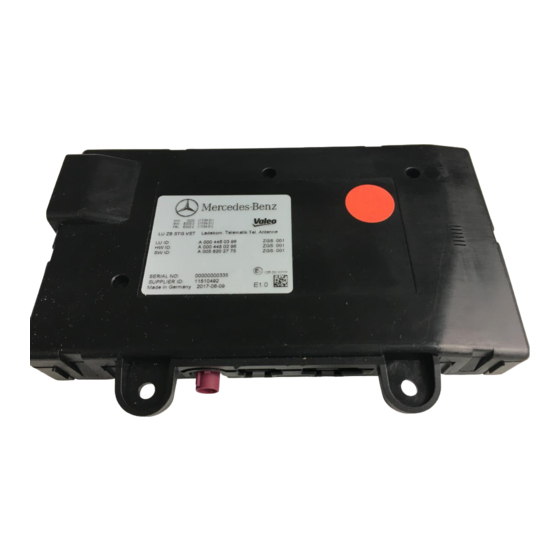

Valeo WMI2-W167 User Manual

Wireless module interface
Hide thumbs
Table of Contents

Advertisement

Quick Links

(wireless module interface)
Valeo Peiker product IDs:
WMI2-W167
WMI2-W205
WMI2-W205-M1
WMI2-W167-M1
WMI2-W167-M2
WMI2-W167-M3
Revision:
Date:
________________________________________________________________________________________________________________________________
WMI 2
User manual
2609-090-203-51 (trucks basic)
2609-090-303-51 (W205)
2609-090-353-51 (W205 w/o)
2609-090-403-51 (W167)
2609-090-453-51 (W167 w/o)
2609-090-553-51 (W167 Fd)
1.5
Jan 2018
VALEO – Product Line Valeo peiker Telematics - www.valeo.de
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WMI2-W167 and is the answer not in the manual?

Questions and answers

Summary of Contents for Valeo WMI2-W167

  • Page 1 Valeo Peiker product IDs: WMI2-W167 2609-090-203-51 (trucks basic) WMI2-W205 2609-090-303-51 (W205) WMI2-W205-M1 2609-090-353-51 (W205 w/o) WMI2-W167-M1 2609-090-403-51 (W167) WMI2-W167-M2 2609-090-453-51 (W167 w/o) WMI2-W167-M3 2609-090-553-51 (W167 Fd) Revision: Date: Jan 2018 ________________________________________________________________________________________________________________________________ Page 1 VALEO – Product Line Valeo peiker Telematics - www.valeo.de...
  • Page 2 Revision History Date Revision Name Comment 13.12.2017 1.0 Initial document 15.12.2017 1.2 19.12.2017 1.3 Update serial numbers 19.12.2017 1.4 Update point 3 & 4 11.1.2018 Update point 2.3.1 ________________________________________________________________________________________________________________________________ Page 2 VALEO – Product Line Valeo peiker Telematics - www.valeo.de...

  • Page 3: Table Of Contents

    Safety Recommendations according to EN62368-1 ................19 RED/FCC/IC Regulatory Notices Modifications ................. 20 Modifications ..........................20 Interference ........................... 20 FCC Class B Digital Device ......................20 OEM Responsibilties ........................21 ________________________________________________________________________________________________________________________________ Page 3 VALEO – Product Line Valeo peiker Telematics - www.valeo.de...

  • Page 4: Introduction

    INTRODUCTION SCOPE This document gives an overview about electrical, mechanical and functional details of the Valeo peiker WMI 2 wireless charging modules. AUDIENCE Information to integrate the module in some other applications. CONTACT INFORMATION, SUPPORT peiker acustic GmbH Max-Planck Street 32 D-61381 Friedrichsdorf / Ts.

  • Page 5: Product Overview

    The WMI is using frequency modulation of the 125kHz to send information to the  receiver. o Concerning wireless charging there is no other communication channel. 2.3.2 Data Rates  CAN: - 250kBaud ________________________________________________________________________________________________________________________________ Page 5 VALEO – Product Line Valeo peiker Telematics - www.valeo.de...
  • Page 6  Only vehicular environment The system is installed only in vehicles 2.3.8 Power  Nominal voltage: 12V  Max. current consumption: 0,8A  Operating Voltage Range: 8V – 16V ________________________________________________________________________________________________________________________________ Page 6 VALEO – Product Line Valeo peiker Telematics - www.valeo.de...

  • Page 7: Features

    To support NFC telematics functions including identification and data transmission to the vehicle head unit, for example for data exchange with NFC vCards. ________________________________________________________________________________________________________________________________ Page 7 VALEO – Product Line Valeo peiker Telematics - www.valeo.de...
  • Page 8 PTA14 detected. Passive state: Low level PTE14 / Default state: High level SW-MODE PTE14 Alternative state: Low level Note: Pins should be grounded when not used in design. ________________________________________________________________________________________________________________________________ Page 8 VALEO – Product Line Valeo peiker Telematics - www.valeo.de...

  • Page 9: Equipment List

    EQUIPMENT LIST: Wireless Charger USB Can Adapte Chargeable Wireless Medium NXP LDO 1500 Test Receiver or AVID Test Receiver Voltmeter & Power Supply System Harness ________________________________________________________________________________________________________________________________ Page 9 VALEO – Product Line Valeo peiker Telematics - www.valeo.de...

  • Page 10: Technical Setup

    Connect the USB Can adapter with a computer. Turn on the power supply system. Note: The LEDs of the CAN-Adapter are going on and off several times. This process is uncritical ________________________________________________________________________________________________________________________________ Page 10 VALEO – Product Line Valeo peiker Telematics - www.valeo.de...

  • Page 11: Computer Setup

    Note: Ideal is the use of a Windows 7 as 64-bit system Open the Computer >> Connection Open the Windows7_OS hard drive Open the WMI folder Install Busmaster driver Go back into WMI and open the EVTP_test_tool_folder ________________________________________________________________________________________________________________________________ Page 11 VALEO – Product Line Valeo peiker Telematics - www.valeo.de...
  • Page 12 Note for StartUart CanProxy_WMI_Cars: Depending on the device (W167 (trucks), W167-M1 (cars), 205 (cars) etc...) please use either the cars or the truck files Note for UartCanProxyConfigWMI_Cars: Please use the newest version ________________________________________________________________________________________________________________________________ Page 12 VALEO – Product Line Valeo peiker Telematics - www.valeo.de...
  • Page 13 Depending on the device, please start with StartUartProxy as 2nd Please start ttermpro as last All Programs stay unclosed Open the tools successively in following order: StartEvtpProxyWMI StartUartCanProxy ttermrpo and press OK afterwards ________________________________________________________________________________________________________________________________ Page 13 VALEO – Product Line Valeo peiker Telematics - www.valeo.de...
  • Page 14 Click on navigation and afterwards open the macro menu Open Send_clamp_15ttl Attention: wait until the third line appears ________________________________________________________________________________________________________________________________ Page 14 VALEO – Product Line Valeo peiker Telematics - www.valeo.de...
  • Page 15 Deactivate "Activate_Sleep_Mode.ttl" Attention: You can ignore the error message “Wireless charging is off! If the error message "No EVTP response!"appears, it means that the device is not responding ________________________________________________________________________________________________________________________________ Page 15 VALEO – Product Line Valeo peiker Telematics - www.valeo.de...
  • Page 16 Click on navigation, open the Macro Display, and click on Finish Click on navigation and open macro menu. Click on Activate_Sleep_Mode.ttl. You can now close all Windows and remove the Wireless Charger ________________________________________________________________________________________________________________________________ Page 16 VALEO – Product Line Valeo peiker Telematics - www.valeo.de...

  • Page 17: Operating Modes

    [10.] Since V1 is off, EN can only operate as open-drain output in Sleep mode [11.] Determined by the setting of bit LHC in the Fail-safe control register ________________________________________________________________________________________________________________________________ Page 17 VALEO – Product Line Valeo peiker Telematics - www.valeo.de...
  • Page 18 The operating mode is selected via bits MC in the Mode Control register, see Table 2.8-2. SPI address of the Mode Control register: 0x01 Table 2.8-2: Mode Control register ________________________________________________________________________________________________________________________________ Page 18 VALEO – Product Line Valeo peiker Telematics - www.valeo.de...
  • Page 19 Fehler! Verweisquelle The SBC operating modes are described in the data sheet of the UJA1131HW/3V3, konnte nicht gefunden werden. , section 7.1.1, page 12. ________________________________________________________________________________________________________________________________ Page 19 VALEO – Product Line Valeo peiker Telematics - www.valeo.de...

  • Page 20: Safety Recommendations According To En62368-1

    SAFETY RECOMMENDATIONS ACCORDING TO EN62368-1 The WMI2-W167, WMI2-W167-M1, WMI2-W167-M2, WMI2-W167-M3, WMI2-W205, WMI2-W205-M1 devices must be supplied by a limited power source according to EN 62368-1. ________________________________________________________________________________________________________________________________ Page 20 VALEO – Product Line Valeo peiker Telematics - www.valeo.de...

  • Page 21: Modifications

    Le présent appareil WMI2-W167, WMI2-W167-M1, WMI2-W167-M2, WMI2-W167-M3, WMI2- W205, WMI2-W205-M1 est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est...

  • Page 22: Oem Responsibilties

    The systems antenna(s) / coils must be installed such that 20 cm is maintained between the antenna(s) and the body of the user or nearby persons. Power Supply The power supply of the host device embedding a WMI2-W167, WMI2-W167-M1, WMI2- W167-M2, WMI2-W167-M3, WMI2-W205, WMI2-W205-M1 must fulfill the following requirements: o Nominal supply voltage: 12V o Operating voltage range: 8V –...

This manual is also suitable for:

Wmi2-w205Wmi2-w205-m1Wmi2-w167-m1Wmi2-w167-m2Wmi2-w167-m3Wmi 2 series
